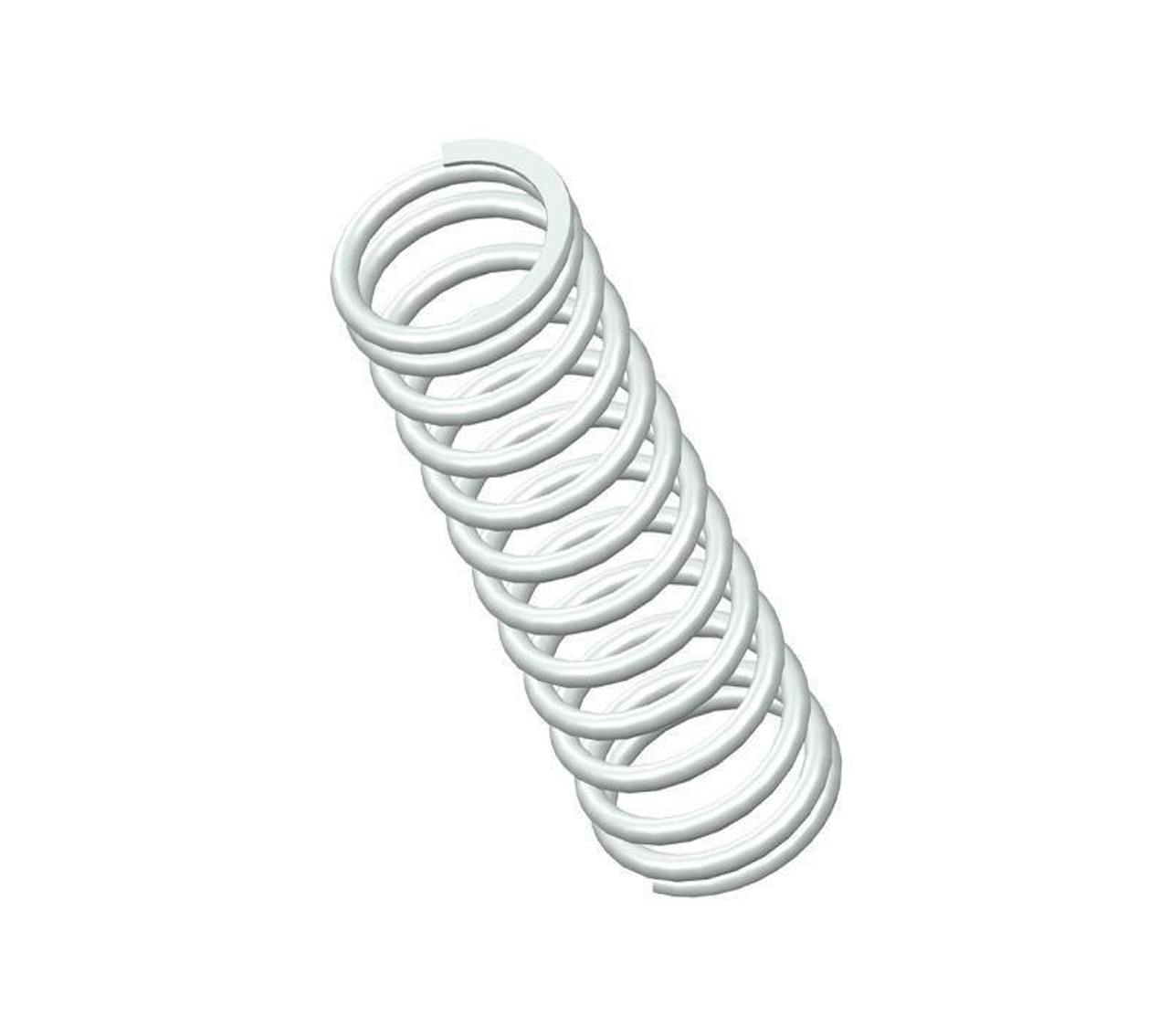

72831SCS - 5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 12.6 coils and closed & ground ends. This spring features an O.D. of 1.46", and an I.D. of 1.148".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72831S
Ends Closed & Ground
Finish None
Free Length 5 in
Inside Diameter 1.148 in
Material 302/304 Stainless Steel
Outside Diameter 1.46 in
Part Type Standard
Rate 31 lbs/in
SKU 72831SCS
Solid Length 1.97 in
Suggested Max Deflection 2.2 in
Suggested Max Load 69 lbf
Total Coils 12.6
Wire Diameter 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72831S
Ends Closed & Ground
Finish None
Free Length 127 mm
Inside Diameter 29.16 mm
Material 302/304 Stainless Steel
Outside Diameter 37.08 mm
Part Type Standard
Rate 5.43 N/mm
SKU 72831SCS
Solid Length 50.04 mm
Suggested Max Deflection 55.88 mm
Suggested Max Load 306.91 N
Total Coils 12.6
Wire Diameter 3.96 mm
The 72831SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.156" diameter 302/304 stainless steel, the 72831S spring design exhibits reliable strength across its 12.6 active coils, withstanding repeated compression cycles with a maximum load of 69 lbf without succumbing to fatigue.

We manufacture the 72831S design to provide a compression spring that is 5" long at rest and provides a consistent rate of 31 lbs/in along its recommended maximum of 2.2" deflection. For best results, your application should fully accommodate the inner (1.148") and outer (1.46") diameters of this spring and be designed for its closed & ground end configuration.
