Century Spring

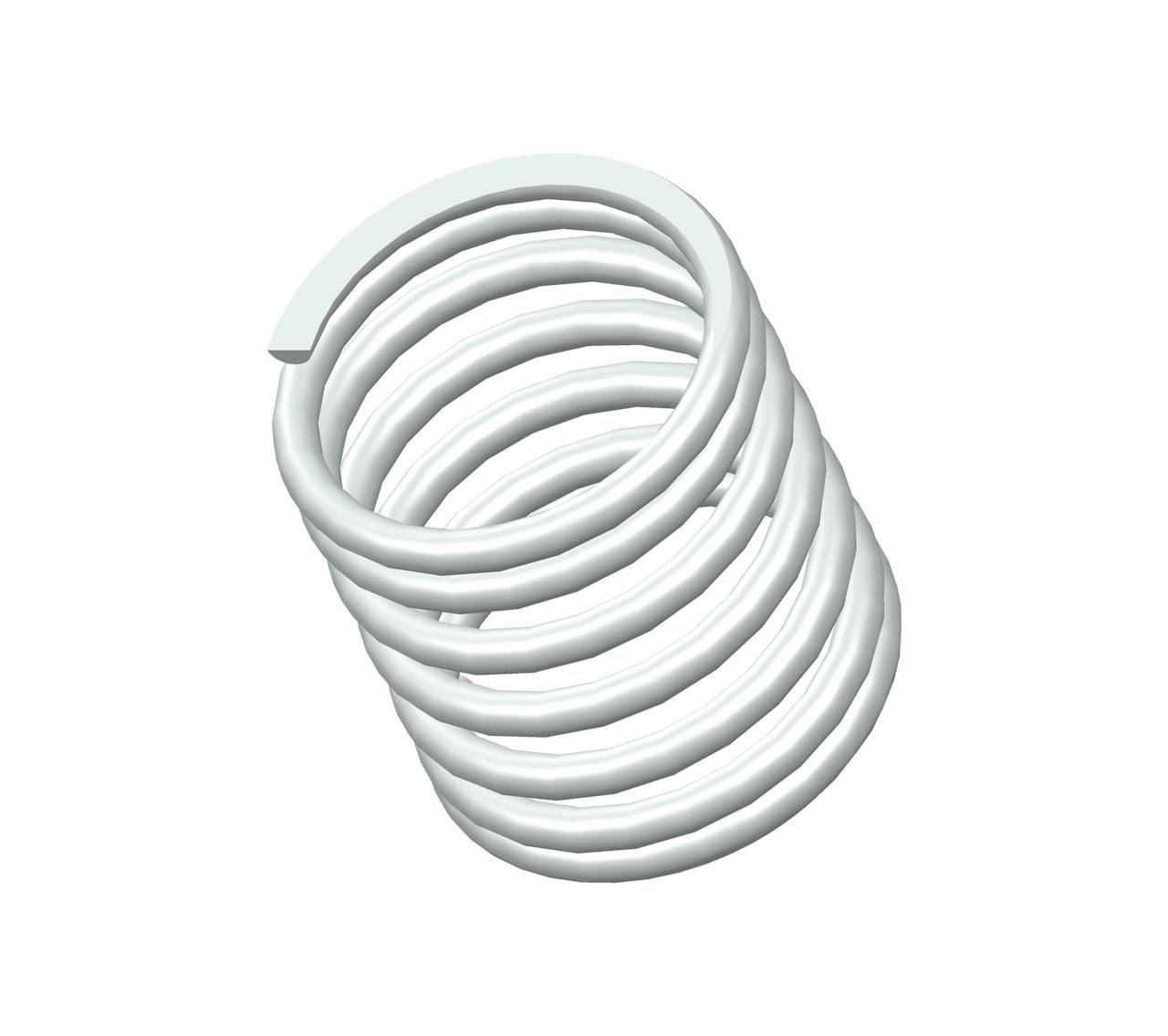

72723SCS - 3" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 0.913".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72723S
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 0.913 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 79 lbs/in
SKU 72723SCS
Solid Length 1.48 in
Suggested Max Deflection 1 in
Suggested Max Load 81 lbf
Total Coils 9.5
Wire Diameter 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72723S
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 23.19 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 13.83 N/mm
SKU 72723SCS
Solid Length 37.59 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 360.29 N
Total Coils 9.5
Wire Diameter 3.96 mm
The 72723SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.156" diameter 302/304 stainless steel, the 72723S spring design exhibits reliable strength across its 9.5 active coils, withstanding repeated compression cycles with a maximum load of 81 lbf without succumbing to fatigue.

We manufacture the 72723S design to provide a compression spring that is 3" long at rest and provides a consistent rate of 79 lbs/in along its recommended maximum of 1" deflection. For best results, your application should fully accommodate the inner (0.913") and outer (1.225") diameters of this spring and be designed for its closed & ground end configuration.
