72709CS - 1" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

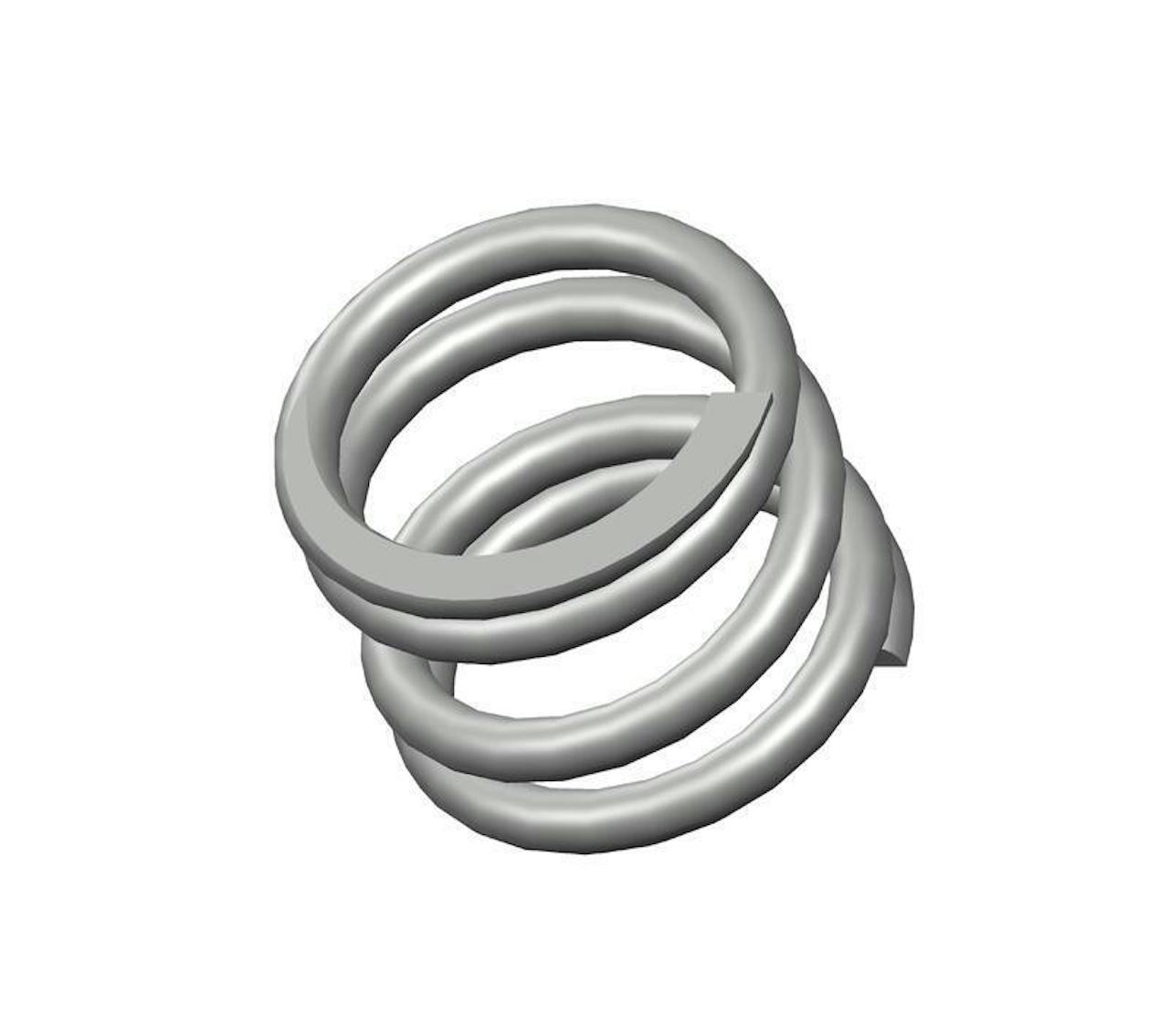

Compression spring manufactured from music wire with 4 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 0.929".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72709
Ends Closed & Ground
Finish None
Free Length 1 in
Inside Diameter 0.929 in
Material Music Wire
Outside Diameter 1.225 in
Part Type Standard
Rate 270 lbs/in
SKU 72709CS
Solid Length 0.59 in
Suggested Max Deflection 0.41 in
Suggested Max Load 110 lbf
Total Coils 4
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72709
Ends Closed & Ground
Finish None
Free Length 25.4 mm
Inside Diameter 23.6 mm
Material Music Wire
Outside Diameter 31.12 mm
Part Type Standard
Rate 47.28 N/mm
SKU 72709CS
Solid Length 14.99 mm
Suggested Max Deflection 10.41 mm
Suggested Max Load 489.28 N
Total Coils 4
Wire Diameter 3.76 mm
The 72709CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.148" diameter music wire, the 72709 spring design exhibits reliable strength across its 4 active coils, withstanding repeated compression cycles with a maximum load of 110 lbf without succumbing to fatigue.

We manufacture the 72709 design to provide a compression spring that is 1" long at rest and provides a consistent rate of 270 lbs/in along its recommended maximum of 0.41" deflection. For best results, your application should fully accommodate the inner (0.929") and outer (1.225") diameters of this spring and be designed for its closed & ground end configuration.
