Century Spring

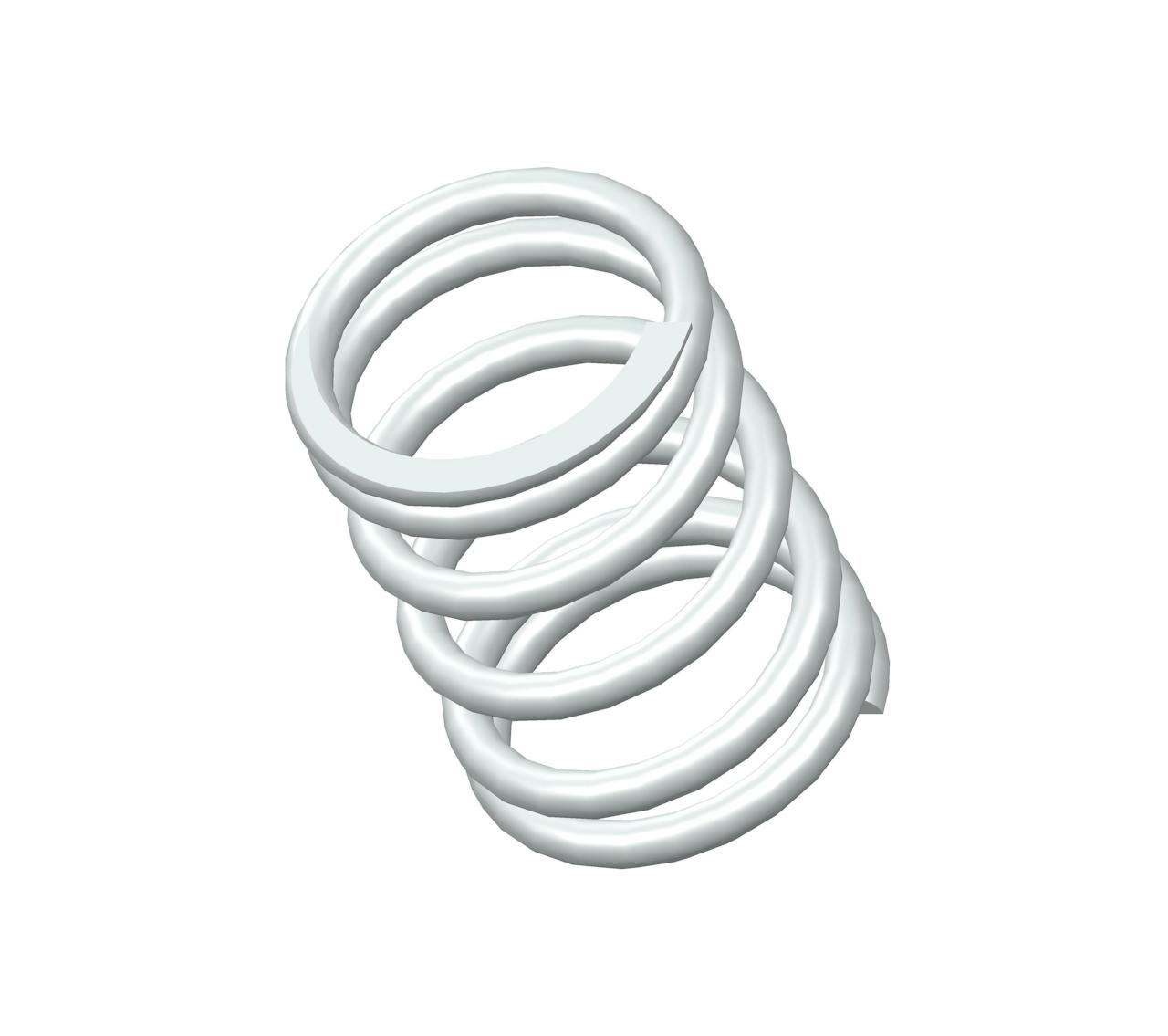

72698SCS - 1.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 0.955".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72698S
Ends Closed & Ground
Finish None
Free Length 1.75 in
Inside Diameter 0.955 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 78 lbs/in
SKU 72698SCS
Solid Length 0.81 in
Suggested Max Deflection 0.71 in
Suggested Max Load 55 lbf
Total Coils 6
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72698S
Ends Closed & Ground
Finish None
Free Length 44.45 mm
Inside Diameter 24.26 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 13.66 N/mm
SKU 72698SCS
Solid Length 20.57 mm
Suggested Max Deflection 18.03 mm
Suggested Max Load 244.64 N
Total Coils 6
Wire Diameter 3.43 mm
The compression spring 72698SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72698S compression spring design exhibits exceptional tensile strength and resilience.

The 72698S design is manufactured with a free length of 1.75", with an outer diameter of 1.225", an inner diameter of 0.955", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 78 lbs/in.

The 72698SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72698S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
