72698CS - 1.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

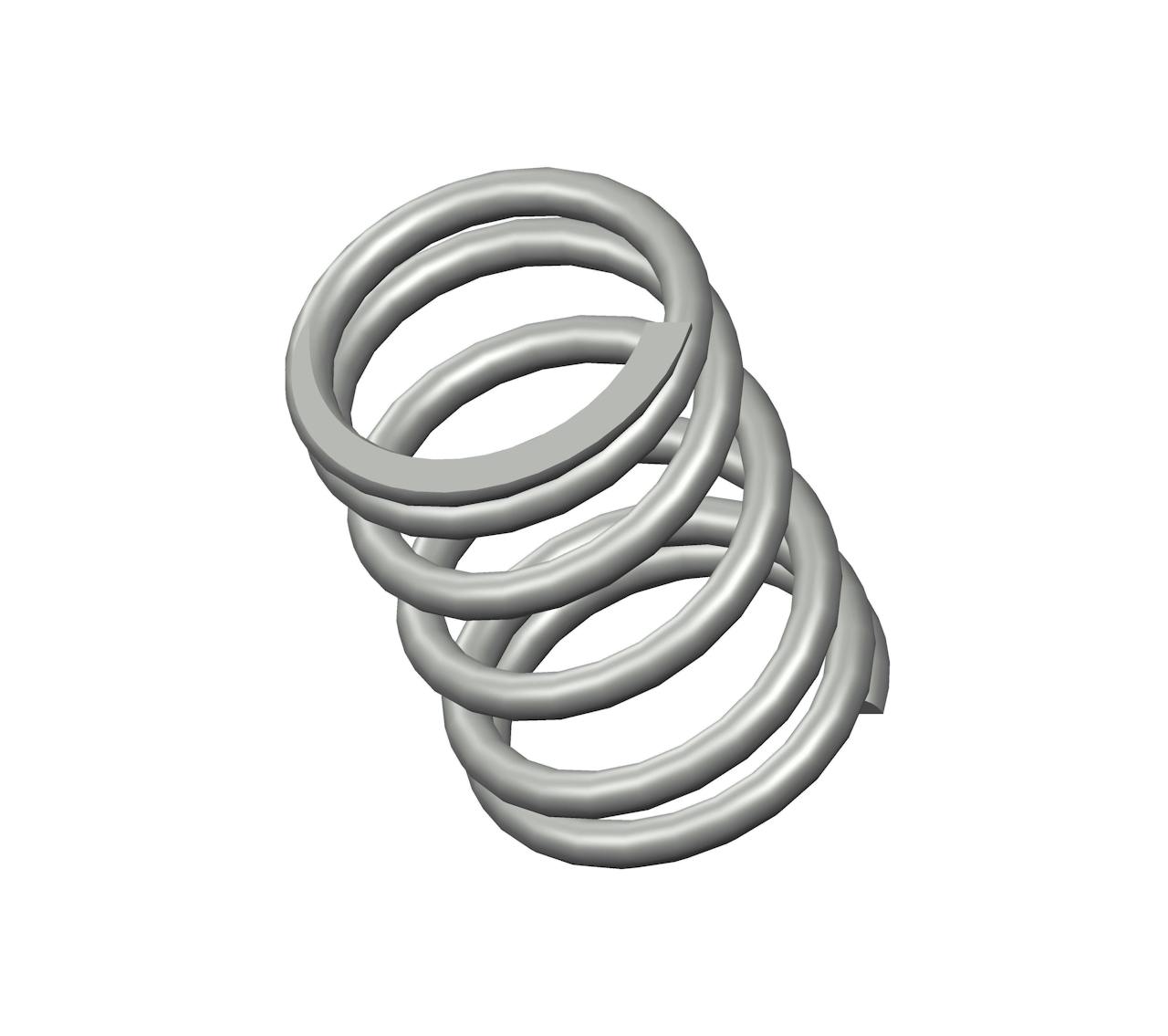

Compression spring manufactured from music wire with 6 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 0.955".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72698
Ends Closed & Ground
Finish None
Free Length 1.75 in
Inside Diameter 0.955 in
Material Music Wire
Outside Diameter 1.225 in
Part Type Standard
Rate 92 lbs/in
SKU 72698CS
Solid Length 0.81 in
Suggested Max Deflection 0.93 in
Suggested Max Load 86 lbf
Total Coils 6
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72698
Ends Closed & Ground
Finish None
Free Length 44.45 mm
Inside Diameter 24.26 mm
Material Music Wire
Outside Diameter 31.12 mm
Part Type Standard
Rate 16.11 N/mm
SKU 72698CS
Solid Length 20.57 mm
Suggested Max Deflection 23.62 mm
Suggested Max Load 382.53 N
Total Coils 6
Wire Diameter 3.43 mm
The 72698CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.135" diameter music wire, the 72698 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 86 lbf without succumbing to fatigue.

We manufacture the 72698 design to provide a compression spring that is 1.75" long at rest and provides a consistent rate of 92 lbs/in along its recommended maximum of 0.93" deflection. For best results, your application should fully accommodate the inner (0.955") and outer (1.225") diameters of this spring and be designed for its closed & ground end configuration.
