Century Spring

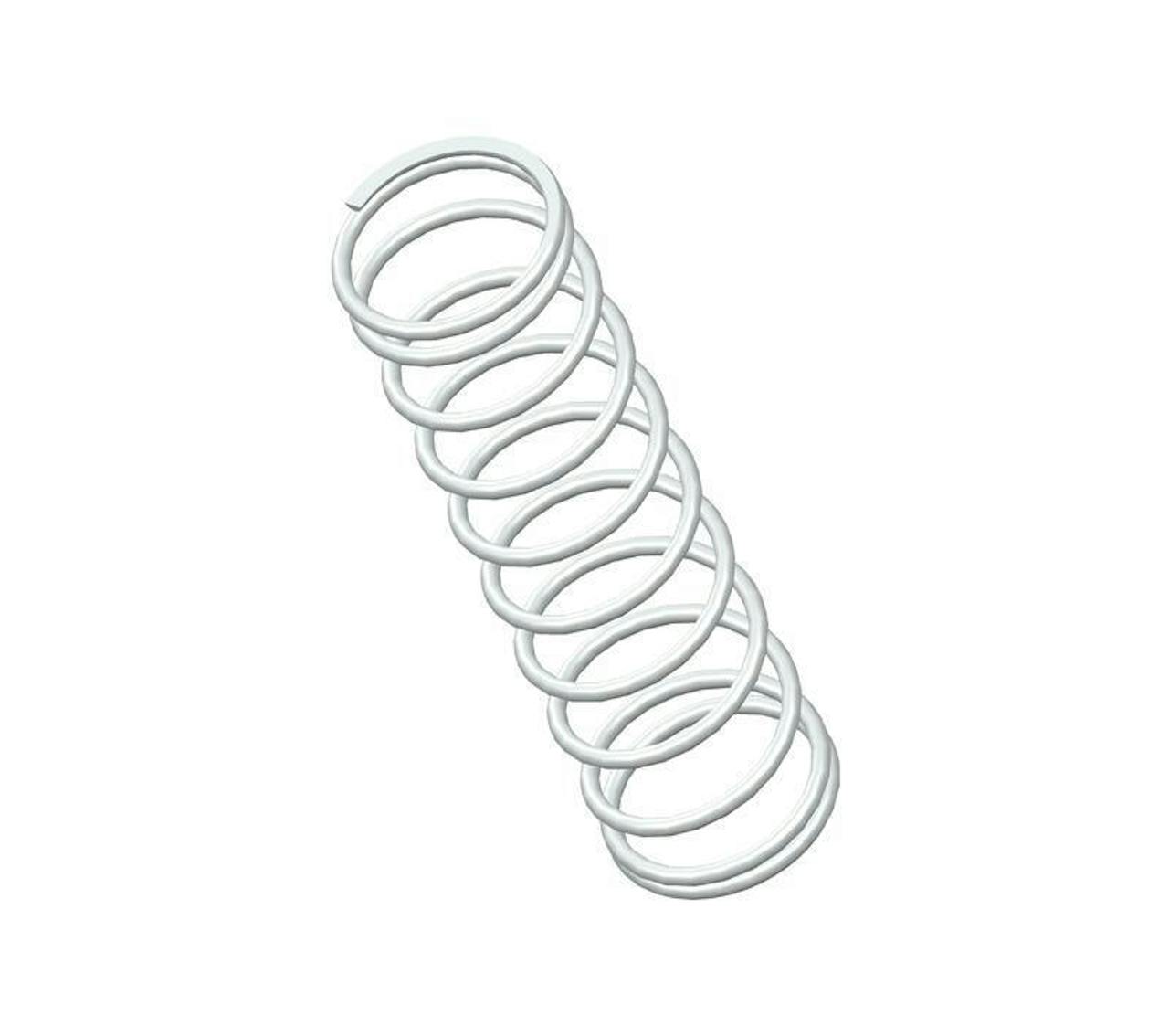

72649SCS - 4.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10.7 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 1.033".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72649S
Ends Closed & Ground
Finish None
Free Length 4.5 in
Inside Diameter 1.033 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 8.1 lbs/in
SKU 72649SCS
Solid Length 1.018 in
Suggested Max Deflection 2.677 in
Suggested Max Load 22 lbf
Total Coils 10.7
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72649S
Ends Closed & Ground
Finish None
Free Length 114.3 mm
Inside Diameter 26.24 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 1.42 N/mm
SKU 72649SCS
Solid Length 25.86 mm
Suggested Max Deflection 68 mm
Suggested Max Load 97.86 N
Total Coils 10.7
Wire Diameter 2.41 mm
The 72649SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.095" diameter 302/304 stainless steel, the 72649S spring design exhibits reliable strength across its 10.7 active coils, withstanding repeated compression cycles with a maximum load of 22 lbf without succumbing to fatigue.

We manufacture the 72649S design to provide a compression spring that is 4.5" long at rest and provides a consistent rate of 8.1 lbs/in along its recommended maximum of 2.677" deflection. For best results, your application should fully accommodate the inner (1.033") and outer (1.225") diameters of this spring and be designed for its closed & ground end configuration.
