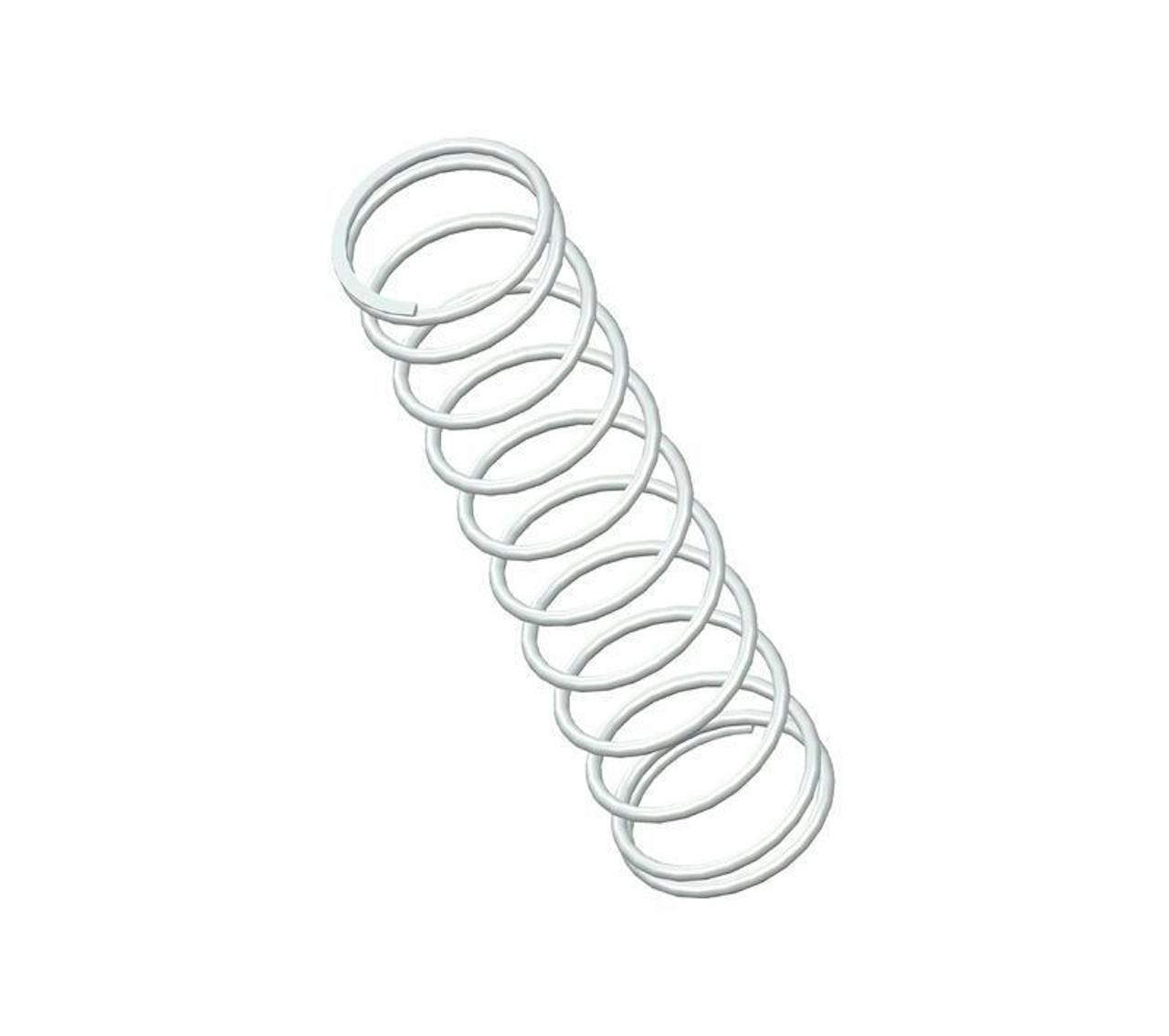

72636SCS - 5" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11.5 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 1.055".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72636S
Ends Closed & Ground
Finish None
Free Length 5 in
Inside Diameter 1.055 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 4.5 lbs/in
SKU 72636SCS
Solid Length 0.98 in
Suggested Max Deflection 3.6 in
Suggested Max Load 16 lbf
Total Coils 11.5
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72636S
Ends Closed & Ground
Finish None
Free Length 127 mm
Inside Diameter 26.8 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 0.79 N/mm
SKU 72636SCS
Solid Length 24.89 mm
Suggested Max Deflection 91.44 mm
Suggested Max Load 71.17 N
Total Coils 11.5
Wire Diameter 2.16 mm
The compression spring 72636SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72636S compression spring design exhibits exceptional tensile strength and resilience.

The 72636S design is manufactured with a free length of 5", with an outer diameter of 1.225", an inner diameter of 1.055", and a total of 11.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.5 lbs/in.

The 72636SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72636S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
