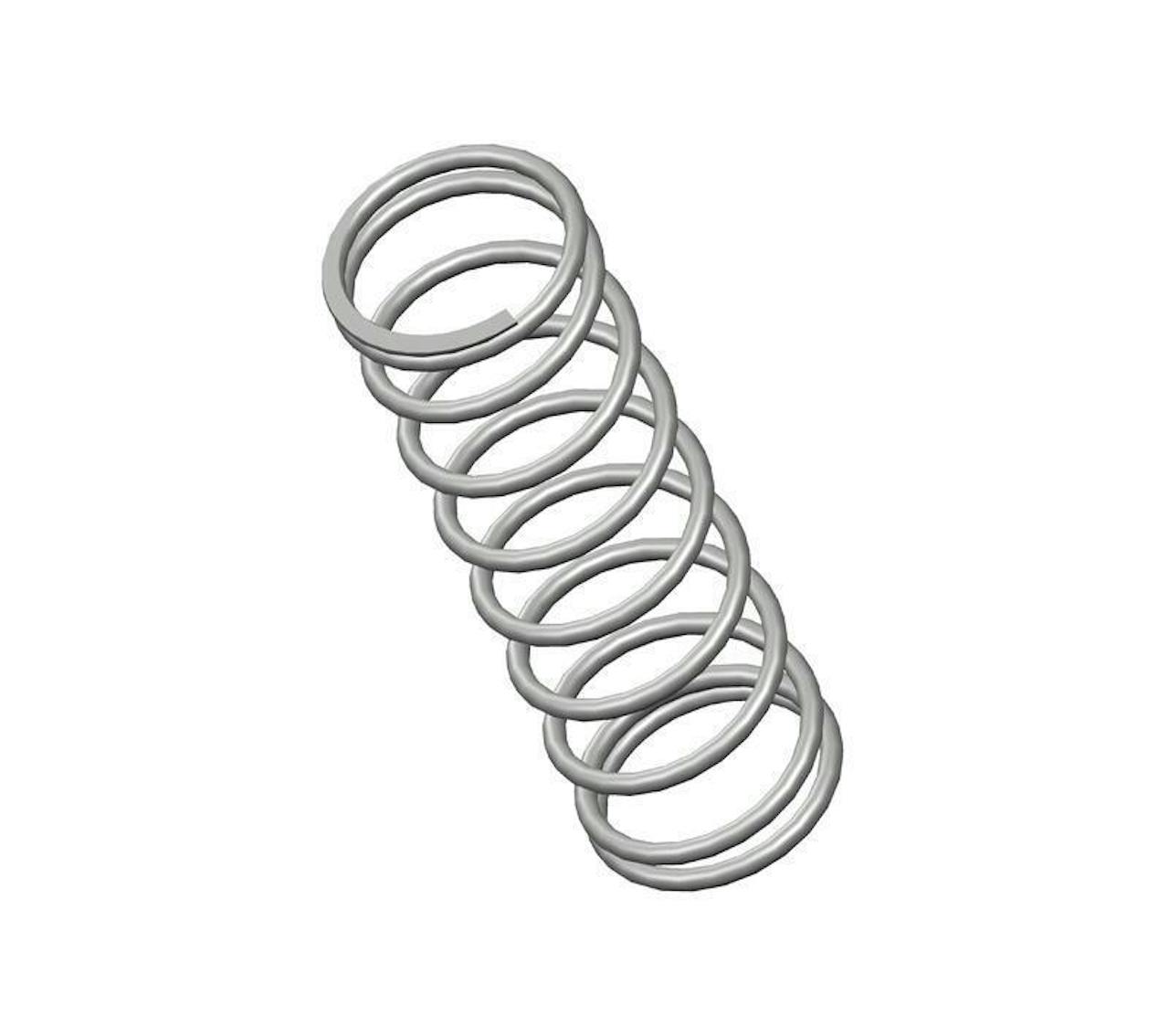

72535CS - 3.5" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 9.75 coils and closed & ground ends. This spring features an O.D. of 1.1", and an I.D. of 0.914".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72535
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 0.914 in
Material Music Wire
Outside Diameter 1.1 in
Part Type Standard
Rate 14 lbs/in
SKU 72535CS
Solid Length 0.91 in
Suggested Max Deflection 2.5 in
Suggested Max Load 34 lbf
Total Coils 9.75
Wire Diameter 0.093 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72535
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 23.22 mm
Material Music Wire
Outside Diameter 27.94 mm
Part Type Standard
Rate 2.45 N/mm
SKU 72535CS
Solid Length 23.11 mm
Suggested Max Deflection 63.5 mm
Suggested Max Load 151.23 N
Total Coils 9.75
Wire Diameter 2.36 mm
The 72535CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.093" diameter music wire, the 72535 spring design exhibits reliable strength across its 9.75 active coils, withstanding repeated compression cycles with a maximum load of 34 lbf without succumbing to fatigue.

We manufacture the 72535 design to provide a compression spring that is 3.5" long at rest and provides a consistent rate of 14 lbs/in along its recommended maximum of 2.5" deflection. For best results, your application should fully accommodate the inner (0.914") and outer (1.1") diameters of this spring and be designed for its closed & ground end configuration.
