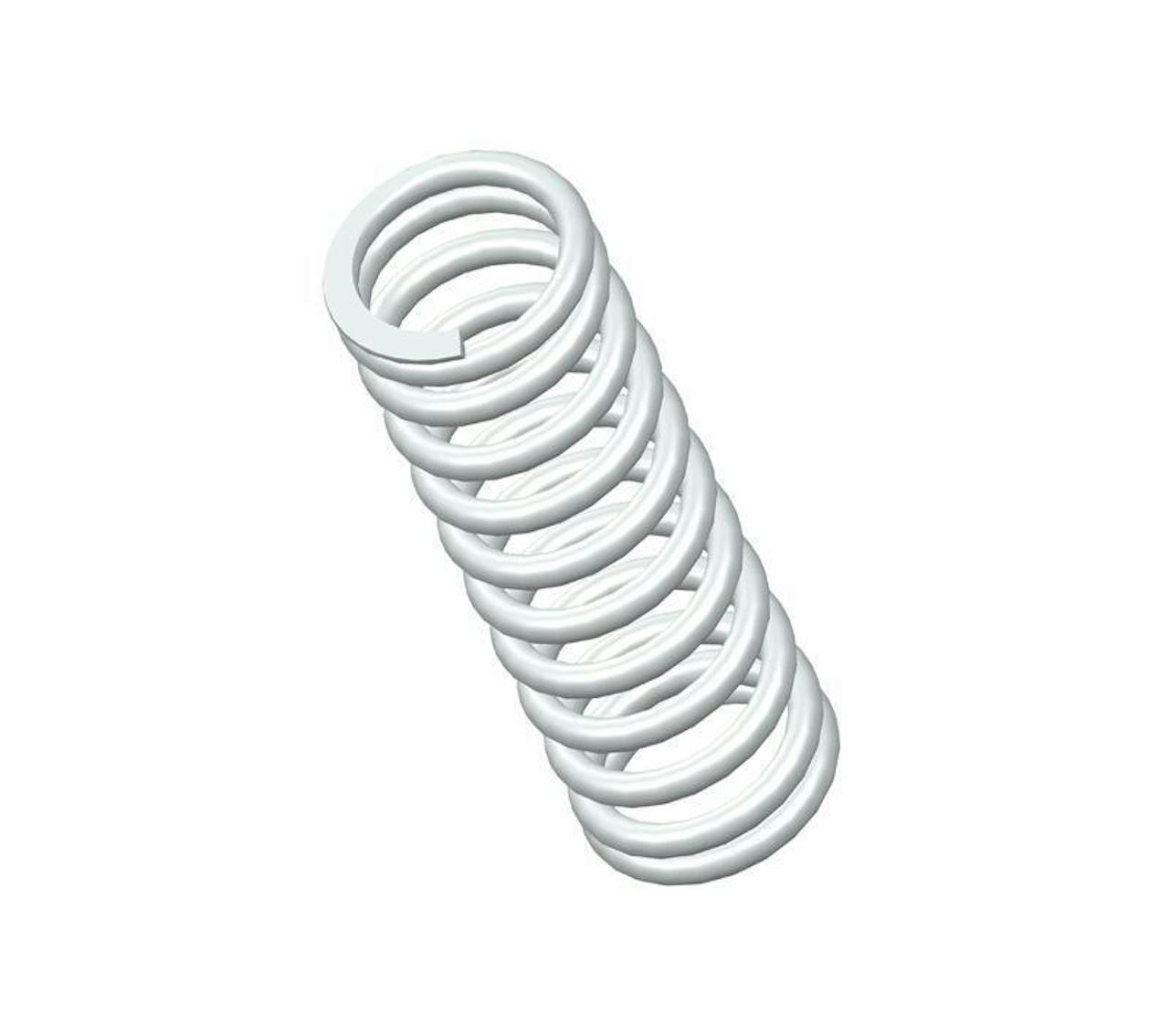

72464SCS - 3" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11.6 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.725".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72464S
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 0.725 in
Material 302/304 Stainless Steel
Outside Diameter 0.975 in
Part Type Standard
Rate 51 lbs/in
SKU 72464SCS
Solid Length 1.45 in
Suggested Max Deflection 1.1 in
Suggested Max Load 57 lbf
Total Coils 11.6
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72464S
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 18.42 mm
Material 302/304 Stainless Steel
Outside Diameter 24.77 mm
Part Type Standard
Rate 8.93 N/mm
SKU 72464SCS
Solid Length 36.83 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 253.54 N
Total Coils 11.6
Wire Diameter 3.18 mm
The 72464SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.125" diameter 302/304 stainless steel, the 72464S spring design exhibits reliable strength across its 11.6 active coils, withstanding repeated compression cycles with a maximum load of 57 lbf without succumbing to fatigue.

We manufacture the 72464S design to provide a compression spring that is 3" long at rest and provides a consistent rate of 51 lbs/in along its recommended maximum of 1.1" deflection. For best results, your application should fully accommodate the inner (0.725") and outer (0.975") diameters of this spring and be designed for its closed & ground end configuration.
