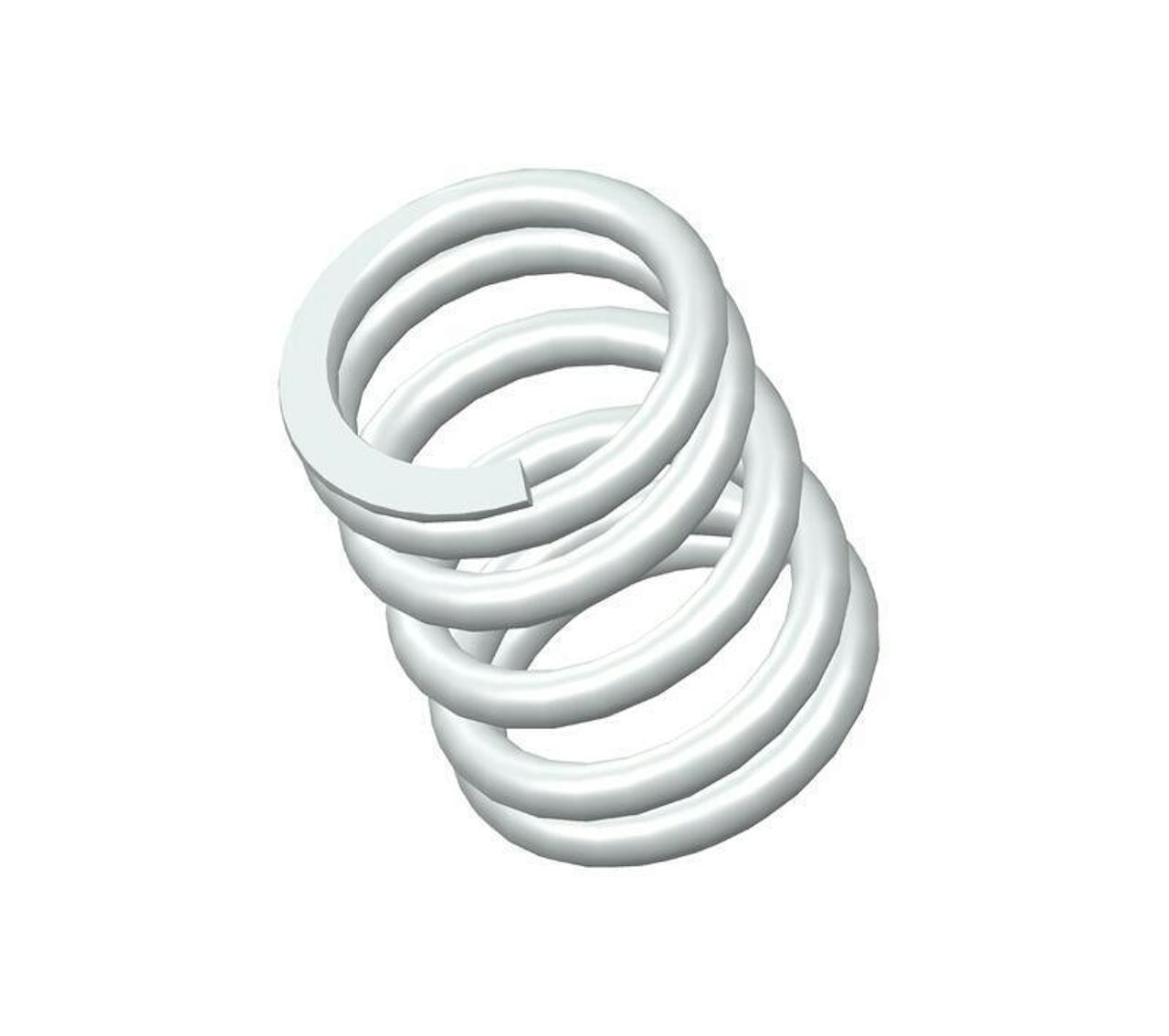

72457SCS - 1.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 5.63 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.725".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72457S
Ends Closed & Ground
Finish None
Free Length 1.25 in
Inside Diameter 0.725 in
Material 302/304 Stainless Steel
Outside Diameter 0.975 in
Part Type Standard
Rate 132 lbs/in
SKU 72457SCS
Solid Length 0.7 in
Suggested Max Deflection 0.43 in
Suggested Max Load 57 lbf
Total Coils 5.63
Wire Diameter 0.125 in
The compression spring 72457SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72457S compression spring design exhibits exceptional tensile strength and resilience.

The 72457S design is manufactured with a free length of 1.25", with an outer diameter of 0.975", an inner diameter of 0.725", and a total of 5.63 coils, expertly designed to deliver consistent compression characteristics including a rate of 132 lbs/in.

The 72457SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72457S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
