Century Spring

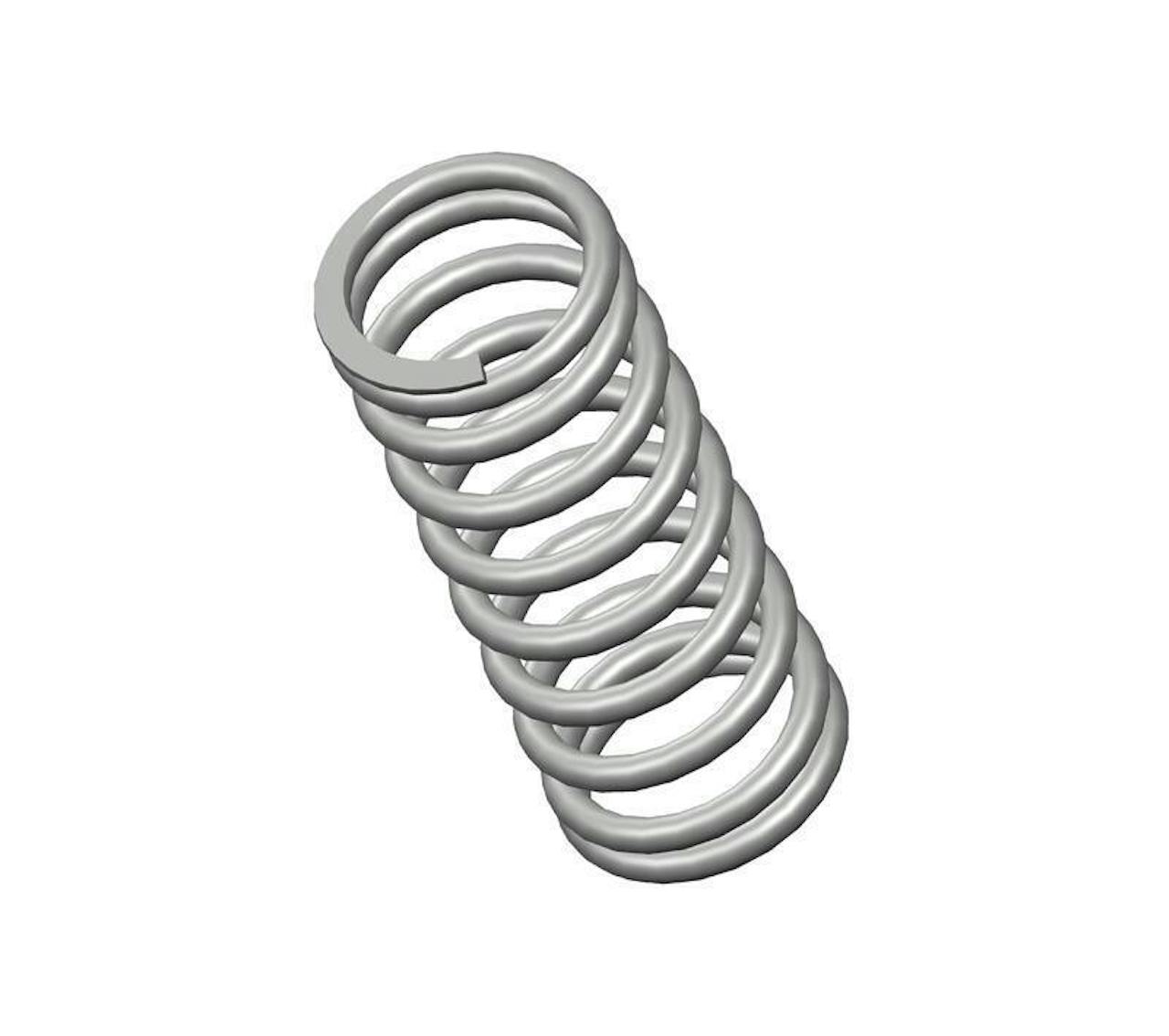

72443CS - 2.5" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 9.63 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.745".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72443
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 0.745 in
Material Music Wire
Outside Diameter 0.975 in
Part Type Standard
Rate 52 lbs/in
SKU 72443CS
Solid Length 1.11 in
Suggested Max Deflection 1.3 in
Suggested Max Load 68 lbf
Total Coils 9.63
Wire Diameter 0.115 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72443
Ends Closed & Ground
Finish None
Free Length 63.5 mm
Inside Diameter 18.92 mm
Material Music Wire
Outside Diameter 24.77 mm
Part Type Standard
Rate 9.11 N/mm
SKU 72443CS
Solid Length 28.19 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 302.46 N
Total Coils 9.63
Wire Diameter 2.92 mm
The 72443 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 72443CS compression spring is designed with a free length of 2.25" total of 8.75 coils, and a rate of 50 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 72443 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
