72432CS - 1.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

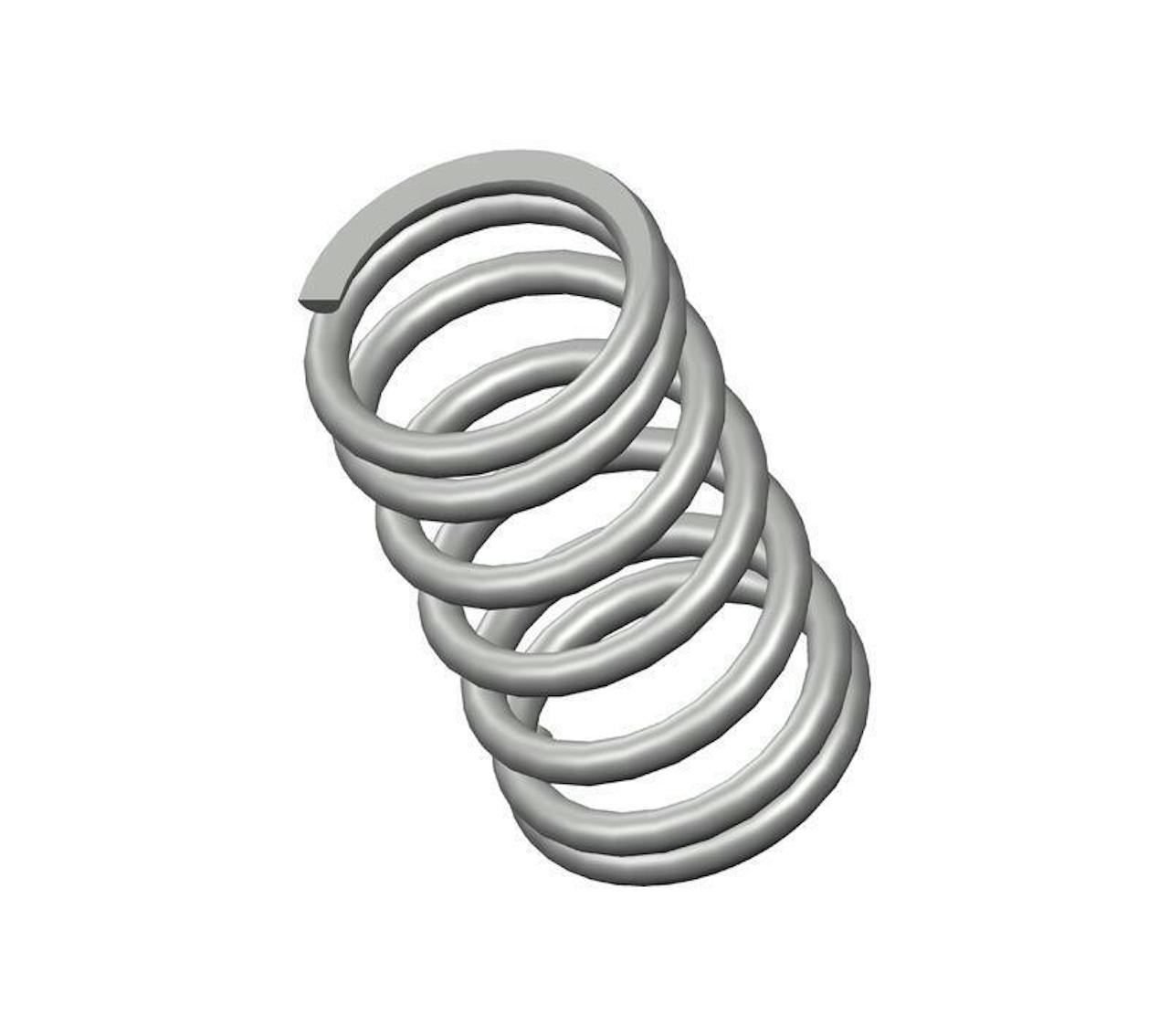

Compression spring manufactured from music wire with 7 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.751".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72432
Ends Closed & Ground
Finish None
Free Length 1.75 in
Inside Diameter 0.751 in
Material Music Wire
Outside Diameter 0.975 in
Part Type Standard
Rate 71 lbs/in
SKU 72432CS
Solid Length 0.78 in
Suggested Max Deflection 0.89 in
Suggested Max Load 63 lbf
Total Coils 7
Wire Diameter 0.112 in
The compression spring 72432CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 72432 compression spring design exhibits exceptional tensile strength and resilience.

The 72432 design is manufactured with a free length of 1.75", with an outer diameter of 0.975", an inner diameter of 0.751", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 71 lbs/in.

The 72432CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72432 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
