Century Spring

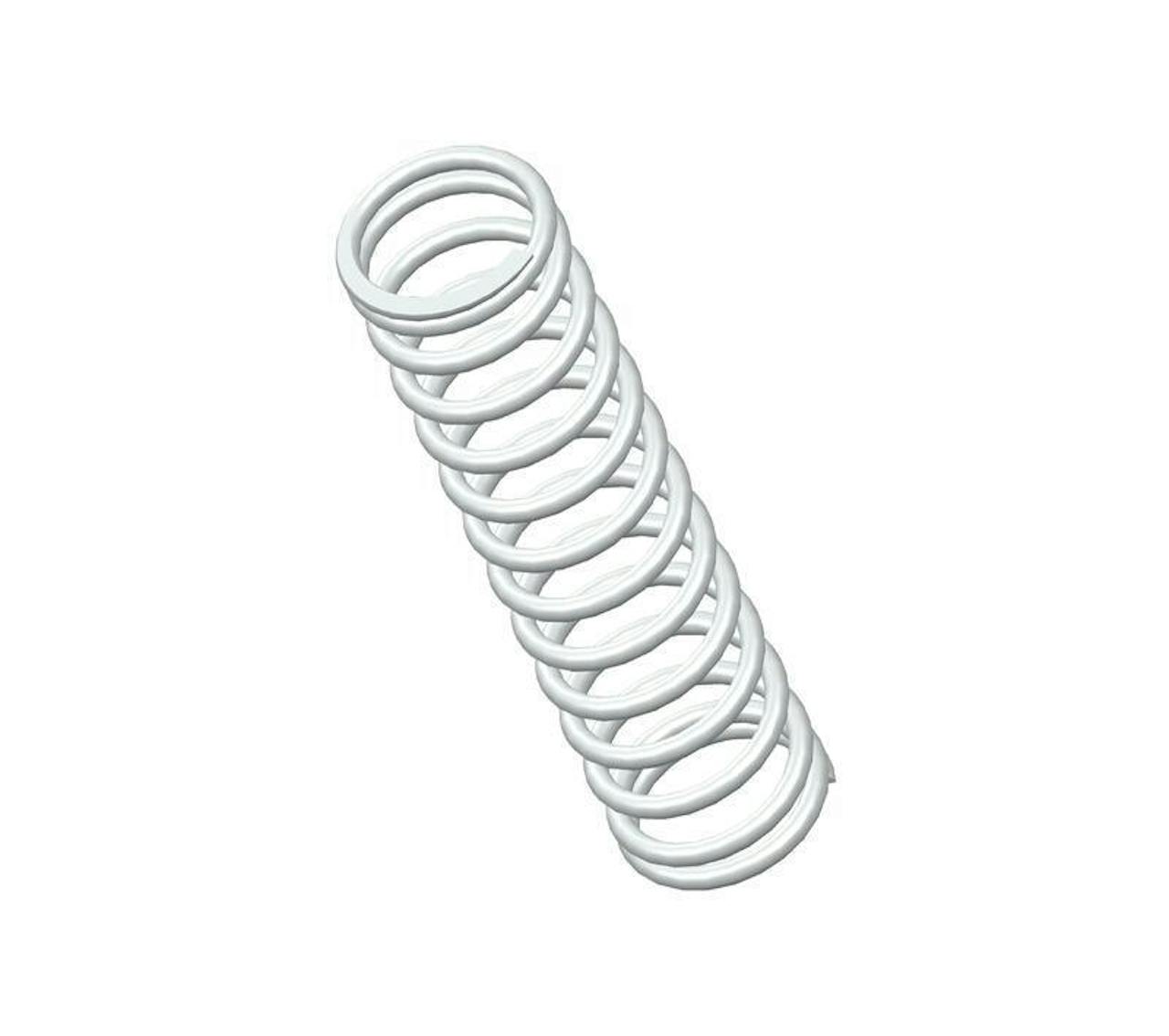

72426SCS - 4" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 13.9 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.765".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72426S
Ends Closed & Ground
Finish None
Free Length 4 in
Inside Diameter 0.765 in
Material 302/304 Stainless Steel
Outside Diameter 0.975 in
Part Type Standard
Rate 19 lbs/in
SKU 72426SCS
Solid Length 1.46 in
Suggested Max Deflection 1.9 in
Suggested Max Load 36 lbf
Total Coils 13.9
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72426S
Ends Closed & Ground
Finish None
Free Length 101.6 mm
Inside Diameter 19.43 mm
Material 302/304 Stainless Steel
Outside Diameter 24.77 mm
Part Type Standard
Rate 3.33 N/mm
SKU 72426SCS
Solid Length 37.08 mm
Suggested Max Deflection 48.26 mm
Suggested Max Load 160.13 N
Total Coils 13.9
Wire Diameter 2.67 mm
The 72426S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 72426SCS compression spring is designed with a free length of 4" total of 13.9 coils, and a rate of 22 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 72426S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
