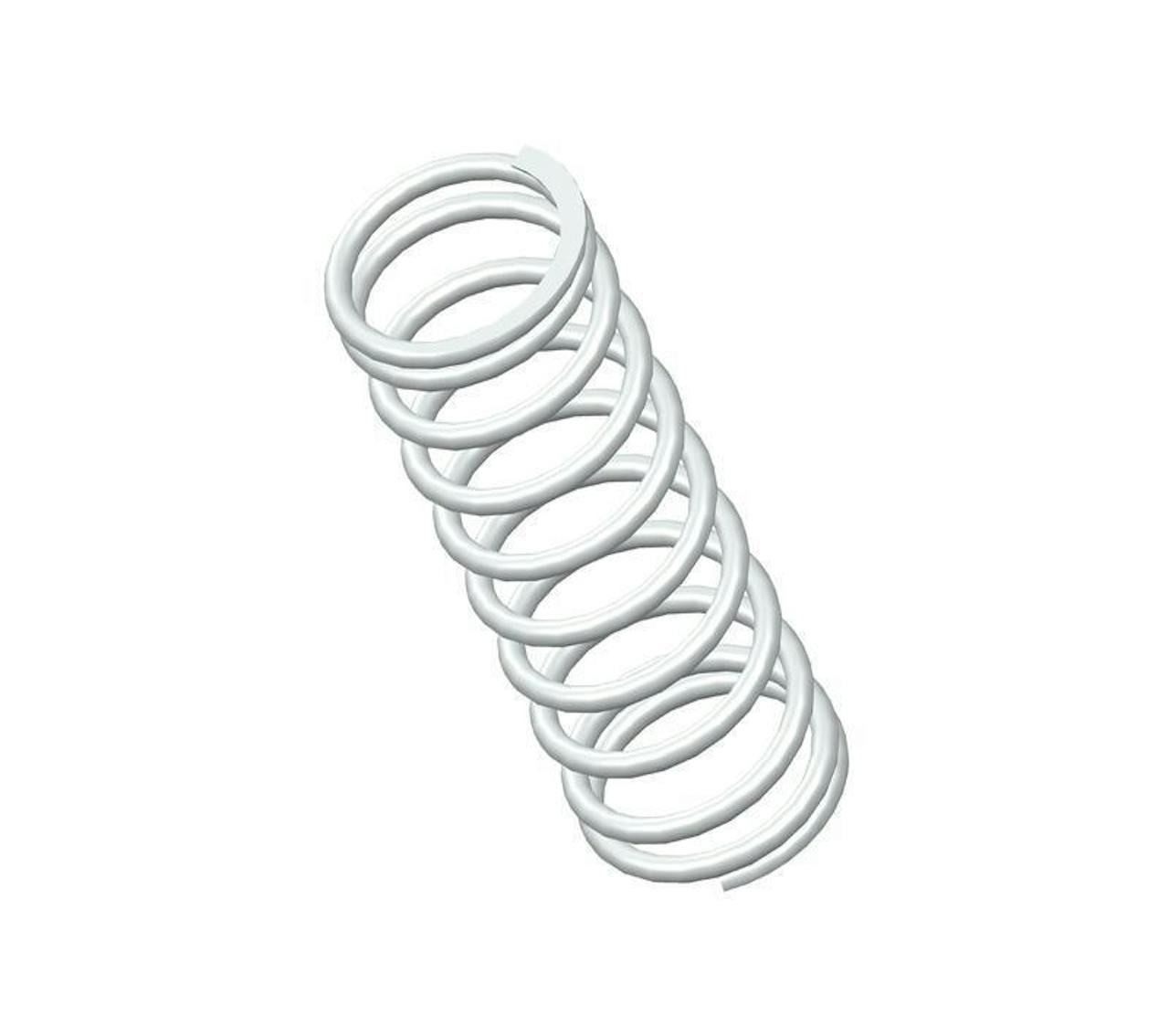

72412SCS - 3" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10.3 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.783".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72412S
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 0.783 in
Material 302/304 Stainless Steel
Outside Diameter 0.975 in
Part Type Standard
Rate 18 lbs/in
SKU 72412SCS
Solid Length 0.979 in
Suggested Max Deflection 1.498 in
Suggested Max Load 27 lbf
Total Coils 10.3
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72412S
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 19.89 mm
Material 302/304 Stainless Steel
Outside Diameter 24.77 mm
Part Type Standard
Rate 3.15 N/mm
SKU 72412SCS
Solid Length 24.87 mm
Suggested Max Deflection 38.05 mm
Suggested Max Load 120.1 N
Total Coils 10.3
Wire Diameter 2.41 mm
The compression spring 72412SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72412S compression spring design exhibits exceptional tensile strength and resilience.

The 72412S design is manufactured with a free length of 3", with an outer diameter of 0.975", an inner diameter of 0.783", and a total of 10.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.

The 72412SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72412S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
