Century Spring

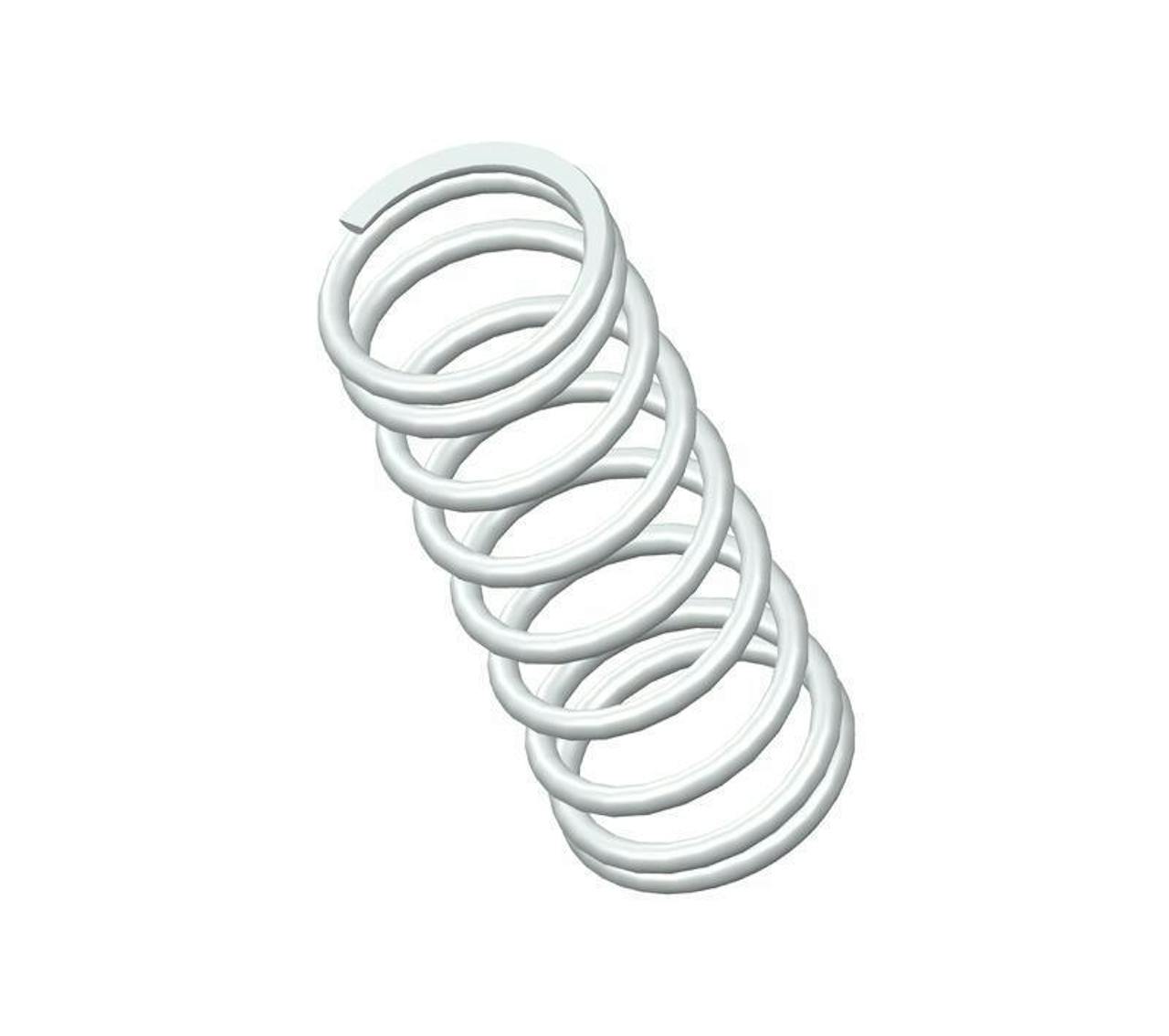

72410SCS - 2.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8.8 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.783".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72410S
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 0.783 in
Material 302/304 Stainless Steel
Outside Diameter 0.975 in
Part Type Standard
Rate 22 lbs/in
SKU 72410SCS
Solid Length 0.835 in
Suggested Max Deflection 1.225 in
Suggested Max Load 27 lbf
Total Coils 8.8
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72410S
Ends Closed & Ground
Finish None
Free Length 63.5 mm
Inside Diameter 19.89 mm
Material 302/304 Stainless Steel
Outside Diameter 24.77 mm
Part Type Standard
Rate 3.85 N/mm
SKU 72410SCS
Solid Length 21.21 mm
Suggested Max Deflection 31.12 mm
Suggested Max Load 120.1 N
Total Coils 8.8
Wire Diameter 2.41 mm
The 72410SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.095" diameter 302/304 stainless steel, the 72410S spring design exhibits reliable strength across its 8.8 active coils, withstanding repeated compression cycles with a maximum load of 27 lbf without succumbing to fatigue.

We manufacture the 72410S design to provide a compression spring that is 2.5" long at rest and provides a consistent rate of 22 lbs/in along its recommended maximum of 1.225" deflection. For best results, your application should fully accommodate the inner (0.783") and outer (0.975") diameters of this spring and be designed for its closed & ground end configuration.
