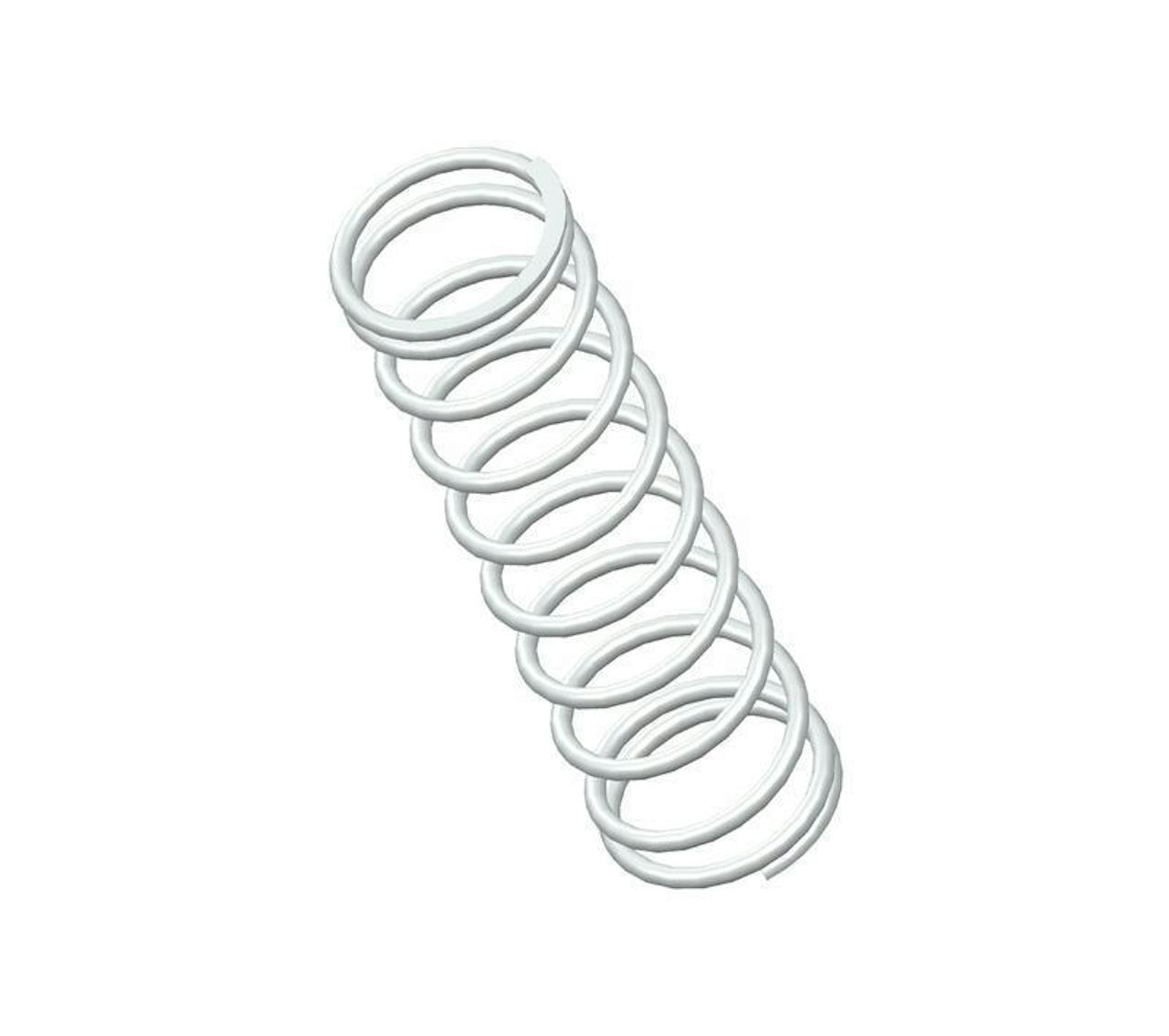

72392SCS - 3.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10.25 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.805".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 72392S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.5 in |
| Inside Diameter | 0.805 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.975 in |
| Part Type | Standard |
| Rate | 11 lbs/in |
| SKU | 72392SCS |
| Solid Length | 0.87 in |
| Suggested Max Deflection | 1.9 in |
| Suggested Max Load | 20 lbf |
| Total Coils | 10.25 |
| Wire Diameter | 0.085 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 72392S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 88.9 mm |
| Inside Diameter | 20.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 24.77 mm |
| Part Type | Standard |
| Rate | 1.93 N/mm |
| SKU | 72392SCS |
| Solid Length | 22.1 mm |
| Suggested Max Deflection | 48.26 mm |
| Suggested Max Load | 88.96 N |
| Total Coils | 10.25 |
| Wire Diameter | 2.16 mm |
The 72392SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.085" diameter 302/304 stainless steel, the 72392S spring design exhibits reliable strength across its 10.25 active coils, withstanding repeated compression cycles with a maximum load of 20 lbf without succumbing to fatigue.
We manufacture the 72392S design to provide a compression spring that is 3.5" long at rest and provides a consistent rate of 11 lbs/in along its recommended maximum of 1.9" deflection. For best results, your application should fully accommodate the inner (0.805") and outer (0.975") diameters of this spring and be designed for its closed & ground end configuration.
