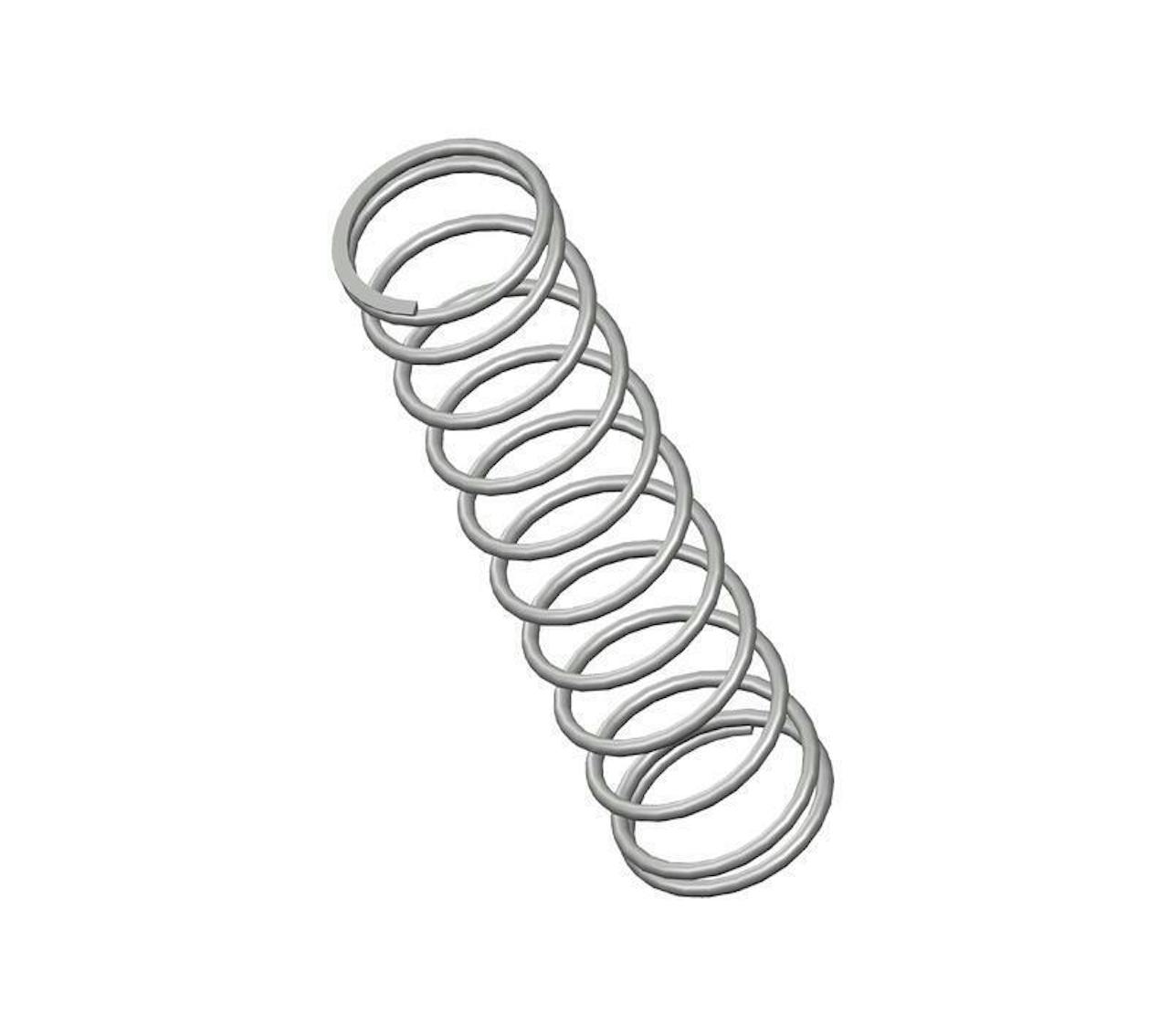

72366CS - 4" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 11.5 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.827".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72366
Ends Closed & Ground
Finish None
Free Length 4 in
Inside Diameter 0.827 in
Material Music Wire
Outside Diameter 0.975 in
Part Type Standard
Rate 6.2 lbs/in
SKU 72366CS
Solid Length 0.85 in
Suggested Max Deflection 3.1 in
Suggested Max Load 20 lbf
Total Coils 11.5
Wire Diameter 0.074 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72366
Ends Closed & Ground
Finish None
Free Length 101.6 mm
Inside Diameter 21.01 mm
Material Music Wire
Outside Diameter 24.77 mm
Part Type Standard
Rate 1.09 N/mm
SKU 72366CS
Solid Length 21.59 mm
Suggested Max Deflection 78.74 mm
Suggested Max Load 88.96 N
Total Coils 11.5
Wire Diameter 1.88 mm
The compression spring 72366CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 72366 compression spring design exhibits exceptional tensile strength and resilience.

The 72366 design is manufactured with a free length of 4", with an outer diameter of 0.975", an inner diameter of 0.827", and a total of 11.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.2 lbs/in.

The 72366CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72366 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
