Century Spring

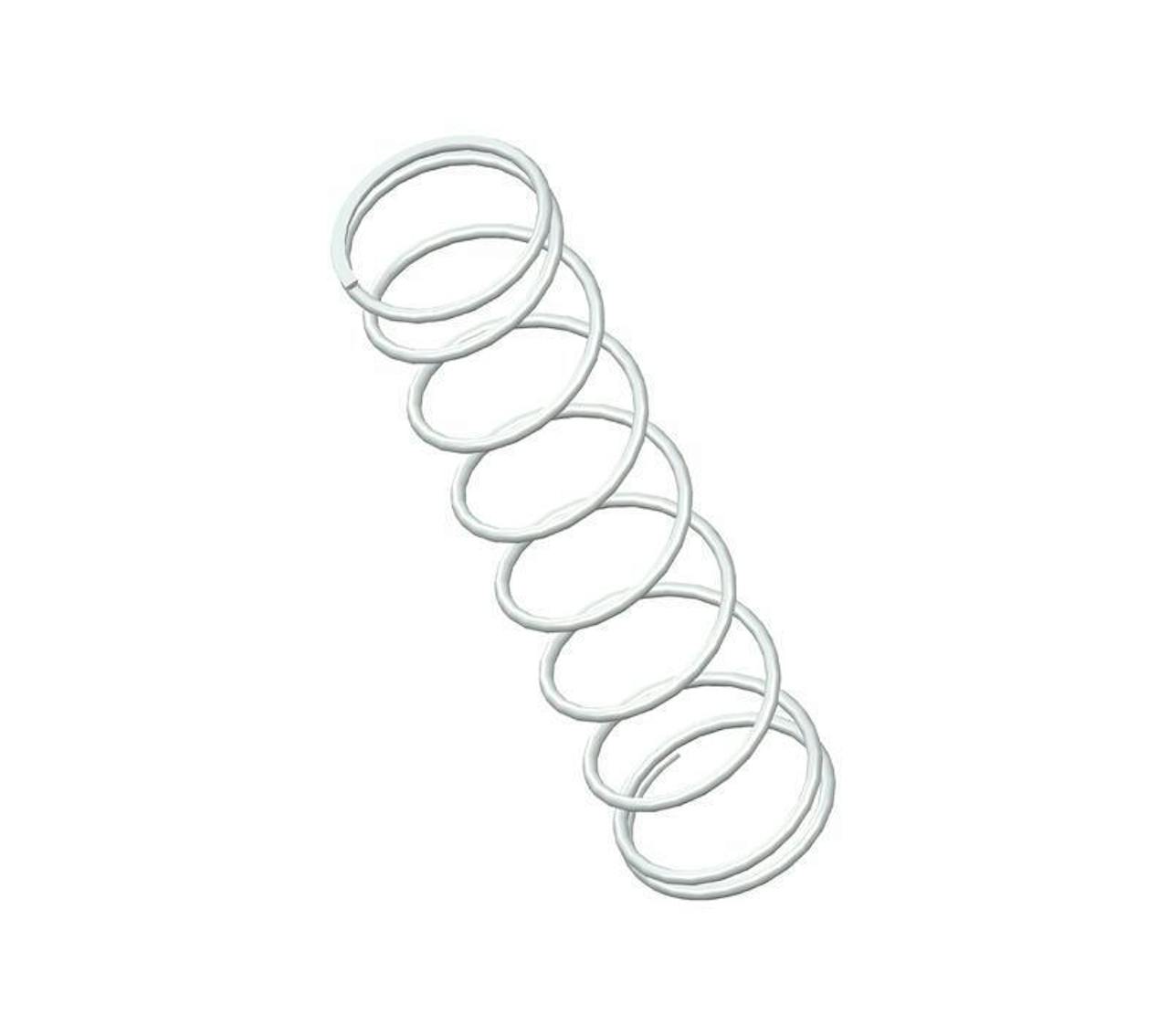

72338SCS - 4" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 9.2 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.849".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72338S
Ends Closed & Ground
Finish None
Free Length 4 in
Inside Diameter 0.849 in
Material 302/304 Stainless Steel
Outside Diameter 0.975 in
Part Type Standard
Rate 3.5 lbs/in
SKU 72338SCS
Solid Length 0.573 in
Suggested Max Deflection 2.439 in
Suggested Max Load 8.5 lbf
Total Coils 9.2
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72338S
Ends Closed & Ground
Finish None
Free Length 101.6 mm
Inside Diameter 21.56 mm
Material 302/304 Stainless Steel
Outside Diameter 24.77 mm
Part Type Standard
Rate 0.61 N/mm
SKU 72338SCS
Solid Length 14.55 mm
Suggested Max Deflection 61.95 mm
Suggested Max Load 37.81 N
Total Coils 9.2
Wire Diameter 1.59 mm
The 72338SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter 302/304 stainless steel, the 72338S spring design exhibits reliable strength across its 9.2 active coils, withstanding repeated compression cycles with a maximum load of 8.5 lbf without succumbing to fatigue.

We manufacture the 72338S design to provide a compression spring that is 4" long at rest and provides a consistent rate of 3.5 lbs/in along its recommended maximum of 2.439" deflection. For best results, your application should fully accommodate the inner (0.849") and outer (0.975") diameters of this spring and be designed for its closed & ground end configuration.
