72300SCS - 1.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

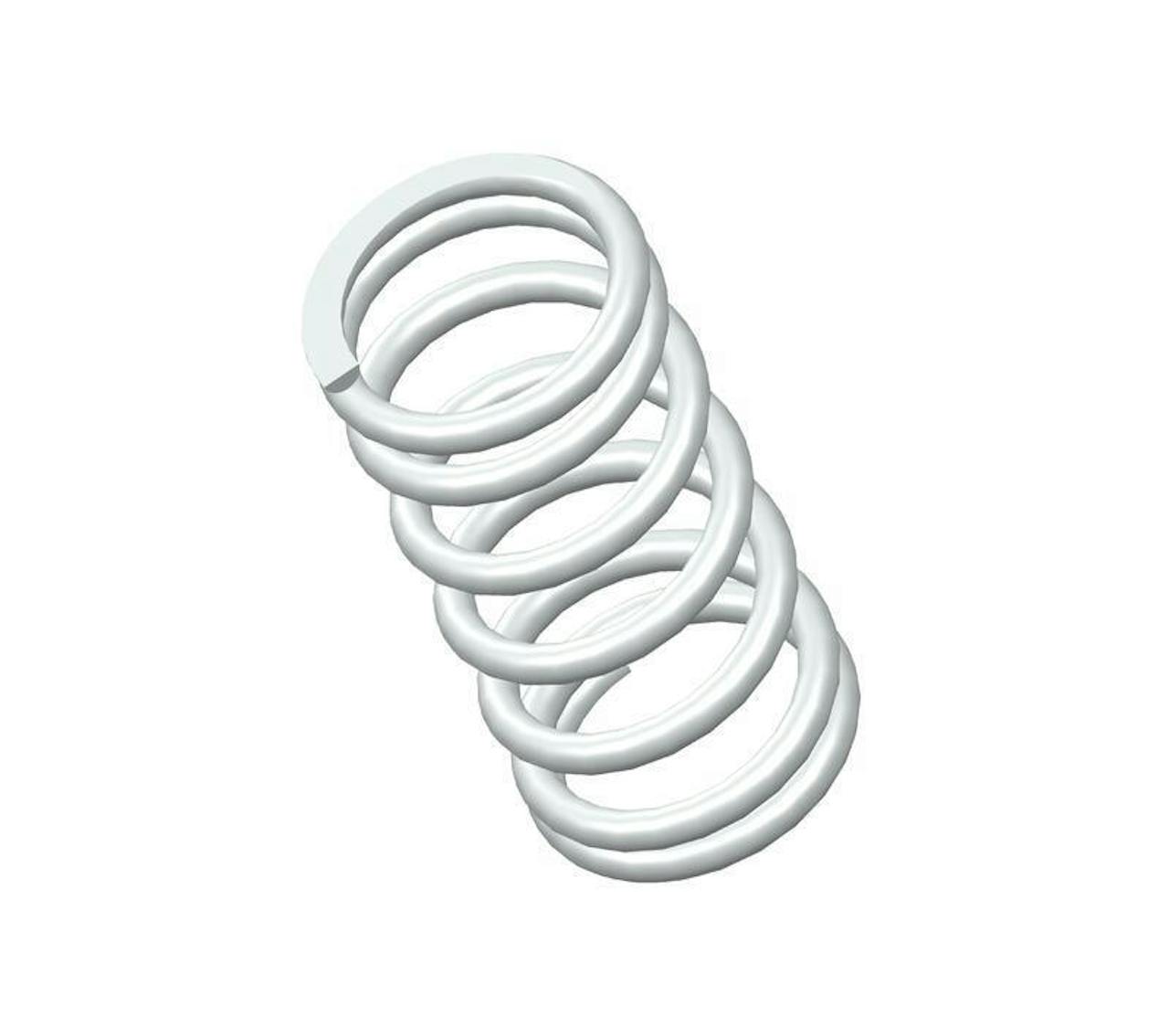

Compression spring manufactured from 302/304 stainless steel with 7.25 coils and closed & ground ends. This spring features an O.D. of 0.85", and an I.D. of 0.65".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 72300S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.75 in |
| Inside Diameter | 0.65 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.85 in |
| Part Type | Standard |
| Rate | 55 lbs/in |
| SKU | 72300SCS |
| Solid Length | 0.73 in |
| Suggested Max Deflection | 0.65 in |
| Suggested Max Load | 35 lbf |
| Total Coils | 7.25 |
| Wire Diameter | 0.1 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 72300S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 44.45 mm |
| Inside Diameter | 16.51 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 21.59 mm |
| Part Type | Standard |
| Rate | 9.63 N/mm |
| SKU | 72300SCS |
| Solid Length | 18.54 mm |
| Suggested Max Deflection | 16.51 mm |
| Suggested Max Load | 155.68 N |
| Total Coils | 7.25 |
| Wire Diameter | 2.54 mm |
The compression spring 72300SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72300S compression spring design exhibits exceptional tensile strength and resilience.
The 72300S design is manufactured with a free length of 1.75", with an outer diameter of 0.85", an inner diameter of 0.65", and a total of 7.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 55 lbs/in.
The 72300SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 72300S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 72300S design is manufactured with a free length of 1.75", with an outer diameter of 0.85", an inner diameter of 0.65", and a total of 7.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 55 lbs/in.
The 72300SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 72300S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
