Century Spring

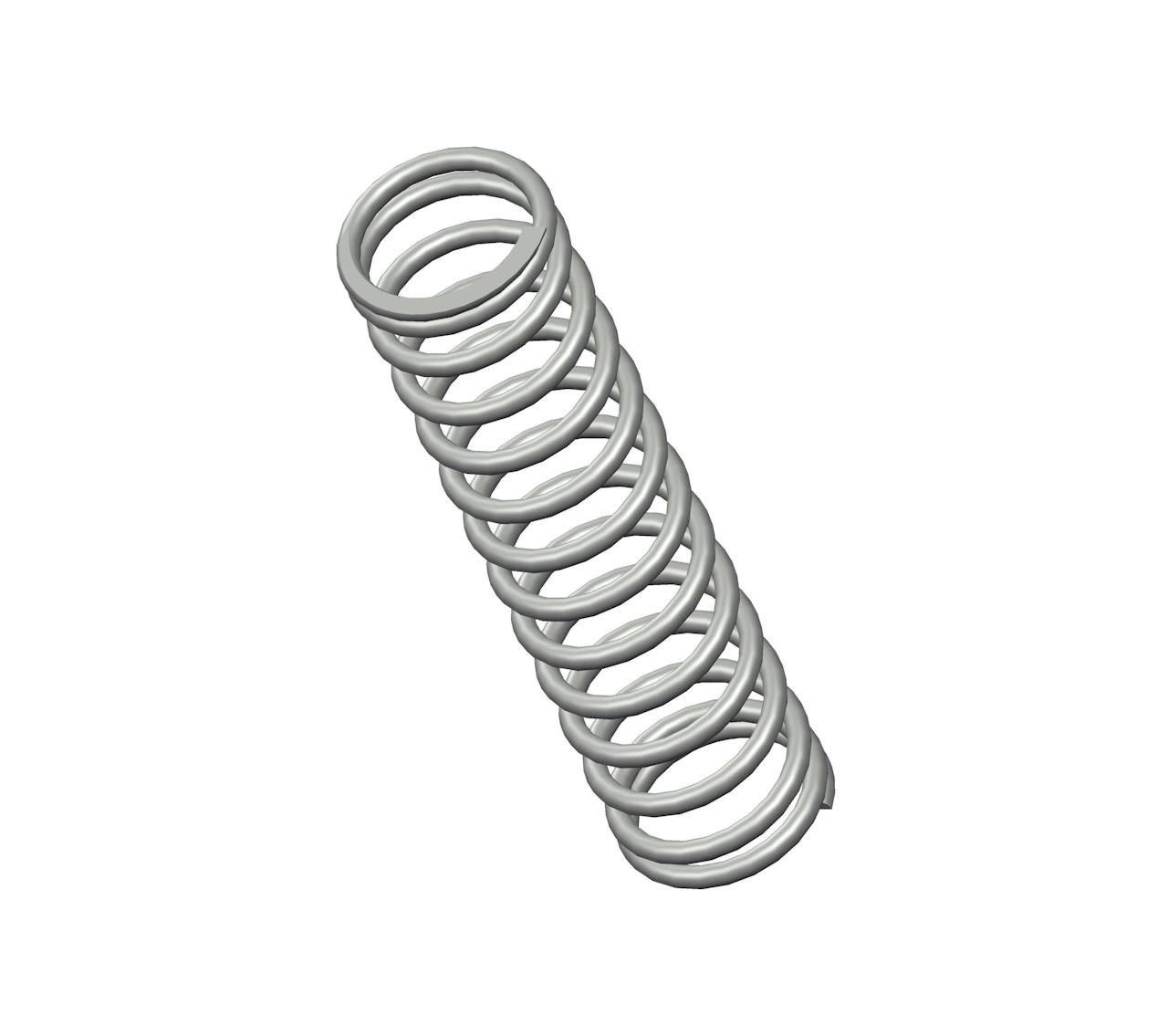

72275CS - 3.5" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 14 coils and closed & ground ends. This spring features an O.D. of 0.85", and an I.D. of 0.668".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72275
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 0.668 in
Material Music Wire
Outside Diameter 0.85 in
Part Type Standard
Rate 19 lbs/in
SKU 72275CS
Solid Length 1.27 in
Suggested Max Deflection 2.2 in
Suggested Max Load 40 lbf
Total Coils 14
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72275
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 16.97 mm
Material Music Wire
Outside Diameter 21.59 mm
Part Type Standard
Rate 3.33 N/mm
SKU 72275CS
Solid Length 32.26 mm
Suggested Max Deflection 55.88 mm
Suggested Max Load 177.92 N
Total Coils 14
Wire Diameter 2.31 mm
The compression spring 72275CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 72275 compression spring design exhibits exceptional tensile strength and resilience.

The 72275 design is manufactured with a free length of 3.5", with an outer diameter of 0.85", an inner diameter of 0.668", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.

The 72275CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72275 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
