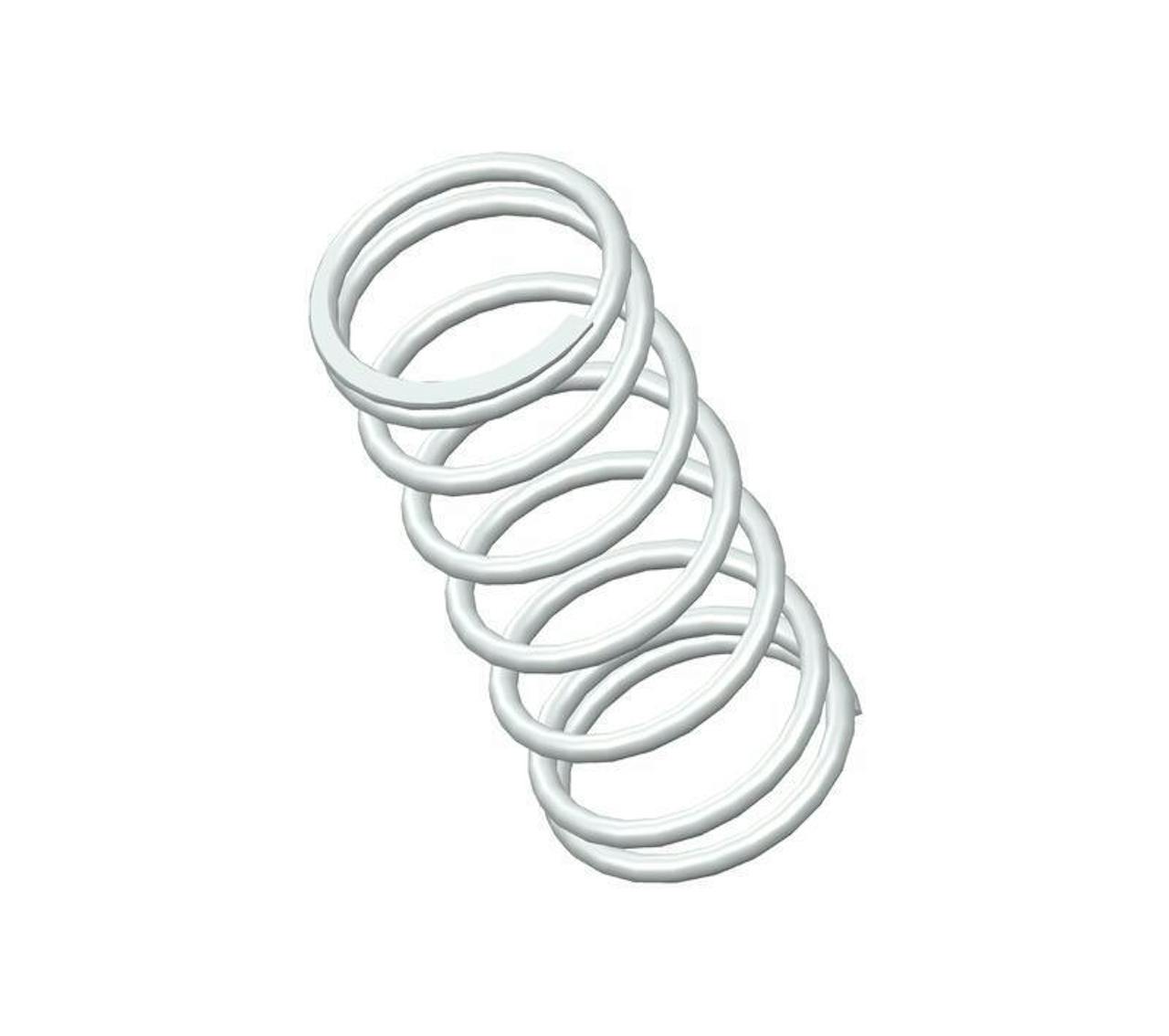

72201SCS - 2" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.88 coils and closed & ground ends. This spring features an O.D. of 0.85", and an I.D. of 0.702".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72201S
Ends Closed & Ground
Finish None
Free Length 2 in
Inside Diameter 0.702 in
Material 302/304 Stainless Steel
Outside Diameter 0.85 in
Part Type Standard
Rate 13 lbs/in
SKU 72201SCS
Solid Length 0.58 in
Suggested Max Deflection 1.1 in
Suggested Max Load 15 lbf
Total Coils 7.88
Wire Diameter 0.074 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72201S
Ends Closed & Ground
Finish None
Free Length 50.8 mm
Inside Diameter 17.83 mm
Material 302/304 Stainless Steel
Outside Diameter 21.59 mm
Part Type Standard
Rate 2.28 N/mm
SKU 72201SCS
Solid Length 14.73 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 66.72 N
Total Coils 7.88
Wire Diameter 1.88 mm
The compression spring 72201SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72201S compression spring design exhibits exceptional tensile strength and resilience.

The 72201S design is manufactured with a free length of 2", with an outer diameter of 0.85", an inner diameter of 0.702", and a total of 7.88 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.

The 72201SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72201S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
