Century Spring

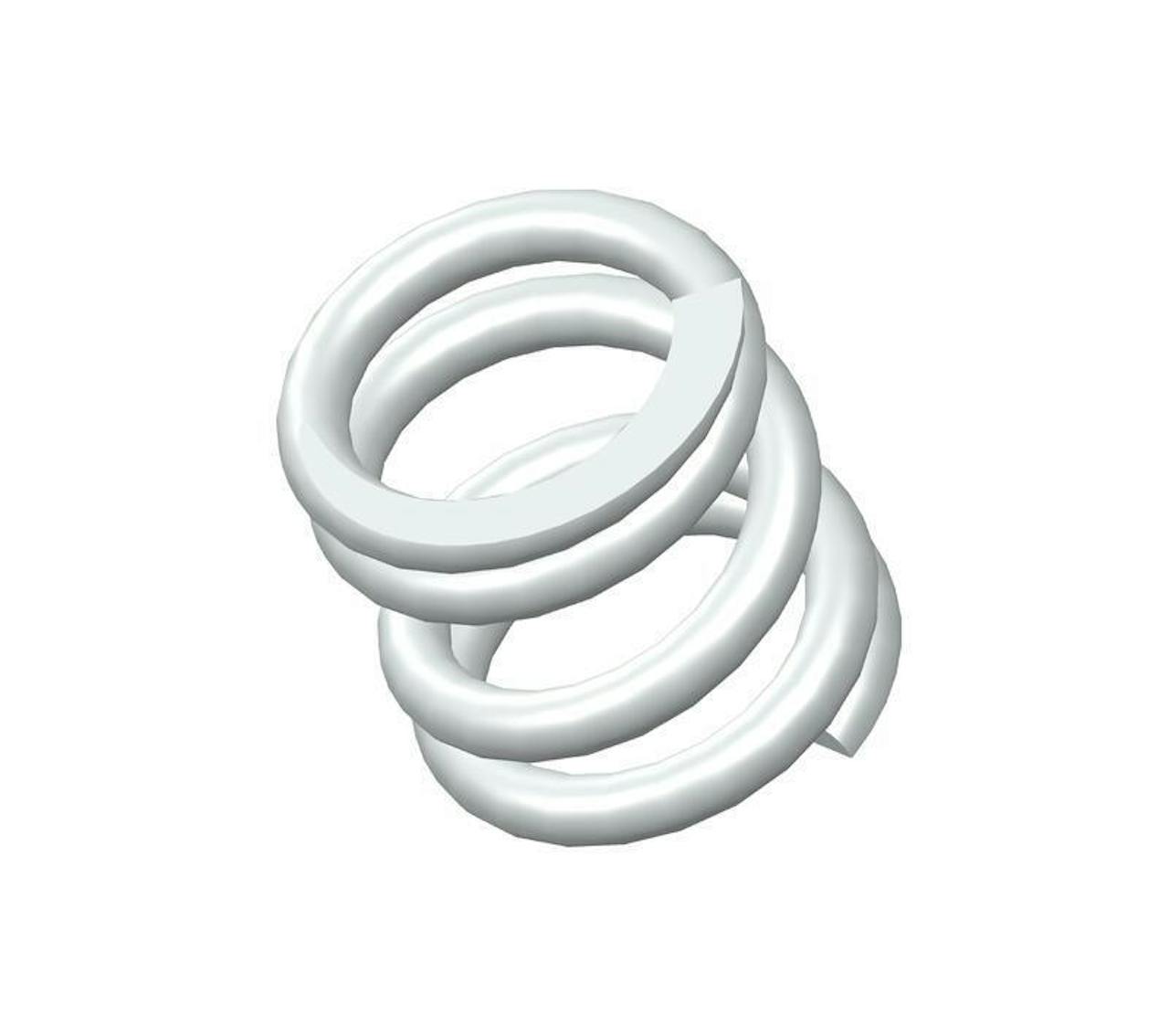

72110SCS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4.13 coils and closed & ground ends. This spring features an O.D. of 0.72", and an I.D. of 0.51".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72110S
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.51 in
Material 302/304 Stainless Steel
Outside Diameter 0.72 in
Part Type Standard
Rate 301 lbs/in
SKU 72110SCS
Solid Length 0.43 in
Suggested Max Deflection 0.16 in
Suggested Max Load 47 lbf
Total Coils 4.13
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72110S
Ends Closed & Ground
Finish None
Free Length 19.05 mm
Inside Diameter 12.95 mm
Material 302/304 Stainless Steel
Outside Diameter 18.29 mm
Part Type Standard
Rate 52.71 N/mm
SKU 72110SCS
Solid Length 10.92 mm
Suggested Max Deflection 4.06 mm
Suggested Max Load 209.06 N
Total Coils 4.13
Wire Diameter 2.67 mm
The 72110SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.105" diameter 302/304 stainless steel, the 72110S spring design exhibits reliable strength across its 4.13 active coils, withstanding repeated compression cycles with a maximum load of 47 lbf without succumbing to fatigue.

We manufacture the 72110S design to provide a compression spring that is 0.75" long at rest and provides a consistent rate of 301 lbs/in along its recommended maximum of 0.16" deflection. For best results, your application should fully accommodate the inner (0.51") and outer (0.72") diameters of this spring and be designed for its closed & ground end configuration.
