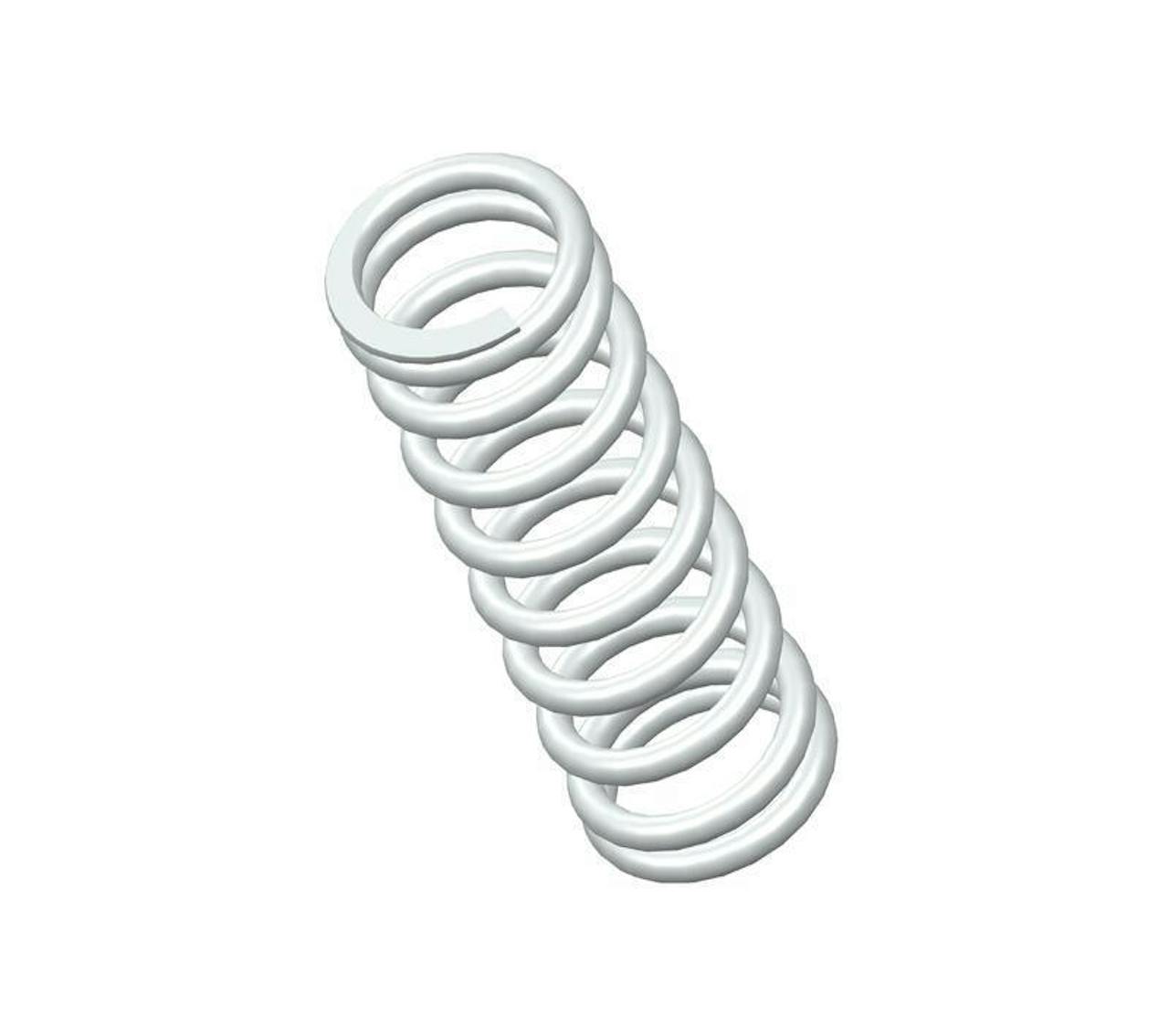

72104SCS - 2.25" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 9.6 coils and closed & ground ends. This spring features an O.D. of 0.72", and an I.D. of 0.528".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72104S
Ends Closed & Ground
Finish None
Free Length 2.25 in
Inside Diameter 0.528 in
Material 302/304 Stainless Steel
Outside Diameter 0.72 in
Part Type Standard
Rate 55 lbs/in
SKU 72104SCS
Solid Length 0.91 in
Suggested Max Deflection 0.65 in
Suggested Max Load 36 lbf
Total Coils 9.6
Wire Diameter 0.095 in
The 72104SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.095" diameter 302/304 stainless steel, the 72104S spring design exhibits reliable strength across its 9.6 active coils, withstanding repeated compression cycles with a maximum load of 36 lbf without succumbing to fatigue.

We manufacture the 72104S design to provide a compression spring that is 2.25" long at rest and provides a consistent rate of 55 lbs/in along its recommended maximum of 0.65" deflection. For best results, your application should fully accommodate the inner (0.528") and outer (0.72") diameters of this spring and be designed for its closed & ground end configuration.
