Century Spring

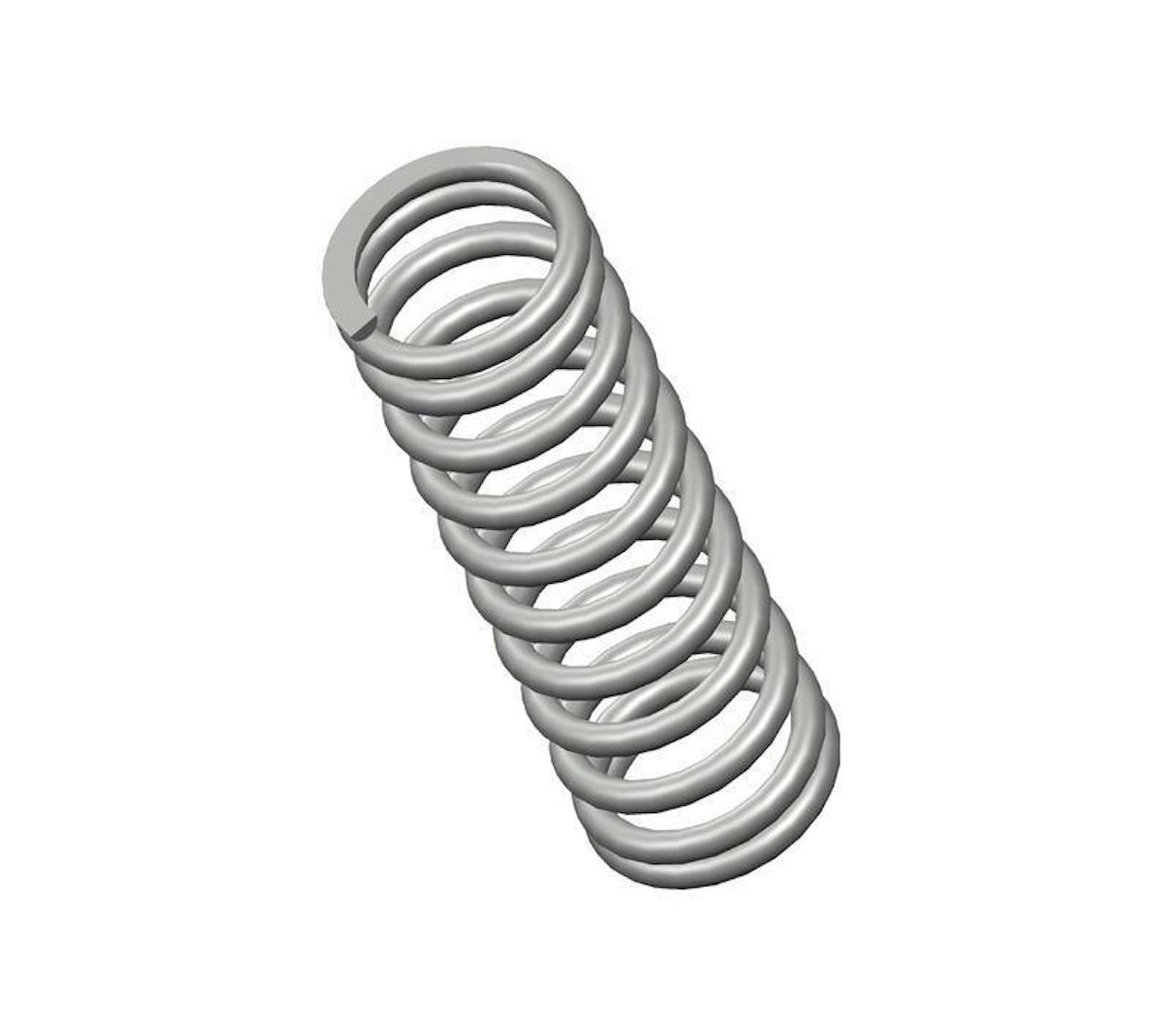

72088CS - 2.25" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 11.3 coils and closed & ground ends. This spring features an O.D. of 0.72", and an I.D. of 0.538".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72088
Ends Closed & Ground
Finish None
Free Length 2.25 in
Inside Diameter 0.538 in
Material Music Wire
Outside Diameter 0.72 in
Part Type Standard
Rate 43 lbs/in
SKU 72088CS
Solid Length 1.02 in
Suggested Max Deflection 1.1 in
Suggested Max Load 47 lbf
Total Coils 11.3
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72088
Ends Closed & Ground
Finish None
Free Length 57.15 mm
Inside Diameter 13.67 mm
Material Music Wire
Outside Diameter 18.29 mm
Part Type Standard
Rate 7.53 N/mm
SKU 72088CS
Solid Length 25.91 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 209.06 N
Total Coils 11.3
Wire Diameter 2.31 mm
The 72088 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 72088CS compression spring is designed with a free length of 2" total of 10.1 coils, and a rate of 41 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 72088 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
