Century Spring

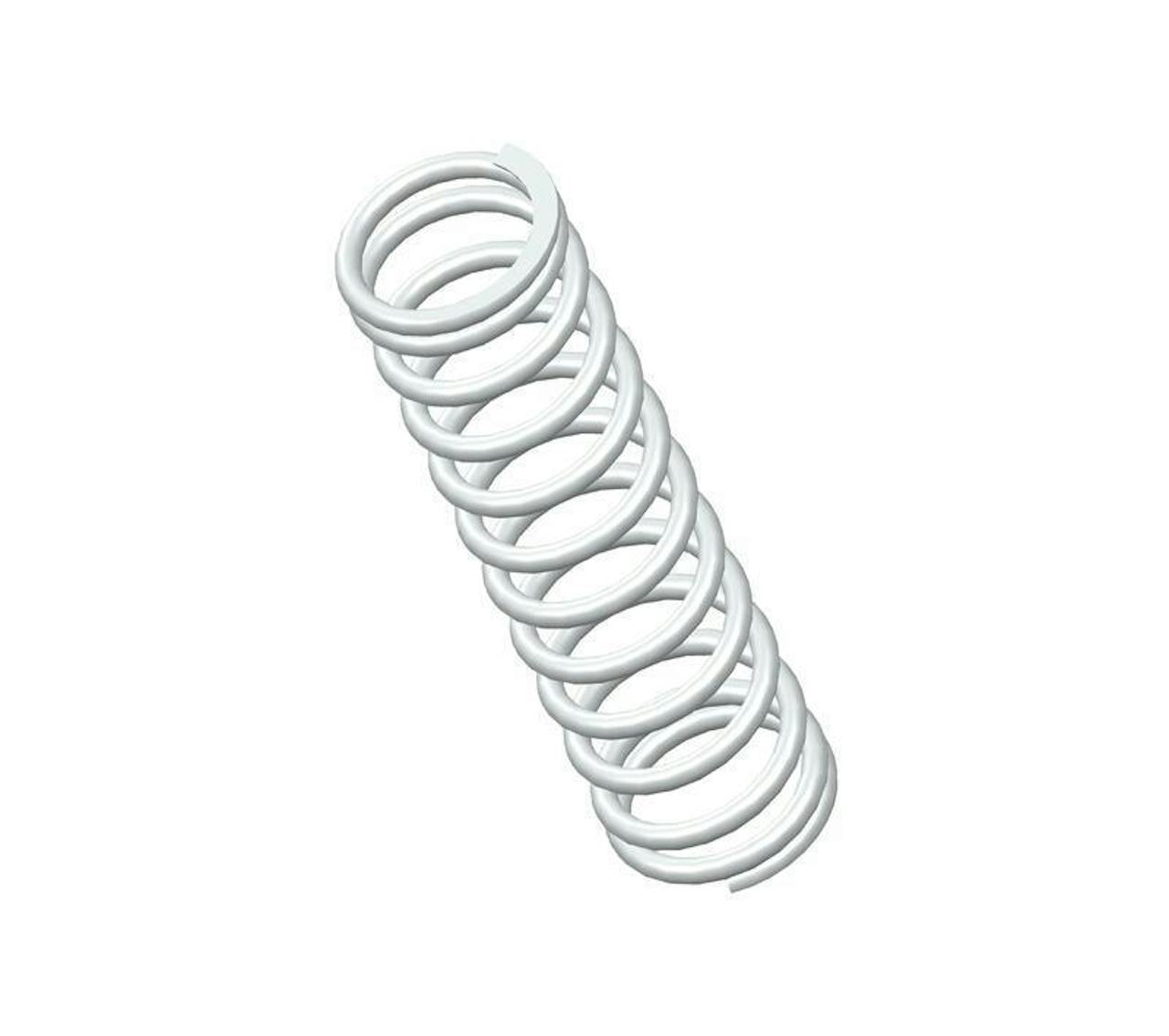

72066SCS - 2.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 0.72", and an I.D. of 0.558".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72066S
Ends Closed & Ground
Finish None
Free Length 2.75 in
Inside Diameter 0.558 in
Material 302/304 Stainless Steel
Outside Diameter 0.72 in
Part Type Standard
Rate 19 lbs/in
SKU 72066SCS
Solid Length 1.103 in
Suggested Max Deflection 1.266 in
Suggested Max Load 24 lbf
Total Coils 13.5
Wire Diameter 0.082 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72066S
Ends Closed & Ground
Finish None
Free Length 69.85 mm
Inside Diameter 14.17 mm
Material 302/304 Stainless Steel
Outside Diameter 18.29 mm
Part Type Standard
Rate 3.33 N/mm
SKU 72066SCS
Solid Length 28.02 mm
Suggested Max Deflection 32.16 mm
Suggested Max Load 106.75 N
Total Coils 13.5
Wire Diameter 2.08 mm
The compression spring 72066SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72066S compression spring design exhibits exceptional tensile strength and resilience.

The 72066S design is manufactured with a free length of 2.75", with an outer diameter of 0.72", an inner diameter of 0.558", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.

The 72066SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72066S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
