Century Spring

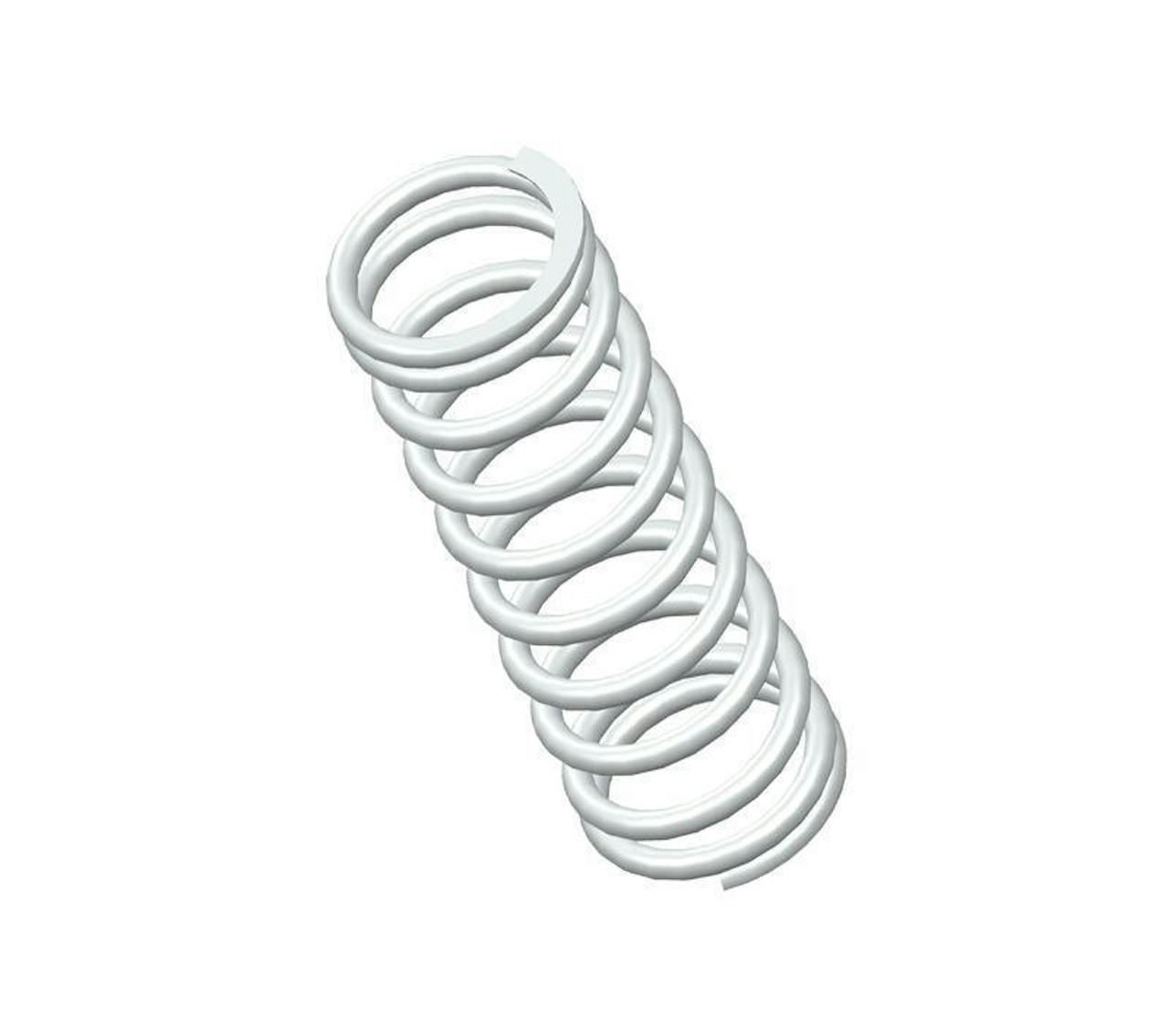

72064SCS - 2.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11.1 coils and closed & ground ends. This spring features an O.D. of 0.72", and an I.D. of 0.558".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72064S
Ends Closed & Ground
Finish None
Free Length 2.25 in
Inside Diameter 0.558 in
Material 302/304 Stainless Steel
Outside Diameter 0.72 in
Part Type Standard
Rate 24 lbs/in
SKU 72064SCS
Solid Length 0.908 in
Suggested Max Deflection 1.02 in
Suggested Max Load 24 lbf
Total Coils 11.1
Wire Diameter 0.082 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72064S
Ends Closed & Ground
Finish None
Free Length 57.15 mm
Inside Diameter 14.17 mm
Material 302/304 Stainless Steel
Outside Diameter 18.29 mm
Part Type Standard
Rate 4.2 N/mm
SKU 72064SCS
Solid Length 23.06 mm
Suggested Max Deflection 25.91 mm
Suggested Max Load 106.75 N
Total Coils 11.1
Wire Diameter 2.08 mm
The 72064SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.082" diameter 302/304 stainless steel, the 72064S spring design exhibits reliable strength across its 11.1 active coils, withstanding repeated compression cycles with a maximum load of 24 lbf without succumbing to fatigue.

We manufacture the 72064S design to provide a compression spring that is 2.25" long at rest and provides a consistent rate of 24 lbs/in along its recommended maximum of 1.02" deflection. For best results, your application should fully accommodate the inner (0.558") and outer (0.72") diameters of this spring and be designed for its closed & ground end configuration.
