71926SCS - 0.63" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

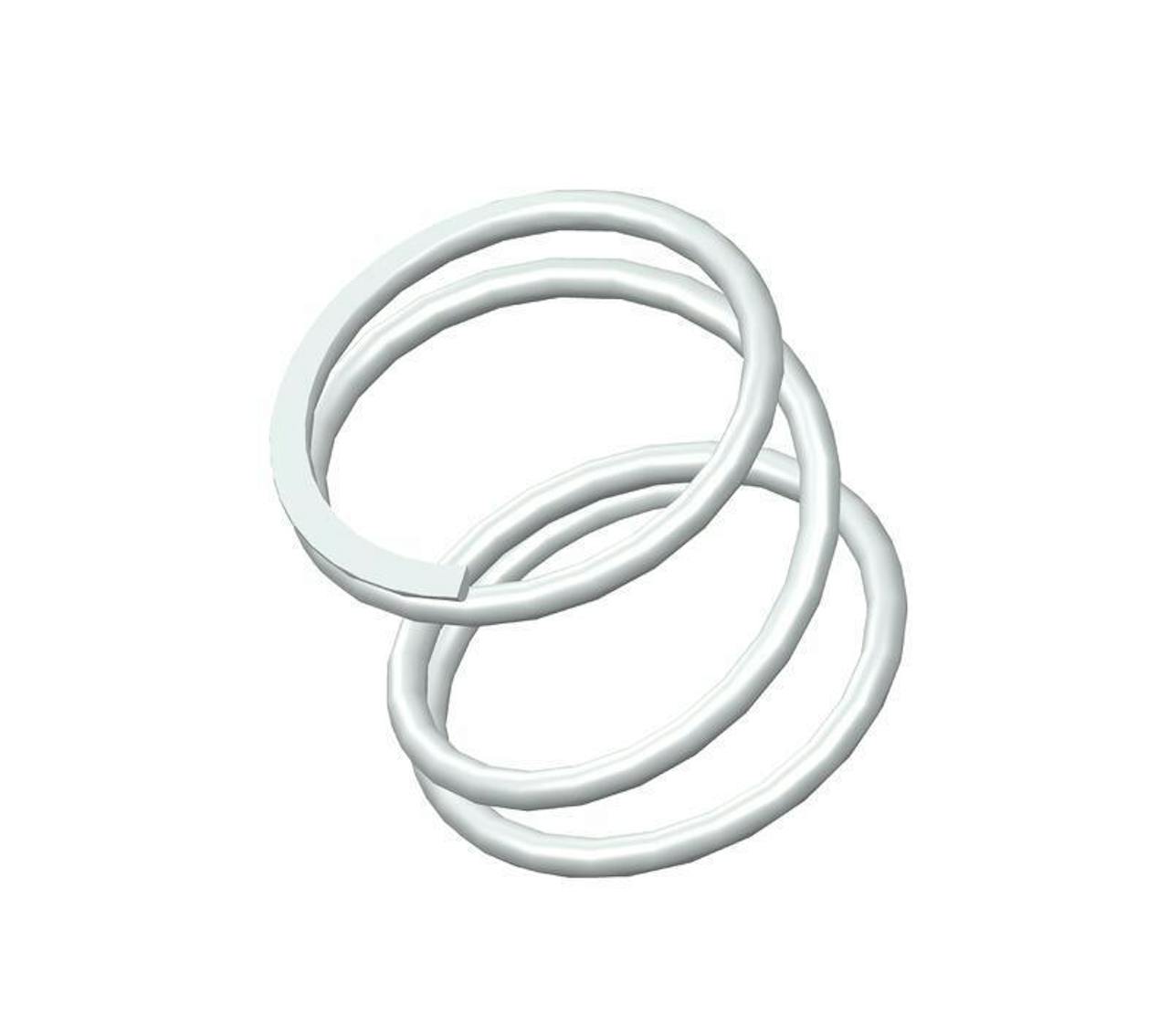

Compression spring manufactured from 302/304 stainless steel with 3.5 coils and closed & ground ends. This spring features an O.D. of 0.72", and an I.D. of 0.61".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71926S
Ends Closed & Ground
Finish None
Free Length 0.63 in
Inside Diameter 0.61 in
Material 302/304 Stainless Steel
Outside Diameter 0.72 in
Part Type Standard
Rate 26 lbs/in
SKU 71926SCS
Solid Length 0.19 in
Suggested Max Deflection 0.3 in
Suggested Max Load 7.9 lbf
Total Coils 3.5
Wire Diameter 0.055 in
The compression spring 71926SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 71926S compression spring design exhibits exceptional tensile strength and resilience.

The 71926S design is manufactured with a free length of 0.63", with an outer diameter of 0.72", an inner diameter of 0.61", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 26 lbs/in.

The 71926SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71926S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
