Century Spring

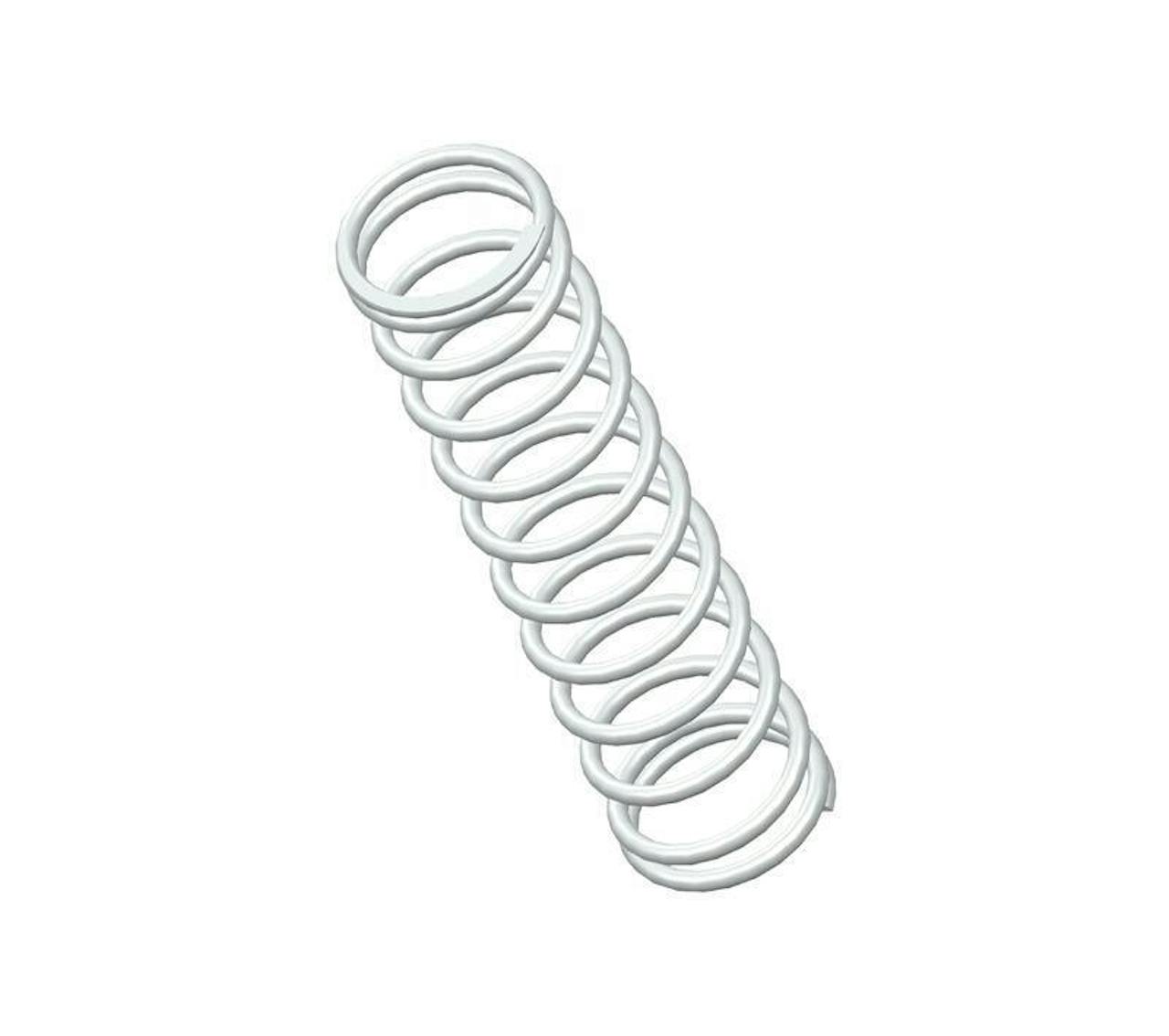

71899SCS - 2.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11.9 coils and closed & ground ends. This spring features an O.D. of 0.66", and an I.D. of 0.534".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71899S
Ends Closed & Ground
Finish None
Free Length 2.75 in
Inside Diameter 0.534 in
Material 302/304 Stainless Steel
Outside Diameter 0.66 in
Part Type Standard
Rate 9 lbs/in
SKU 71899SCS
Solid Length 0.746 in
Suggested Max Deflection 1.38 in
Suggested Max Load 12.4 lbf
Total Coils 11.9
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71899S
Ends Closed & Ground
Finish None
Free Length 69.85 mm
Inside Diameter 13.56 mm
Material 302/304 Stainless Steel
Outside Diameter 16.76 mm
Part Type Standard
Rate 1.58 N/mm
SKU 71899SCS
Solid Length 18.95 mm
Suggested Max Deflection 35.05 mm
Suggested Max Load 55.16 N
Total Coils 11.9
Wire Diameter 1.59 mm
The compression spring 71899SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 71899S compression spring design exhibits exceptional tensile strength and resilience.

The 71899S design is manufactured with a free length of 2.75", with an outer diameter of 0.66", an inner diameter of 0.534", and a total of 11.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 9 lbs/in.

The 71899SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71899S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
