71899CS - 2.75" Music Wire Compression Spring

Inventory:
Estimated Lead Time

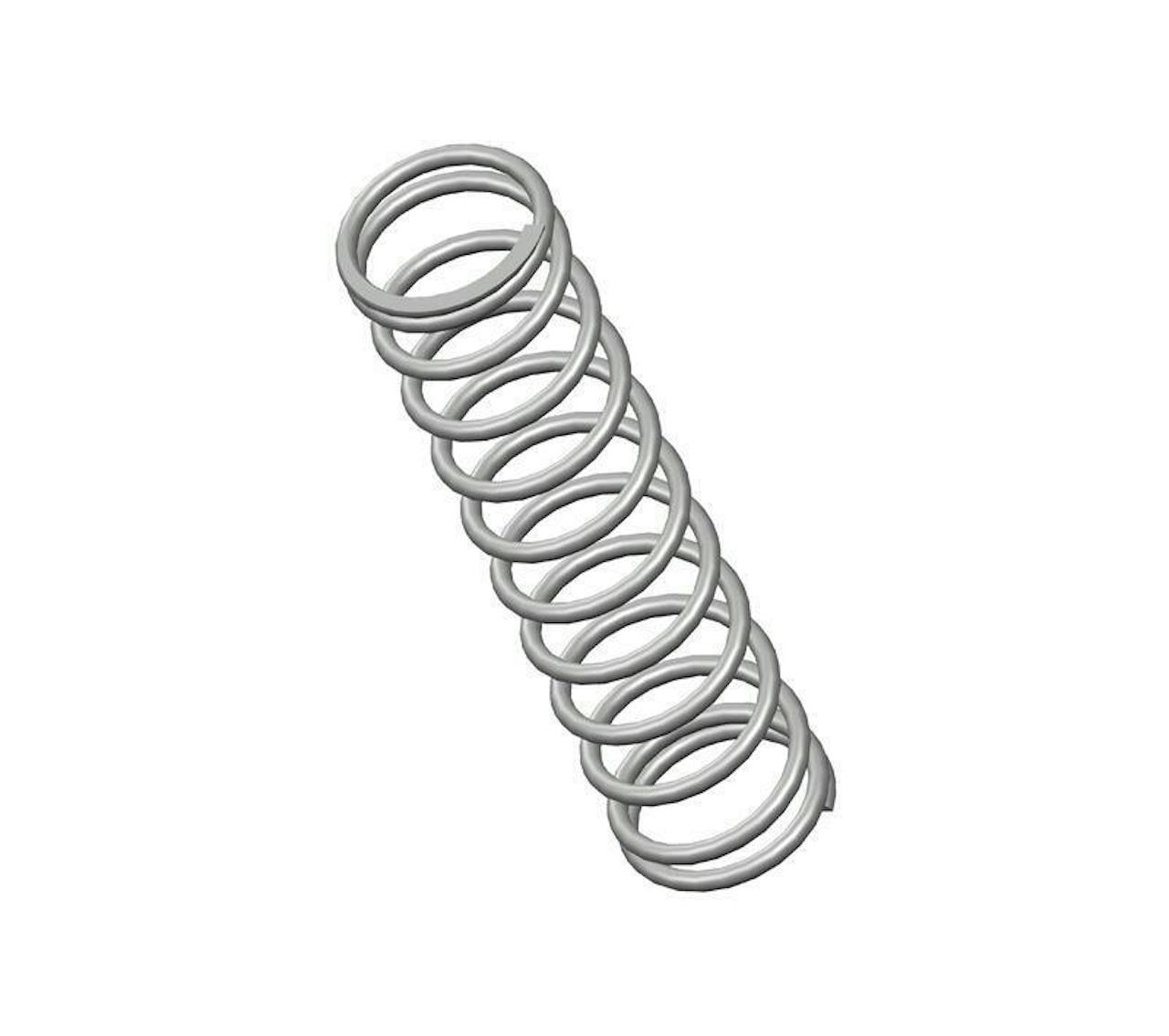

Compression spring manufactured from music wire with 12 coils and closed & ground ends. This spring features an O.D. of 0.66", and an I.D. of 0.535".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71899
Ends Closed & Ground
Finish None
Free Length 2.75 in
Inside Diameter 0.535 in
Material Music Wire
Outside Diameter 0.66 in
Part Type Standard
Rate 11 lbs/in
SKU 71899CS
Solid Length 0.76 in
Suggested Max Deflection 1.8 in
Suggested Max Load 19 lbf
Total Coils 12
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71899
Ends Closed & Ground
Finish None
Free Length 69.85 mm
Inside Diameter 13.59 mm
Material Music Wire
Outside Diameter 16.76 mm
Part Type Standard
Rate 1.93 N/mm
SKU 71899CS
Solid Length 19.3 mm
Suggested Max Deflection 45.72 mm
Suggested Max Load 84.51 N
Total Coils 12
Wire Diameter 1.59 mm
The 71899CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter music wire, the 71899 spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 19 lbf without succumbing to fatigue.

We manufacture the 71899 design to provide a compression spring that is 2.75" long at rest and provides a consistent rate of 11 lbs/in along its recommended maximum of 1.8" deflection. For best results, your application should fully accommodate the inner (0.535") and outer (0.66") diameters of this spring and be designed for its closed & ground end configuration.
