Century Spring

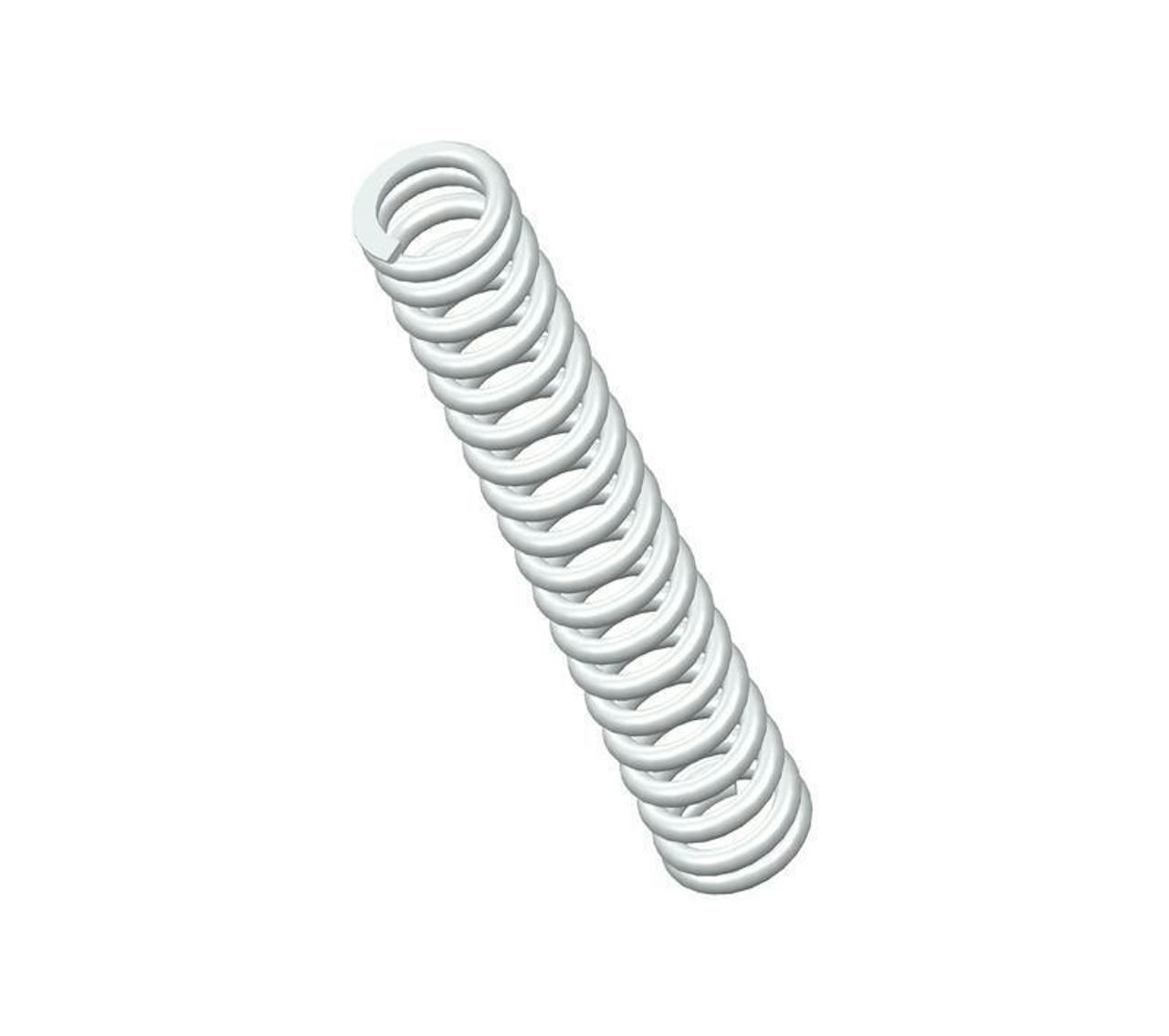

71863SCS - 3.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 19.4 coils and closed & ground ends. This spring features an O.D. of 0.6", and an I.D. of 0.404".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71863S
Ends Closed & Ground
Finish None
Free Length 3.75 in
Inside Diameter 0.404 in
Material 302/304 Stainless Steel
Outside Diameter 0.6 in
Part Type Standard
Rate 51 lbs/in
SKU 71863SCS
Solid Length 1.9 in
Suggested Max Deflection 0.89 in
Suggested Max Load 46 lbf
Total Coils 19.4
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71863S
Ends Closed & Ground
Finish None
Free Length 95.25 mm
Inside Diameter 10.26 mm
Material 302/304 Stainless Steel
Outside Diameter 15.24 mm
Part Type Standard
Rate 8.93 N/mm
SKU 71863SCS
Solid Length 48.26 mm
Suggested Max Deflection 22.61 mm
Suggested Max Load 204.61 N
Total Coils 19.4
Wire Diameter 2.49 mm
The compression spring 71863SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 71863S compression spring design exhibits exceptional tensile strength and resilience.

The 71863S design is manufactured with a free length of 3.75", with an outer diameter of 0.6", an inner diameter of 0.404", and a total of 19.4 coils, expertly designed to deliver consistent compression characteristics including a rate of 51 lbs/in.

The 71863SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71863S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
