71863CS - 3.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

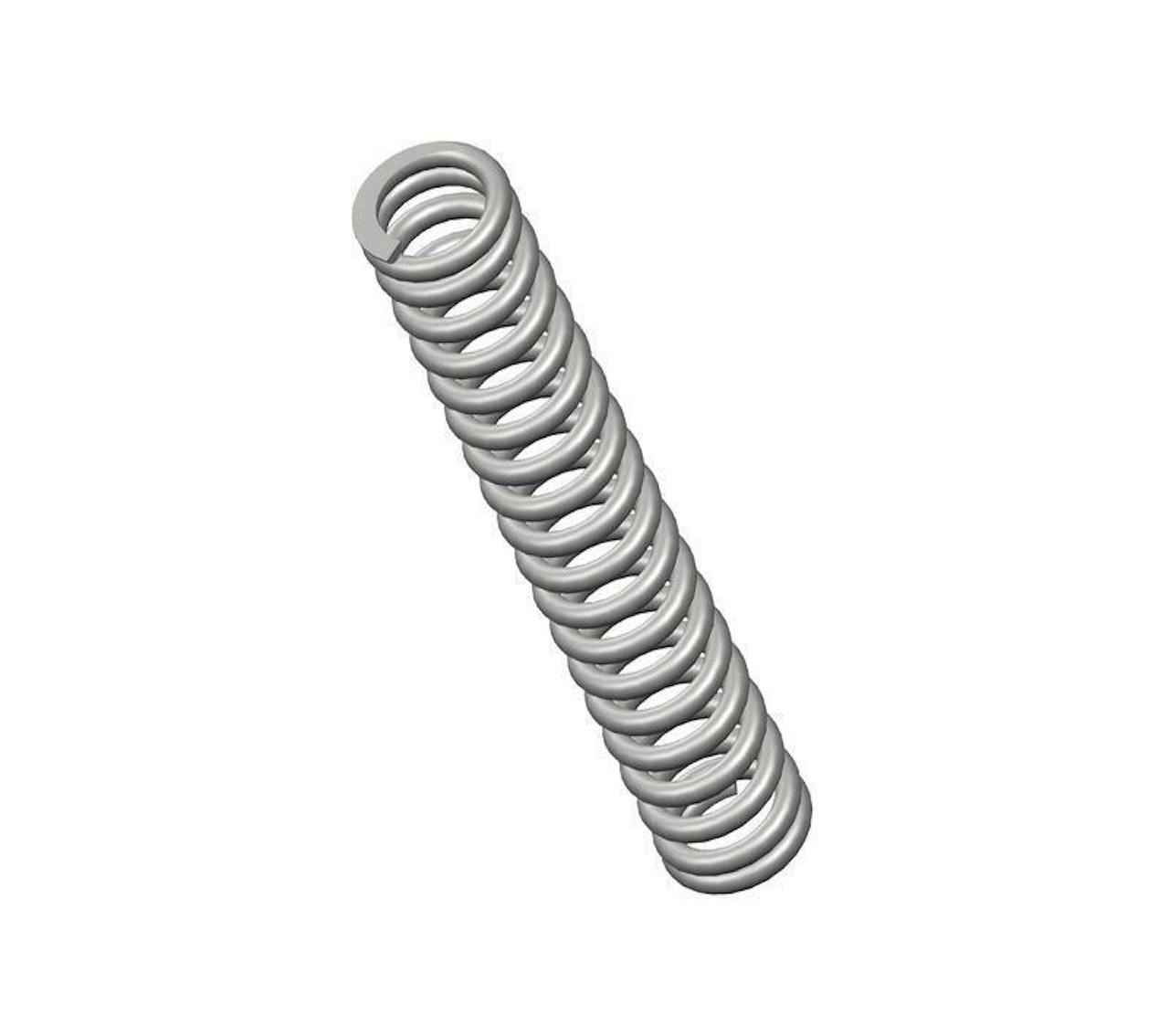

Compression spring manufactured from music wire with 19.4 coils and closed & ground ends. This spring features an O.D. of 0.6", and an I.D. of 0.404".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71863
Ends Closed & Ground
Finish None
Free Length 3.75 in
Inside Diameter 0.404 in
Material Music Wire
Outside Diameter 0.6 in
Part Type Standard
Rate 61 lbs/in
SKU 71863CS
Solid Length 1.9 in
Suggested Max Deflection 1.1 in
Suggested Max Load 69 lbf
Total Coils 19.4
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71863
Ends Closed & Ground
Finish None
Free Length 95.25 mm
Inside Diameter 10.26 mm
Material Music Wire
Outside Diameter 15.24 mm
Part Type Standard
Rate 10.68 N/mm
SKU 71863CS
Solid Length 48.26 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 306.91 N
Total Coils 19.4
Wire Diameter 2.49 mm
The 71863CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.098" diameter music wire, the 71863 spring design exhibits reliable strength across its 19.4 active coils, withstanding repeated compression cycles with a maximum load of 69 lbf without succumbing to fatigue.

We manufacture the 71863 design to provide a compression spring that is 3.75" long at rest and provides a consistent rate of 61 lbs/in along its recommended maximum of 1.1" deflection. For best results, your application should fully accommodate the inner (0.404") and outer (0.6") diameters of this spring and be designed for its closed & ground end configuration.
