Century Spring

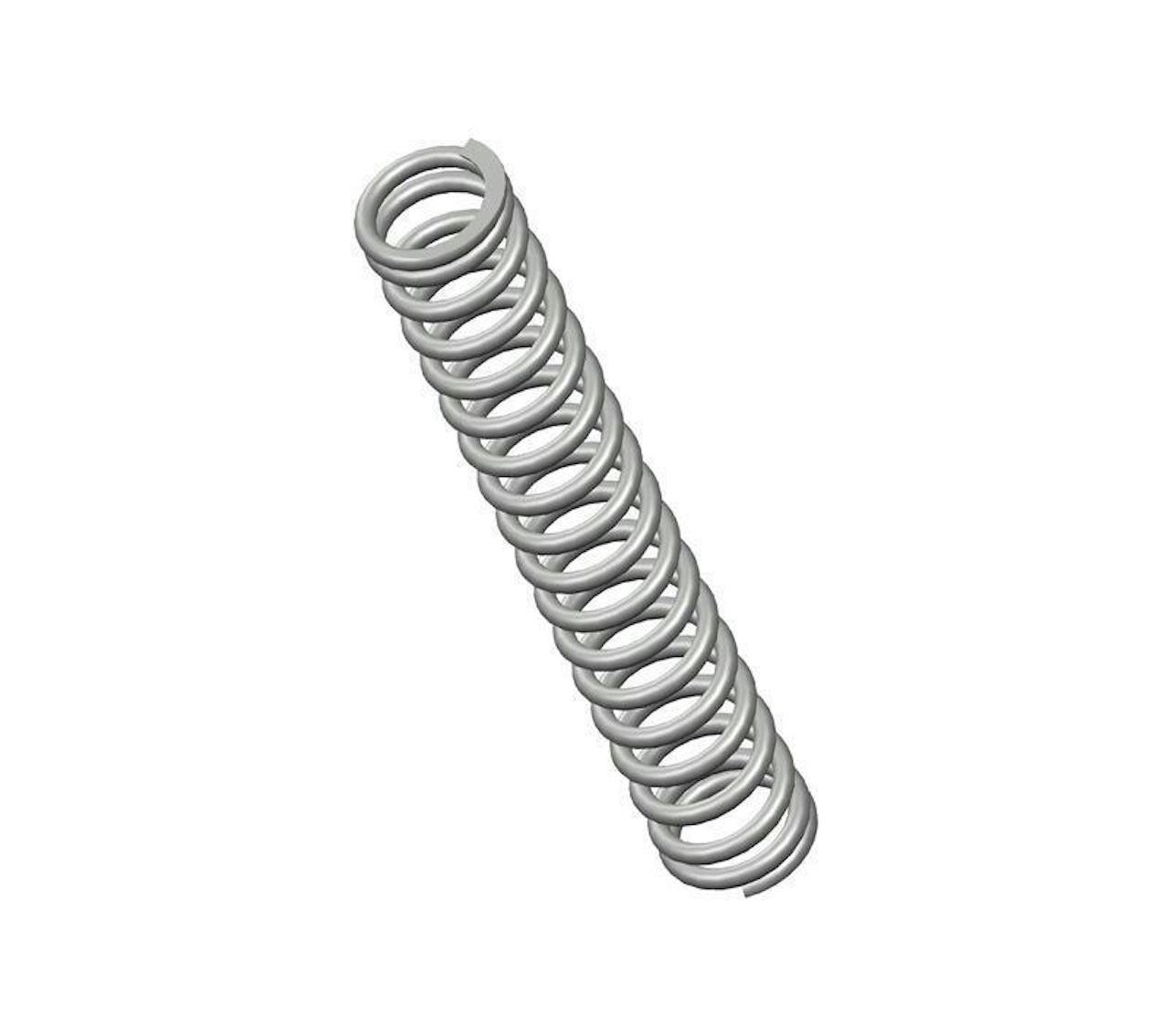

71817CS - 3.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 18.4 coils and closed & ground ends. This spring features an O.D. of 0.6", and an I.D. of 0.438".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71817
Ends Closed & Ground
Finish None
Free Length 3.75 in
Inside Diameter 0.438 in
Material Music Wire
Outside Diameter 0.6 in
Part Type Standard
Rate 27 lbs/in
SKU 71817CS
Solid Length 1.49 in
Suggested Max Deflection 1.5 in
Suggested Max Load 41 lbf
Total Coils 18.4
Wire Diameter 0.081 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71817
Ends Closed & Ground
Finish None
Free Length 95.25 mm
Inside Diameter 11.13 mm
Material Music Wire
Outside Diameter 15.24 mm
Part Type Standard
Rate 4.73 N/mm
SKU 71817CS
Solid Length 37.85 mm
Suggested Max Deflection 38.1 mm
Suggested Max Load 182.37 N
Total Coils 18.4
Wire Diameter 2.06 mm
The compression spring 71817CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 71817 compression spring design exhibits exceptional tensile strength and resilience.

The 71817 design is manufactured with a free length of 3.75", with an outer diameter of 0.6", an inner diameter of 0.438", and a total of 18.4 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.

The 71817CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71817 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
