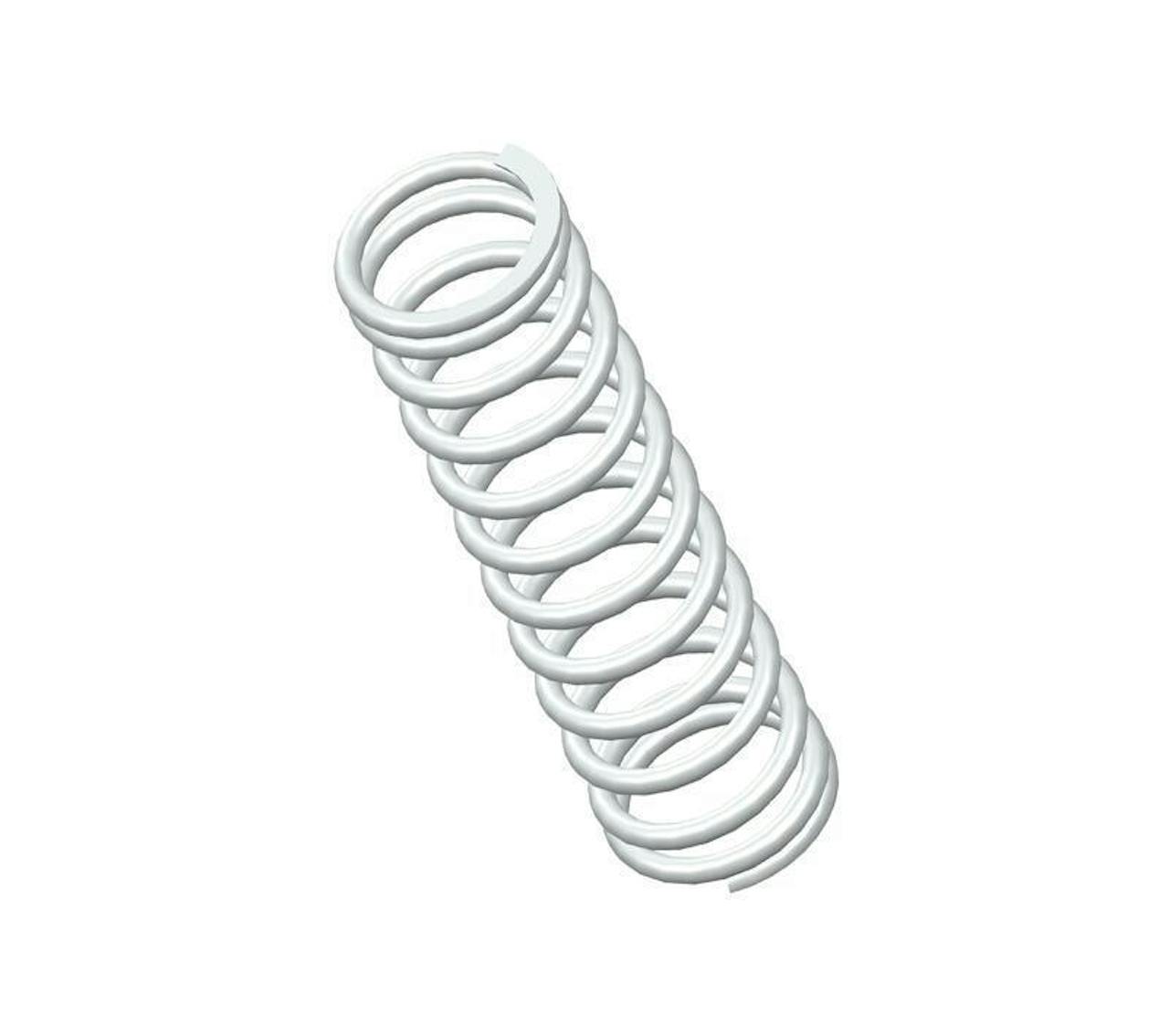

71787SCS - 2.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 12.4 coils and closed & ground ends. This spring features an O.D. of 0.6", and an I.D. of 0.466".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71787S
Ends Closed & Ground
Finish None
Free Length 2.25 in
Inside Diameter 0.466 in
Material 302/304 Stainless Steel
Outside Diameter 0.6 in
Part Type Standard
Rate 16 lbs/in
SKU 71787SCS
Solid Length 0.83 in
Suggested Max Deflection 1.1 in
Suggested Max Load 17 lbf
Total Coils 12.4
Wire Diameter 0.067 in
The 71787S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 71787SCS compression spring is designed with a free length of 2.25" total of 12.4 coils, and a rate of 18 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 71787S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
