71629CS - 2.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

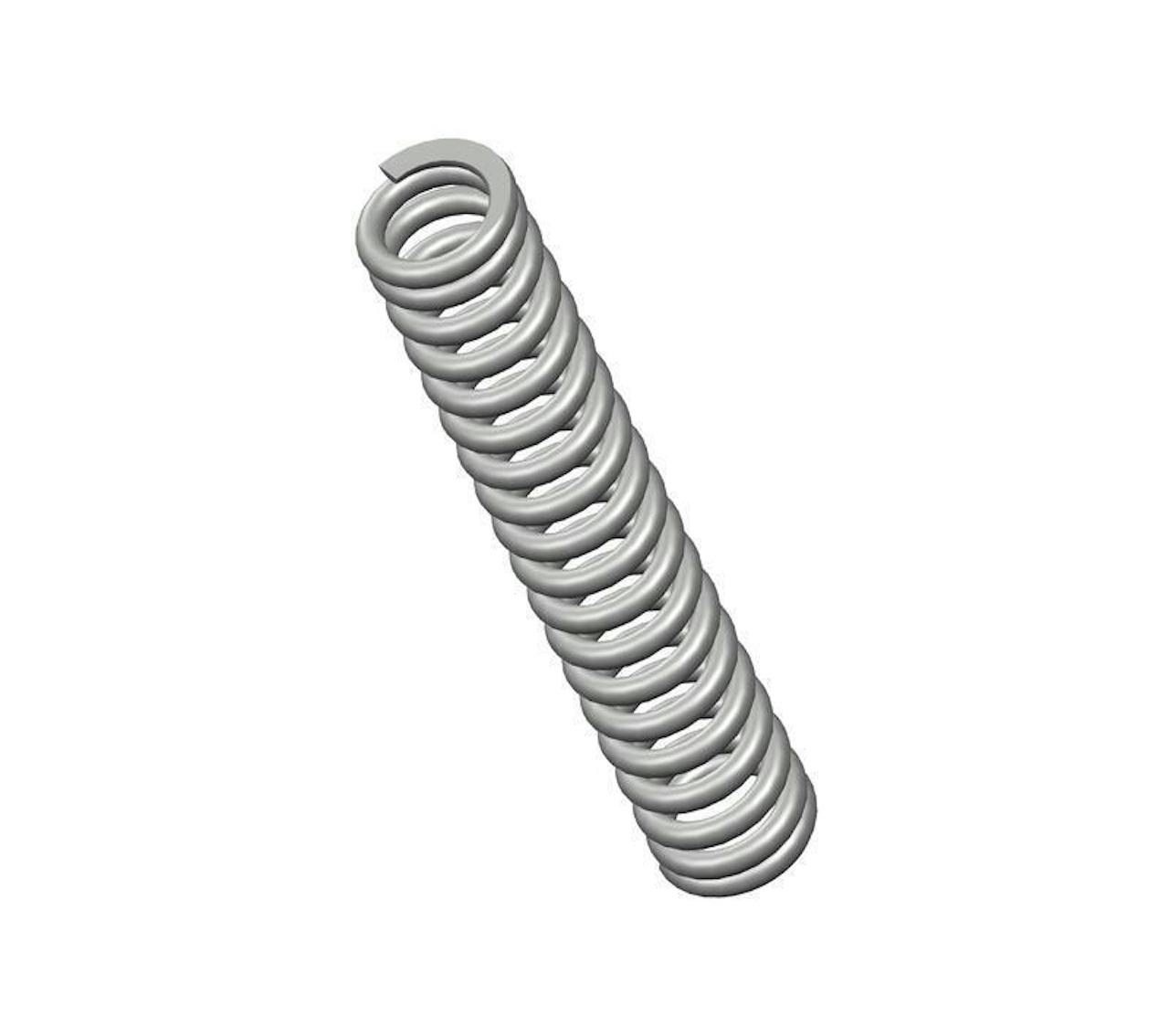

Compression spring manufactured from music wire with 18.8 coils and closed & ground ends. This spring features an O.D. of 0.48", and an I.D. of 0.318".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71629
Ends Closed & Ground
Finish None
Free Length 2.75 in
Inside Diameter 0.318 in
Material Music Wire
Outside Diameter 0.48 in
Part Type Standard
Rate 58 lbs/in
SKU 71629CS
Solid Length 1.52 in
Suggested Max Deflection 0.87 in
Suggested Max Load 50 lbf
Total Coils 18.8
Wire Diameter 0.081 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71629
Ends Closed & Ground
Finish None
Free Length 69.85 mm
Inside Diameter 8.08 mm
Material Music Wire
Outside Diameter 12.19 mm
Part Type Standard
Rate 10.16 N/mm
SKU 71629CS
Solid Length 38.61 mm
Suggested Max Deflection 22.1 mm
Suggested Max Load 222.4 N
Total Coils 18.8
Wire Diameter 2.06 mm
The 71629CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.081" diameter music wire, the 71629 spring design exhibits reliable strength across its 18.8 active coils, withstanding repeated compression cycles with a maximum load of 50 lbf without succumbing to fatigue.

We manufacture the 71629 design to provide a compression spring that is 2.75" long at rest and provides a consistent rate of 58 lbs/in along its recommended maximum of 0.87" deflection. For best results, your application should fully accommodate the inner (0.318") and outer (0.48") diameters of this spring and be designed for its closed & ground end configuration.
