Century Spring

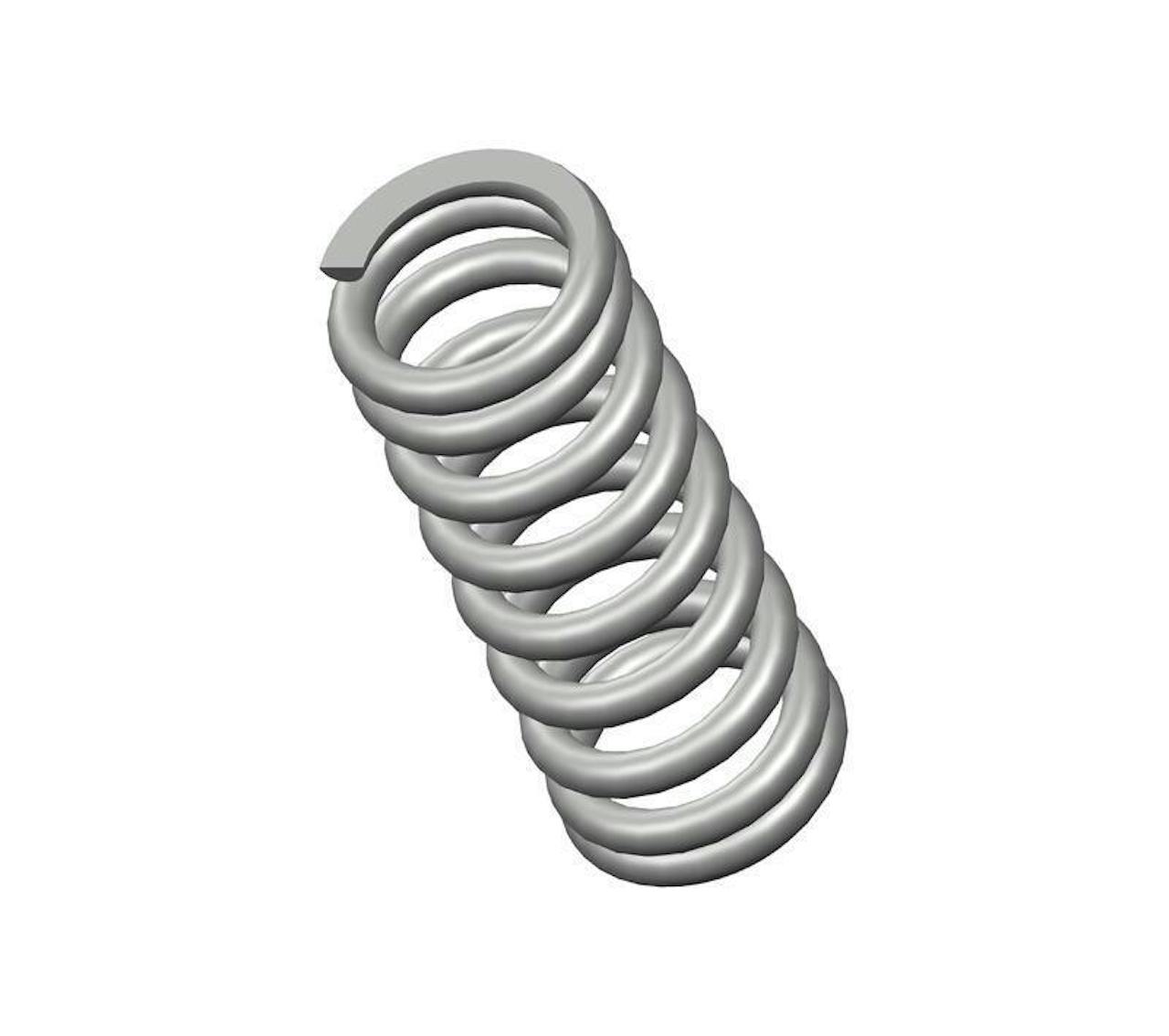

71608CS - 1.25" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 9 coils and closed & ground ends. This spring features an O.D. of 0.48", and an I.D. of 0.332".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71608
Ends Closed & Ground
Finish None
Free Length 1.25 in
Inside Diameter 0.332 in
Material Music Wire
Outside Diameter 0.48 in
Part Type Standard
Rate 92 lbs/in
SKU 71608CS
Solid Length 0.67 in
Suggested Max Deflection 0.42 in
Suggested Max Load 39 lbf
Total Coils 9
Wire Diameter 0.074 in
The 71608CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.074" diameter music wire, the 71608 spring design exhibits reliable strength across its 9 active coils, withstanding repeated compression cycles with a maximum load of 39 lbf without succumbing to fatigue.

We manufacture the 71608 design to provide a compression spring that is 1.25" long at rest and provides a consistent rate of 92 lbs/in along its recommended maximum of 0.42" deflection. For best results, your application should fully accommodate the inner (0.332") and outer (0.48") diameters of this spring and be designed for its closed & ground end configuration.
