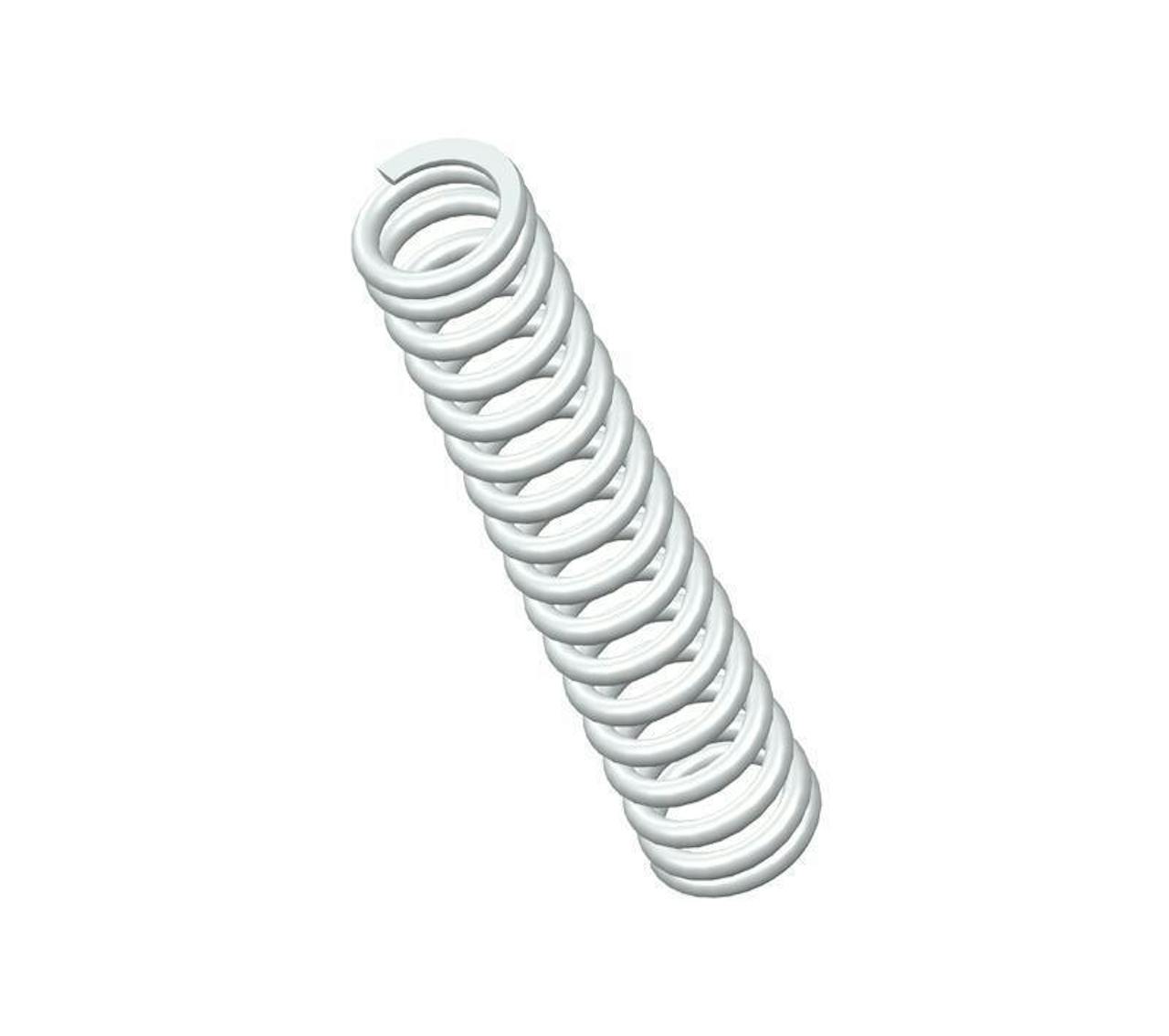

71598SCS - 2.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 16.8 coils and closed & ground ends. This spring features an O.D. of 0.48", and an I.D. of 0.336".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71598S
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 0.336 in
Material 302/304 Stainless Steel
Outside Diameter 0.48 in
Part Type Standard
Rate 33 lbs/in
SKU 71598SCS
Solid Length 1.21 in
Suggested Max Deflection 0.73 in
Suggested Max Load 24 lbf
Total Coils 16.8
Wire Diameter 0.072 in
The 71598S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 71598SCS compression spring is designed with a free length of 2.5" total of 16.8 coils, and a rate of 39 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 71598S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
