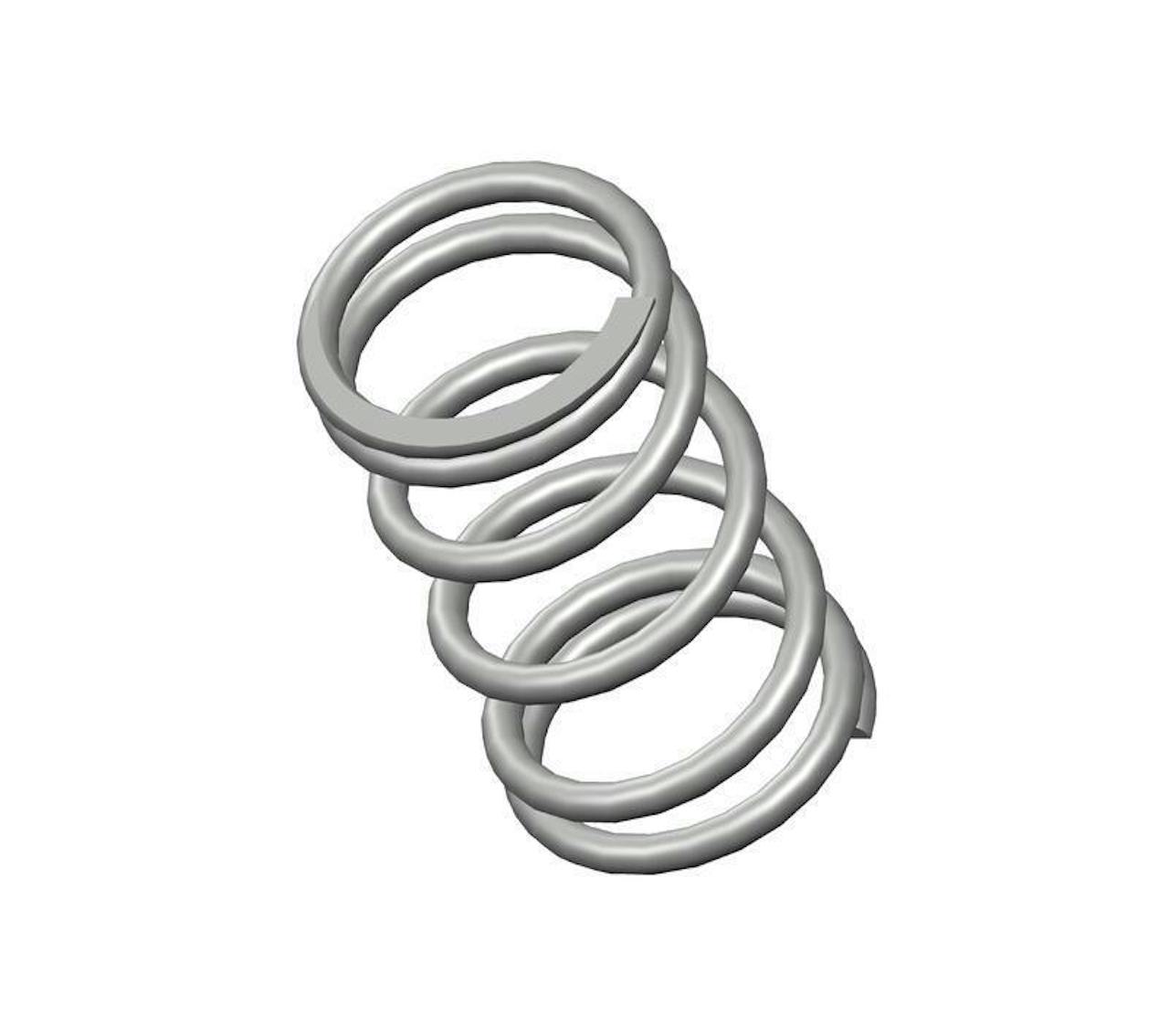

71521CS - 0.88" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 6 coils and closed & ground ends. This spring features an O.D. of 0.48", and an I.D. of 0.378".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 71521 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.378 in |
| Material | Music Wire |
| Outside Diameter | 0.48 in |
| Part Type | Standard |
| Rate | 30 lbs/in |
| SKU | 71521CS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 14 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 71521 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 9.6 mm |
| Material | Music Wire |
| Outside Diameter | 12.19 mm |
| Part Type | Standard |
| Rate | 5.25 N/mm |
| SKU | 71521CS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 62.27 N |
| Total Coils | 6 |
| Wire Diameter | 1.3 mm |
The 71521CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.051" diameter music wire, the 71521 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 14 lbf without succumbing to fatigue.
We manufacture the 71521 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 30 lbs/in along its recommended maximum of 0.45" deflection. For best results, your application should fully accommodate the inner (0.378") and outer (0.48") diameters of this spring and be designed for its closed & ground end configuration.
