Century Spring

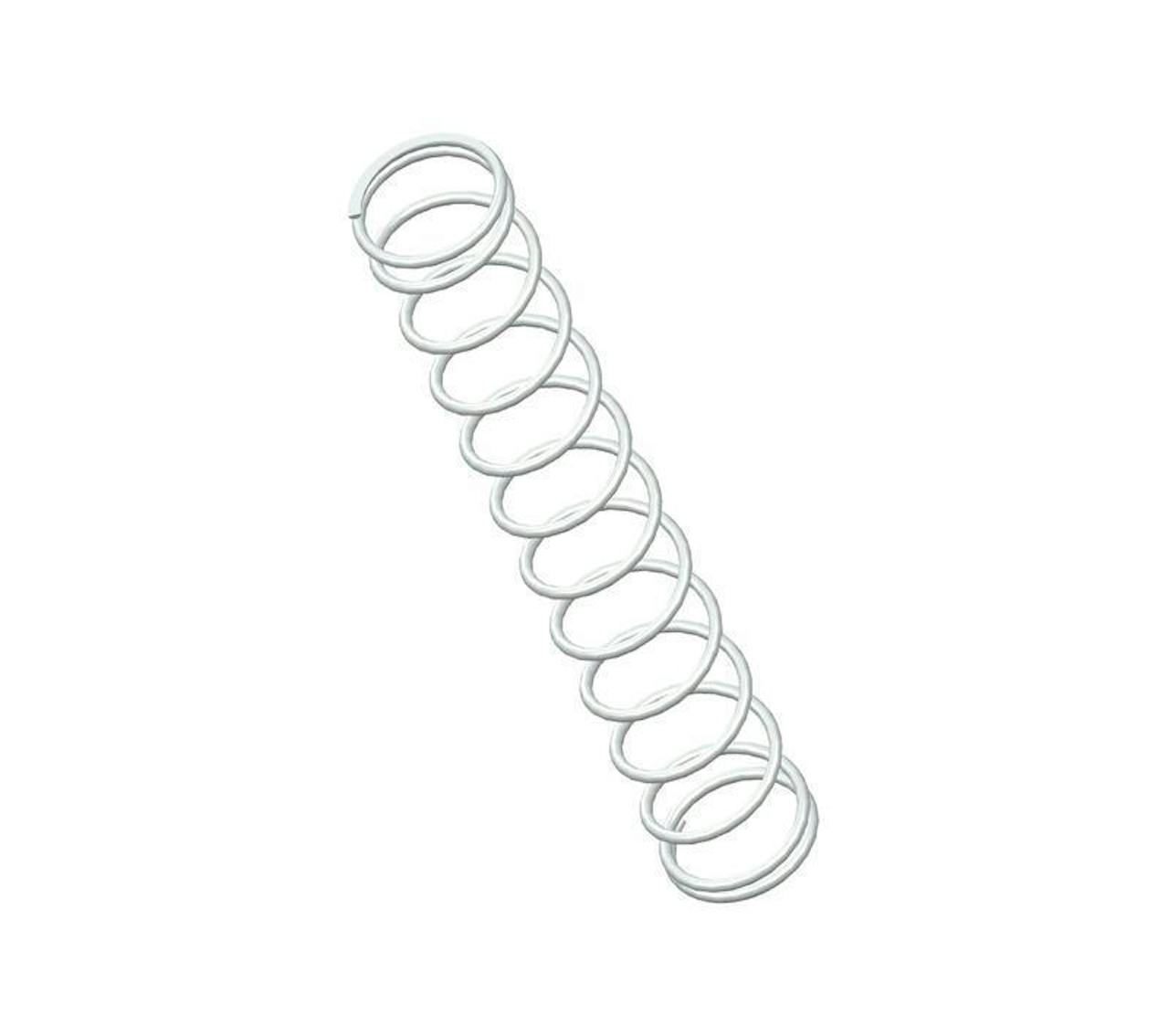

71489SCS - 3" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 13.1 coils and closed & ground ends. This spring features an O.D. of 0.48", and an I.D. of 0.404".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71489S
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 0.404 in
Material 302/304 Stainless Steel
Outside Diameter 0.48 in
Part Type Standard
Rate 2.6 lbs/in
SKU 71489SCS
Solid Length 0.5 in
Suggested Max Deflection 1.6 in
Suggested Max Load 4.2 lbf
Total Coils 13.1
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71489S
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 10.26 mm
Material 302/304 Stainless Steel
Outside Diameter 12.19 mm
Part Type Standard
Rate 0.46 N/mm
SKU 71489SCS
Solid Length 12.7 mm
Suggested Max Deflection 40.64 mm
Suggested Max Load 18.68 N
Total Coils 13.1
Wire Diameter 0.97 mm
The 71489SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.038" diameter 302/304 stainless steel, the 71489S spring design exhibits reliable strength across its 13.1 active coils, withstanding repeated compression cycles with a maximum load of 4.2 lbf without succumbing to fatigue.

We manufacture the 71489S design to provide a compression spring that is 3" long at rest and provides a consistent rate of 2.6 lbs/in along its recommended maximum of 1.6" deflection. For best results, your application should fully accommodate the inner (0.404") and outer (0.48") diameters of this spring and be designed for its closed & ground end configuration.
