71442SCS - 2" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

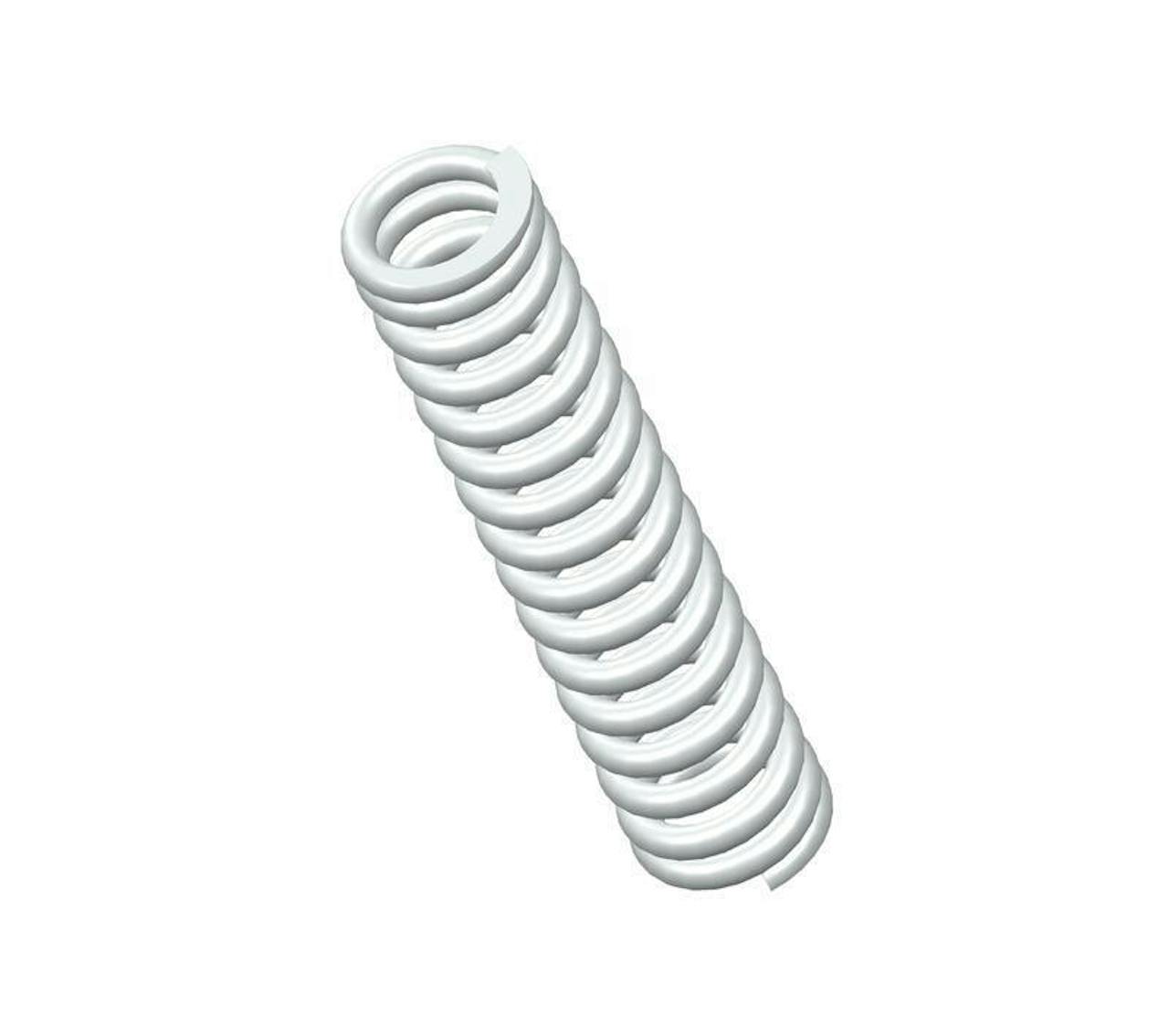

Compression spring manufactured from 302/304 stainless steel with 16.3 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.276".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 71442S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2 in |
| Inside Diameter | 0.276 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 55 lbs/in |
| SKU | 71442SCS |
| Solid Length | 1.17 in |
| Suggested Max Deflection | 0.5 in |
| Suggested Max Load | 27 lbf |
| Total Coils | 16.3 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 71442S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 50.8 mm |
| Inside Diameter | 7.01 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 9.63 N/mm |
| SKU | 71442SCS |
| Solid Length | 29.72 mm |
| Suggested Max Deflection | 12.7 mm |
| Suggested Max Load | 120.1 N |
| Total Coils | 16.3 |
| Wire Diameter | 1.83 mm |
The 71442SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter 302/304 stainless steel, the 71442S spring design exhibits reliable strength across its 16.3 active coils, withstanding repeated compression cycles with a maximum load of 27 lbf without succumbing to fatigue.
We manufacture the 71442S design to provide a compression spring that is 2" long at rest and provides a consistent rate of 55 lbs/in along its recommended maximum of 0.5" deflection. For best results, your application should fully accommodate the inner (0.276") and outer (0.42") diameters of this spring and be designed for its closed & ground end configuration.
