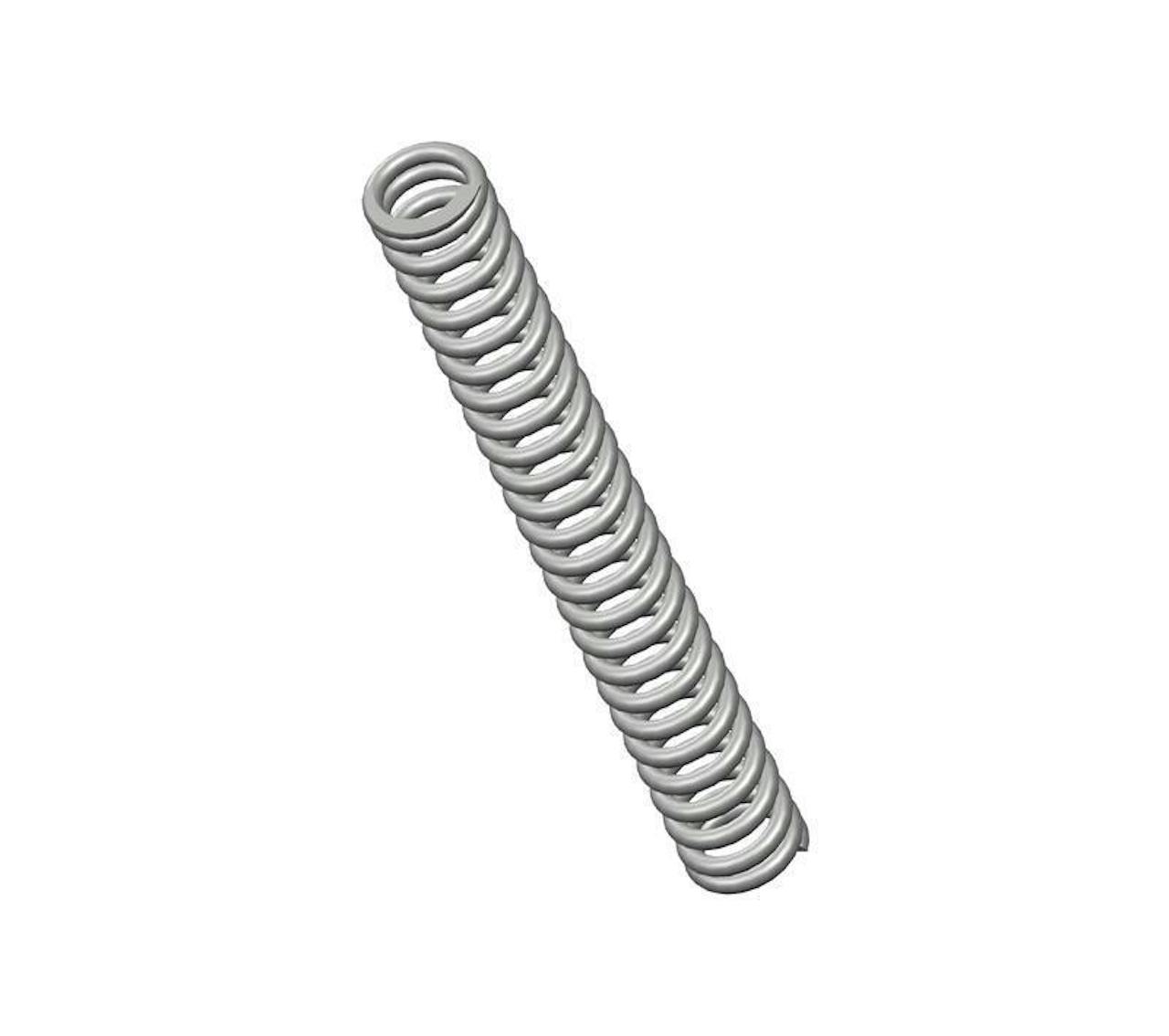

71280CS - 3" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 26 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.242".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71280
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 0.242 in
Material Music Wire
Outside Diameter 0.36 in
Part Type Standard
Rate 27 lbs/in
SKU 71280CS
Solid Length 1.53 in
Suggested Max Deflection 1 in
Suggested Max Load 27 lbf
Total Coils 26
Wire Diameter 0.059 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71280
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 6.15 mm
Material Music Wire
Outside Diameter 9.14 mm
Part Type Standard
Rate 4.73 N/mm
SKU 71280CS
Solid Length 38.86 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 120.1 N
Total Coils 26
Wire Diameter 1.5 mm
The compression spring 71280CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 71280 compression spring design exhibits exceptional tensile strength and resilience.

The 71280 design is manufactured with a free length of 3", with an outer diameter of 0.36", an inner diameter of 0.242", and a total of 26 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.

The 71280CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71280 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
