Century Spring

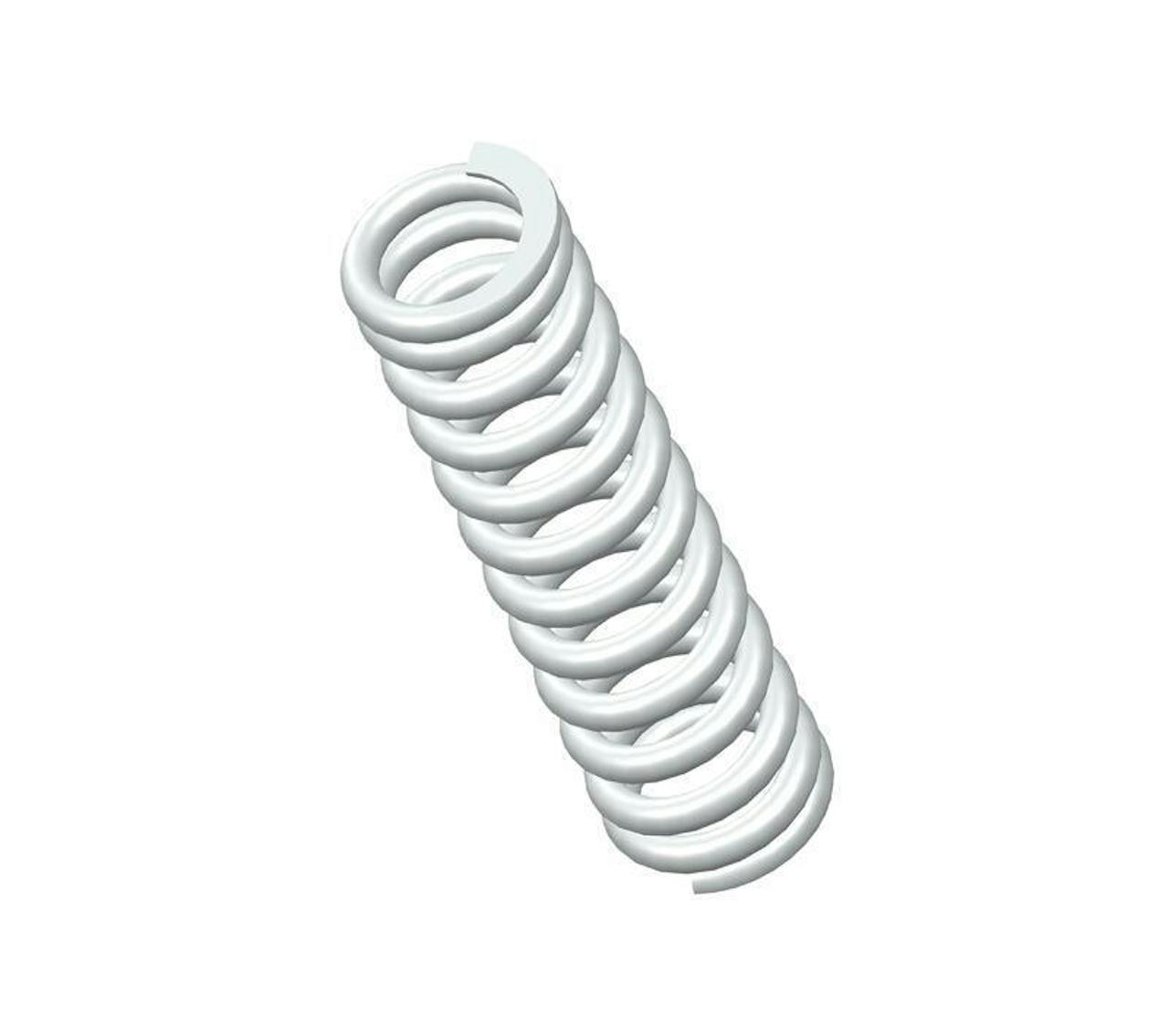

71273SCS - 1.38" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 12.5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.242".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71273S
Ends Closed & Ground
Finish None
Free Length 1.38 in
Inside Diameter 0.242 in
Material 302/304 Stainless Steel
Outside Diameter 0.36 in
Part Type Standard
Rate 52 lbs/in
SKU 71273SCS
Solid Length 0.74 in
Suggested Max Deflection 0.36 in
Suggested Max Load 18 lbf
Total Coils 12.5
Wire Diameter 0.059 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71273S
Ends Closed & Ground
Finish None
Free Length 35.05 mm
Inside Diameter 6.15 mm
Material 302/304 Stainless Steel
Outside Diameter 9.14 mm
Part Type Standard
Rate 9.11 N/mm
SKU 71273SCS
Solid Length 18.8 mm
Suggested Max Deflection 9.14 mm
Suggested Max Load 80.06 N
Total Coils 12.5
Wire Diameter 1.5 mm
The 71273SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.059" diameter 302/304 stainless steel, the 71273S spring design exhibits reliable strength across its 12.5 active coils, withstanding repeated compression cycles with a maximum load of 18 lbf without succumbing to fatigue.

We manufacture the 71273S design to provide a compression spring that is 1.38" long at rest and provides a consistent rate of 52 lbs/in along its recommended maximum of 0.36" deflection. For best results, your application should fully accommodate the inner (0.242") and outer (0.36") diameters of this spring and be designed for its closed & ground end configuration.
