Century Spring

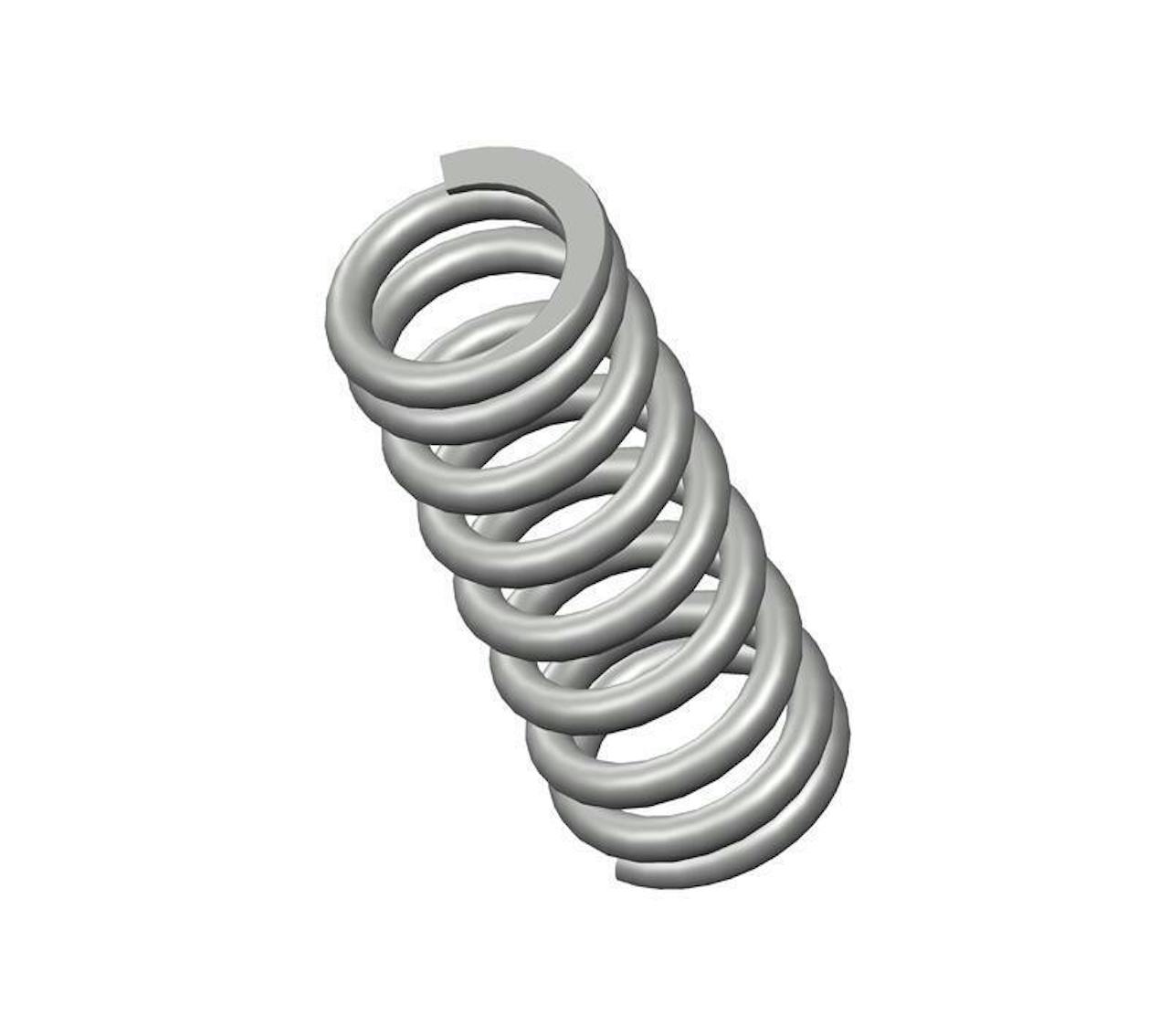

71248CS - 0.94" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 8.63 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.25".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71248
Ends Closed & Ground
Finish None
Free Length 0.94 in
Inside Diameter 0.25 in
Material Music Wire
Outside Diameter 0.36 in
Part Type Standard
Rate 70 lbs/in
SKU 71248CS
Solid Length 0.47 in
Suggested Max Deflection 0.32 in
Suggested Max Load 22 lbf
Total Coils 8.63
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71248
Ends Closed & Ground
Finish None
Free Length 23.88 mm
Inside Diameter 6.35 mm
Material Music Wire
Outside Diameter 9.14 mm
Part Type Standard
Rate 12.26 N/mm
SKU 71248CS
Solid Length 11.94 mm
Suggested Max Deflection 8.13 mm
Suggested Max Load 97.86 N
Total Coils 8.63
Wire Diameter 1.4 mm
The 71248CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.055" diameter music wire, the 71248 spring design exhibits reliable strength across its 8.63 active coils, withstanding repeated compression cycles with a maximum load of 22 lbf without succumbing to fatigue.

We manufacture the 71248 design to provide a compression spring that is 0.94" long at rest and provides a consistent rate of 70 lbs/in along its recommended maximum of 0.32" deflection. For best results, your application should fully accommodate the inner (0.25") and outer (0.36") diameters of this spring and be designed for its closed & ground end configuration.
