71194CS - 3.25" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

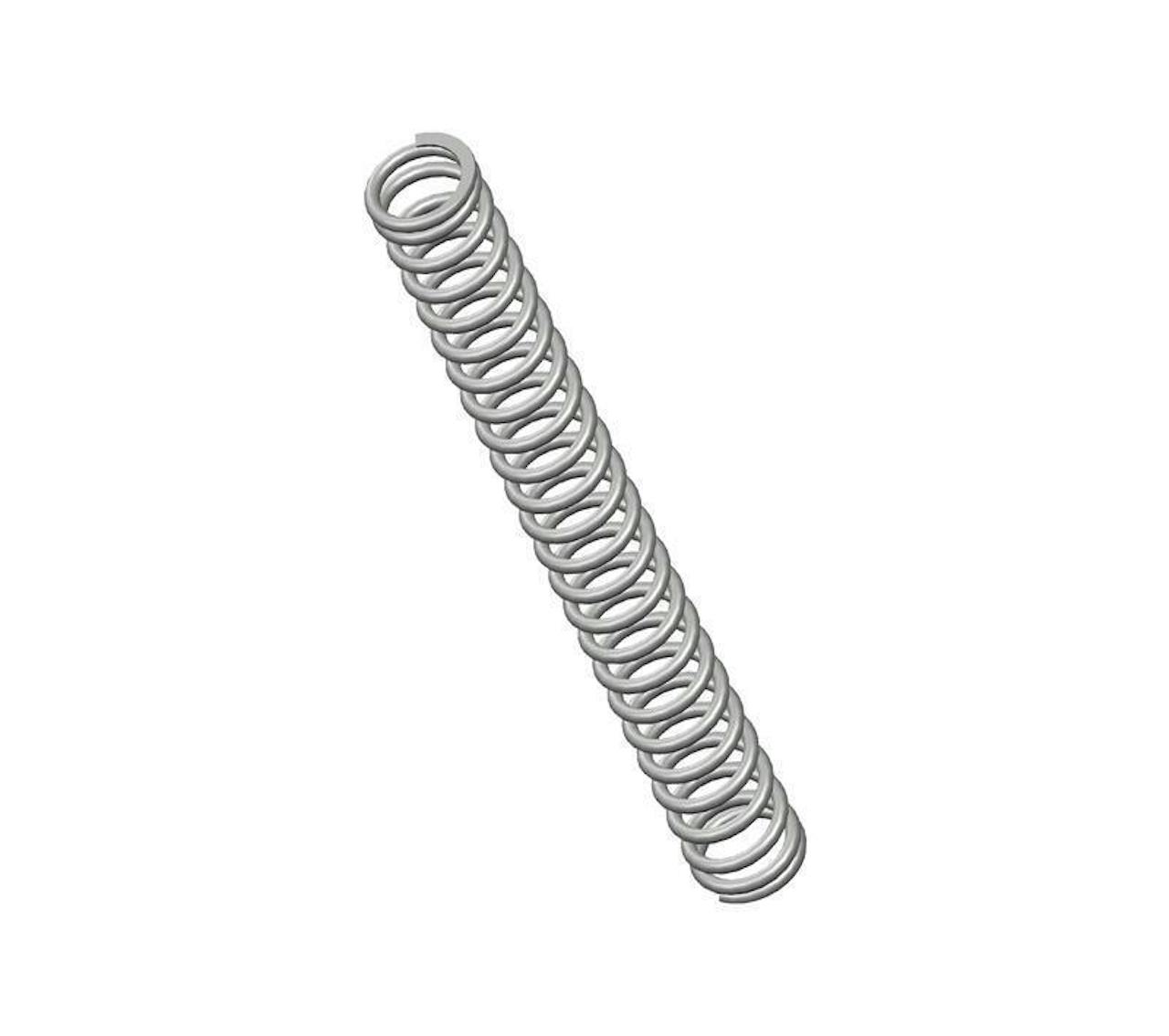

Compression spring manufactured from music wire with 24.6 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.266".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71194
Ends Closed & Ground
Finish None
Free Length 3.25 in
Inside Diameter 0.266 in
Material Music Wire
Outside Diameter 0.36 in
Part Type Standard
Rate 10 lbs/in
SKU 71194CS
Solid Length 1.16 in
Suggested Max Deflection 1.5 in
Suggested Max Load 15 lbf
Total Coils 24.6
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71194
Ends Closed & Ground
Finish None
Free Length 82.55 mm
Inside Diameter 6.76 mm
Material Music Wire
Outside Diameter 9.14 mm
Part Type Standard
Rate 1.75 N/mm
SKU 71194CS
Solid Length 29.46 mm
Suggested Max Deflection 38.1 mm
Suggested Max Load 66.72 N
Total Coils 24.6
Wire Diameter 1.19 mm
The 71194CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter music wire, the 71194 spring design exhibits reliable strength across its 24.6 active coils, withstanding repeated compression cycles with a maximum load of 15 lbf without succumbing to fatigue.

We manufacture the 71194 design to provide a compression spring that is 3.25" long at rest and provides a consistent rate of 10 lbs/in along its recommended maximum of 1.5" deflection. For best results, your application should fully accommodate the inner (0.266") and outer (0.36") diameters of this spring and be designed for its closed & ground end configuration.
