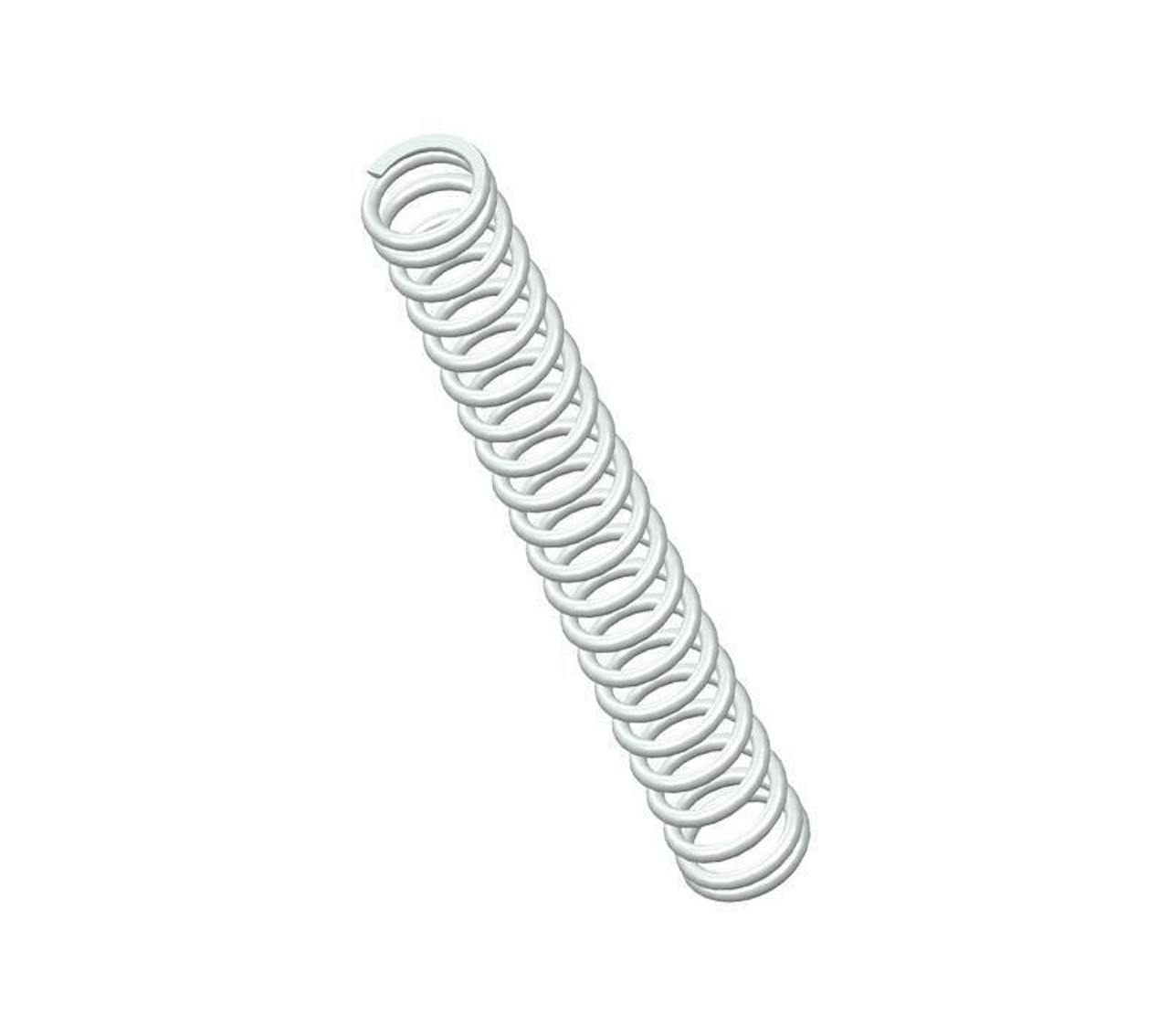

71192SCS - 2.75" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 20.9 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.266".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 71192S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.75 in |
| Inside Diameter | 0.266 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 10 lbs/in |
| SKU | 71192SCS |
| Solid Length | 0.98 in |
| Suggested Max Deflection | 0.99 in |
| Suggested Max Load | 10 lbf |
| Total Coils | 20.9 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 71192S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 69.85 mm |
| Inside Diameter | 6.76 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 1.75 N/mm |
| SKU | 71192SCS |
| Solid Length | 24.89 mm |
| Suggested Max Deflection | 25.15 mm |
| Suggested Max Load | 44.48 N |
| Total Coils | 20.9 |
| Wire Diameter | 1.19 mm |
The 71192SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter 302/304 stainless steel, the 71192S spring design exhibits reliable strength across its 20.9 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.
We manufacture the 71192S design to provide a compression spring that is 2.75" long at rest and provides a consistent rate of 10 lbs/in along its recommended maximum of 0.99" deflection. For best results, your application should fully accommodate the inner (0.266") and outer (0.36") diameters of this spring and be designed for its closed & ground end configuration.
