71001CS - 2.25" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

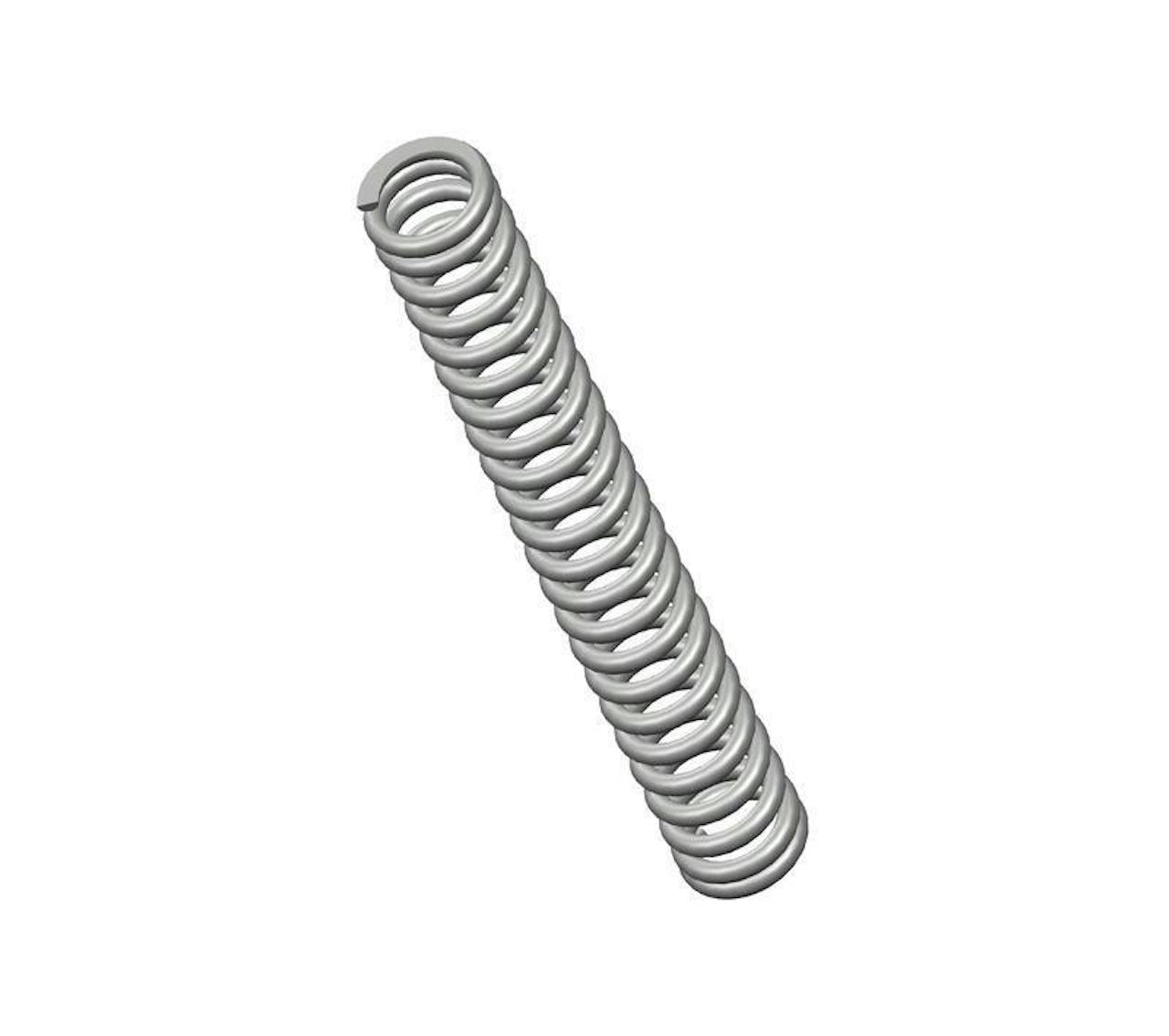

Compression spring manufactured from music wire with 23.1 coils and closed & ground ends. This spring features an O.D. of 0.3", and an I.D. of 0.2".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71001
Ends Closed & Ground
Finish None
Free Length 2.25 in
Inside Diameter 0.2 in
Material Music Wire
Outside Diameter 0.3 in
Part Type Standard
Rate 25 lbs/in
SKU 71001CS
Solid Length 1.13 in
Suggested Max Deflection 0.81 in
Suggested Max Load 20 lbf
Total Coils 23.1
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71001
Ends Closed & Ground
Finish None
Free Length 57.15 mm
Inside Diameter 5.08 mm
Material Music Wire
Outside Diameter 7.62 mm
Part Type Standard
Rate 4.38 N/mm
SKU 71001CS
Solid Length 28.7 mm
Suggested Max Deflection 20.57 mm
Suggested Max Load 88.96 N
Total Coils 23.1
Wire Diameter 1.27 mm
The 71001CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.05" diameter music wire, the 71001 spring design exhibits reliable strength across its 23.1 active coils, withstanding repeated compression cycles with a maximum load of 20 lbf without succumbing to fatigue.

We manufacture the 71001 design to provide a compression spring that is 2.25" long at rest and provides a consistent rate of 25 lbs/in along its recommended maximum of 0.81" deflection. For best results, your application should fully accommodate the inner (0.2") and outer (0.3") diameters of this spring and be designed for its closed & ground end configuration.
