Century Spring

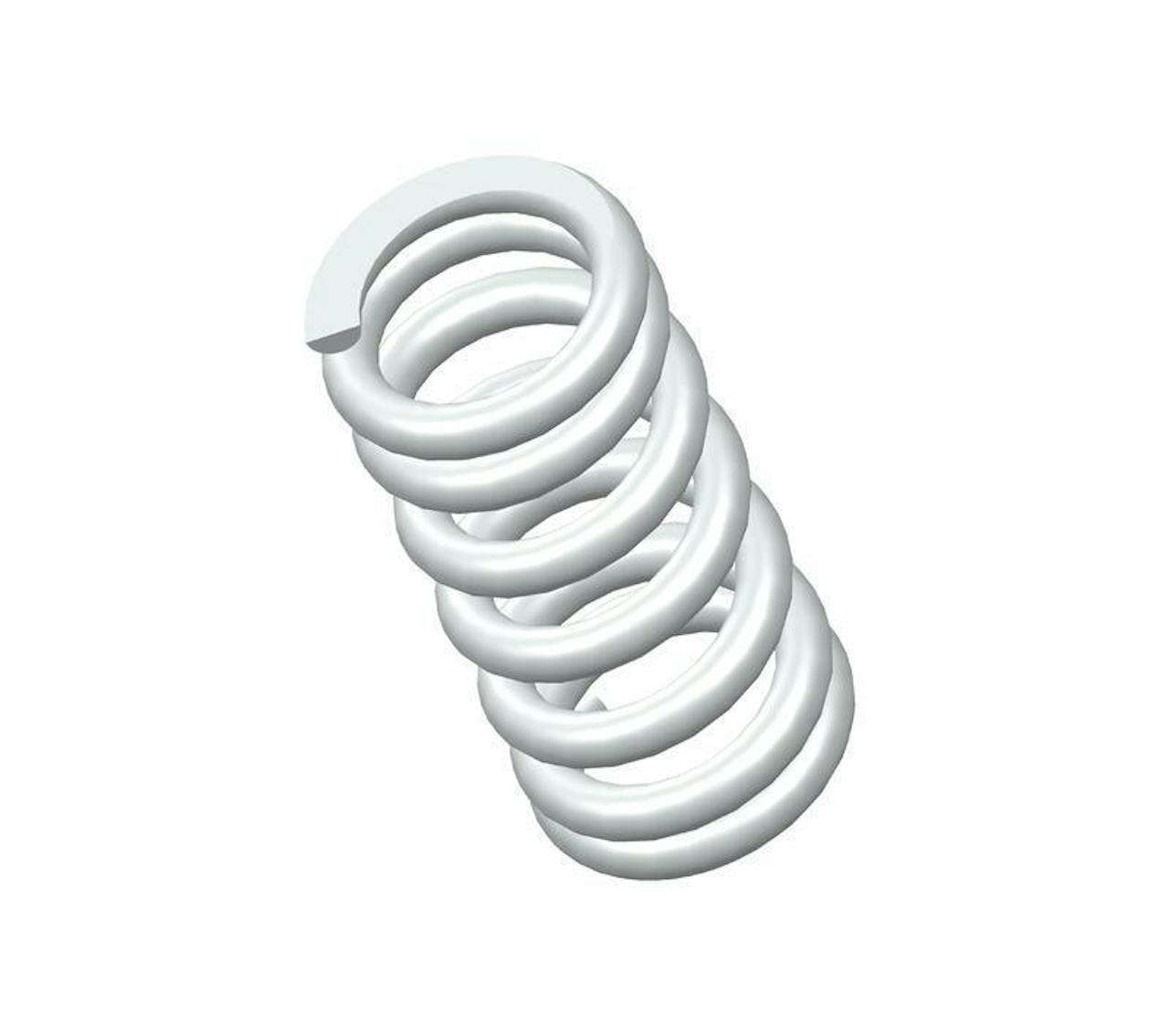

70988SCS - 0.63" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.13 coils and closed & ground ends. This spring features an O.D. of 0.3", and an I.D. of 0.2".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 70988S
Ends Closed & Ground
Finish None
Free Length 0.63 in
Inside Diameter 0.2 in
Material 302/304 Stainless Steel
Outside Diameter 0.3 in
Part Type Standard
Rate 87 lbs/in
SKU 70988SCS
Solid Length 0.35 in
Suggested Max Deflection 0.16 in
Suggested Max Load 14 lbf
Total Coils 7.13
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 70988S
Ends Closed & Ground
Finish None
Free Length 16 mm
Inside Diameter 5.08 mm
Material 302/304 Stainless Steel
Outside Diameter 7.62 mm
Part Type Standard
Rate 15.23 N/mm
SKU 70988SCS
Solid Length 8.89 mm
Suggested Max Deflection 4.06 mm
Suggested Max Load 62.27 N
Total Coils 7.13
Wire Diameter 1.27 mm
The compression spring 70988SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 70988S compression spring design exhibits exceptional tensile strength and resilience.

The 70988S design is manufactured with a free length of 0.63", with an outer diameter of 0.3", an inner diameter of 0.2", and a total of 7.13 coils, expertly designed to deliver consistent compression characteristics including a rate of 87 lbs/in.

The 70988SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 70988S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
