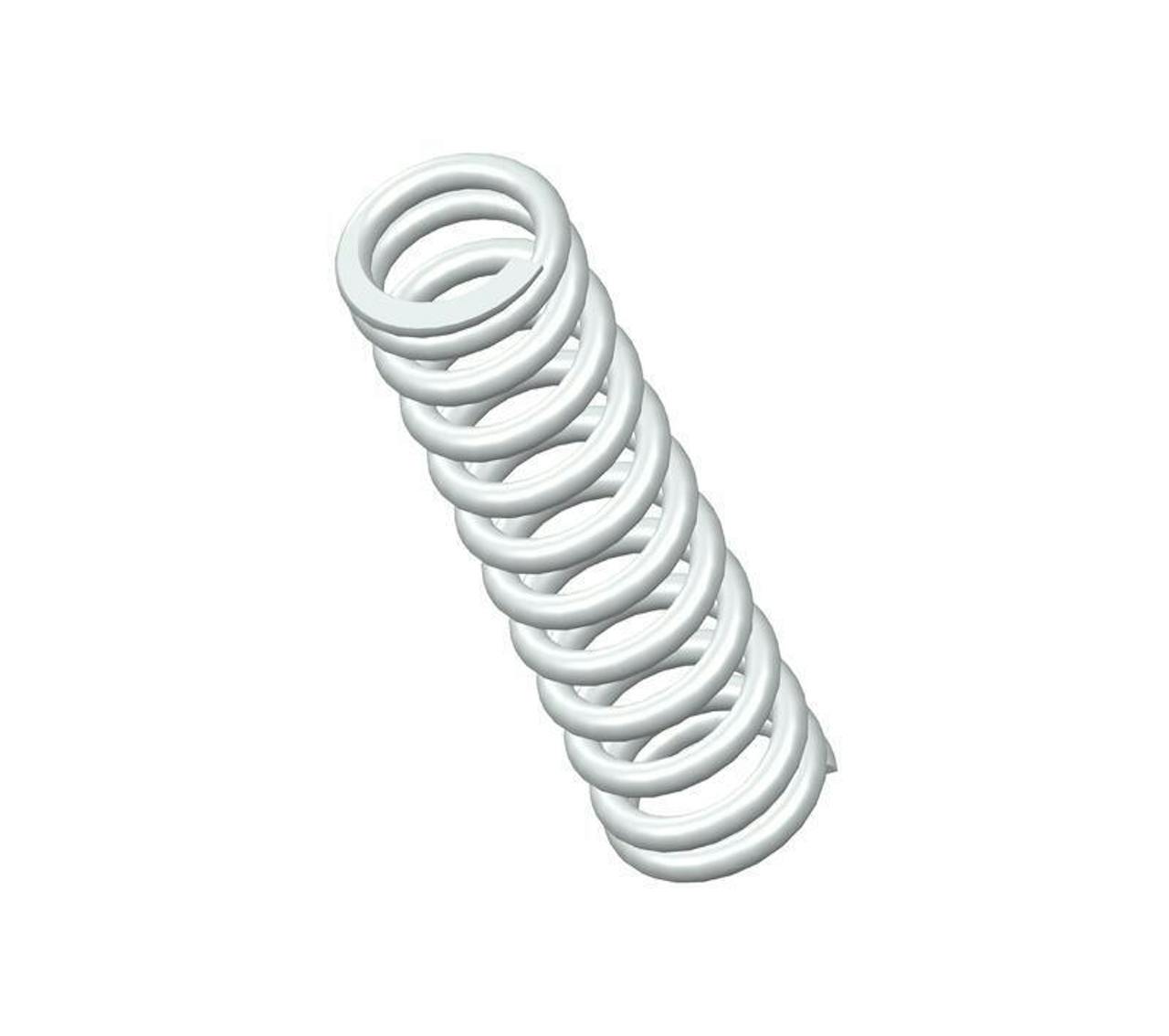

70955SCS - 1.13" 302/304 Stainless Steel Compression Spring
Inventory Status |
|
---|---|
Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 11.9 coils and closed & ground ends. This spring features an O.D. of 0.3", and an I.D. of 0.21".


Label | Value |
---|---|
Brand | Century Spring |
Display Name | 70955S |
Ends | Closed & Ground |
Finish | None |
Free Length | 1.13 in |
Inside Diameter | 0.21 in |
Material | 302/304 Stainless Steel |
Outside Diameter | 0.3 in |
Part Type | Standard |
Rate | 31 lbs/in |
SKU | 70955SCS |
Solid Length | 0.53 in |
Suggested Max Deflection | 0.35 in |
Suggested Max Load | 11 lbf |
Total Coils | 11.9 |
Wire Diameter | 0.045 in |
Label | Value |
---|---|
Brand | Century Spring |
Display Name | 70955S |
Ends | Closed & Ground |
Finish | None |
Free Length | 28.7 mm |
Inside Diameter | 5.33 mm |
Material | 302/304 Stainless Steel |
Outside Diameter | 7.62 mm |
Part Type | Standard |
Rate | 5.43 N/mm |
SKU | 70955SCS |
Solid Length | 13.46 mm |
Suggested Max Deflection | 8.89 mm |
Suggested Max Load | 48.93 N |
Total Coils | 11.9 |
Wire Diameter | 1.14 mm |
The compression spring 70955SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 70955S compression spring design exhibits exceptional tensile strength and resilience.
The 70955S design is manufactured with a free length of 1.13", with an outer diameter of 0.3", an inner diameter of 0.21", and a total of 11.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The 70955SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 70955S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 70955S design is manufactured with a free length of 1.13", with an outer diameter of 0.3", an inner diameter of 0.21", and a total of 11.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The 70955SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 70955S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
