Century Spring

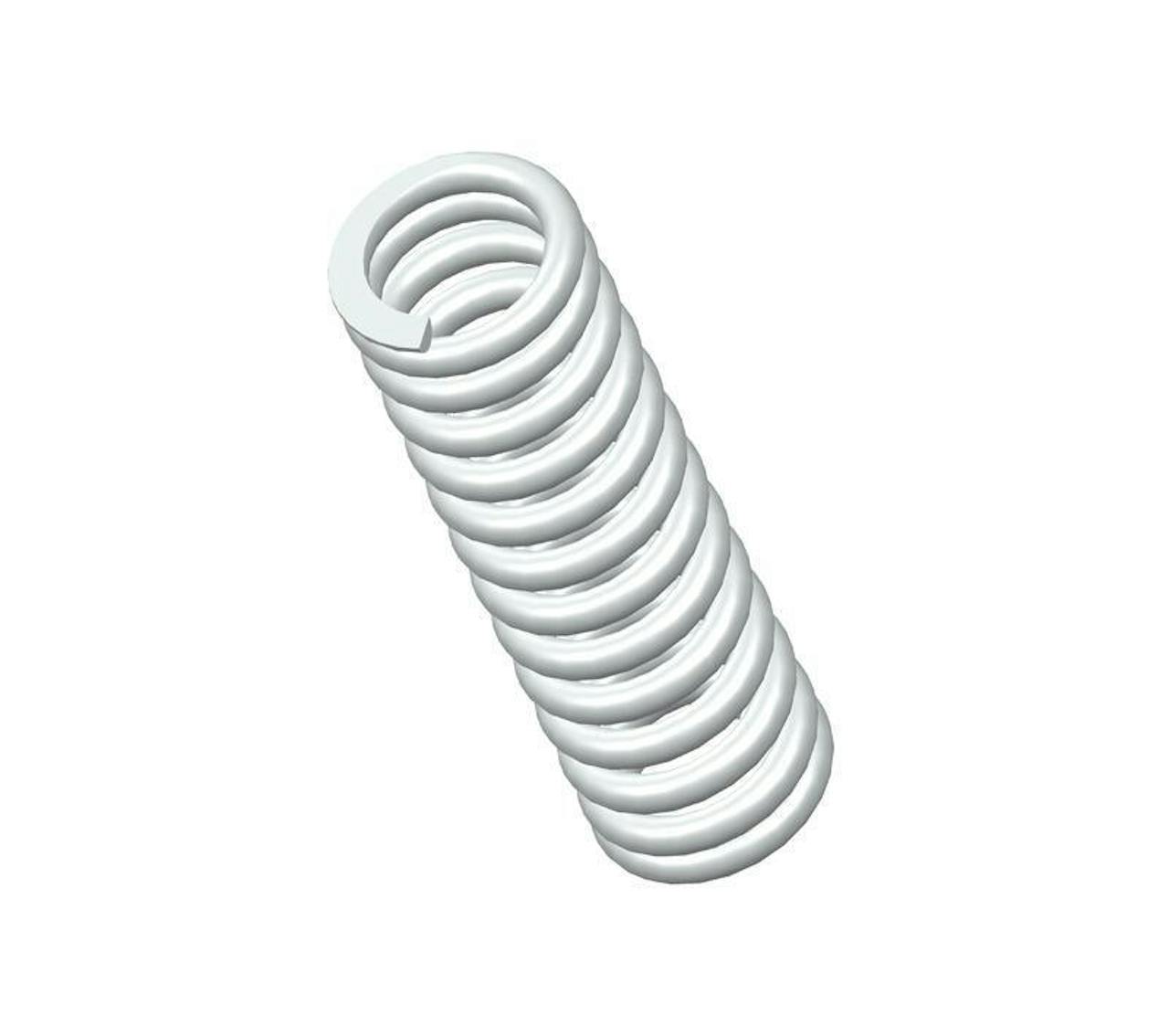

7058CS - 5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 13.5 coils and closed ends. This spring features an O.D. of 1.5", and an I.D. of 1.032".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 7058
Ends Closed
Finish None
Free Length 5 in
Inside Diameter 1.032 in
Material 302/304 Stainless Steel
Outside Diameter 1.5 in
Part Type Standard
Rate 161 lbs/in
SKU 7058CS
Solid Length 3.39 in
Suggested Max Deflection 1.2 in
Suggested Max Load 192 lbf
Total Coils 13.5
Wire Diameter 0.234 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 7058
Ends Closed
Finish None
Free Length 127 mm
Inside Diameter 26.21 mm
Material 302/304 Stainless Steel
Outside Diameter 38.1 mm
Part Type Standard
Rate 28.19 N/mm
SKU 7058CS
Solid Length 86.11 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 854.02 N
Total Coils 13.5
Wire Diameter 5.94 mm
The 7058 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 7058CS compression spring is designed with a free length of 0.88" total of 8.88 coils, and a rate of 4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 7058 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
