Century Spring

70539CS - 0.44" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

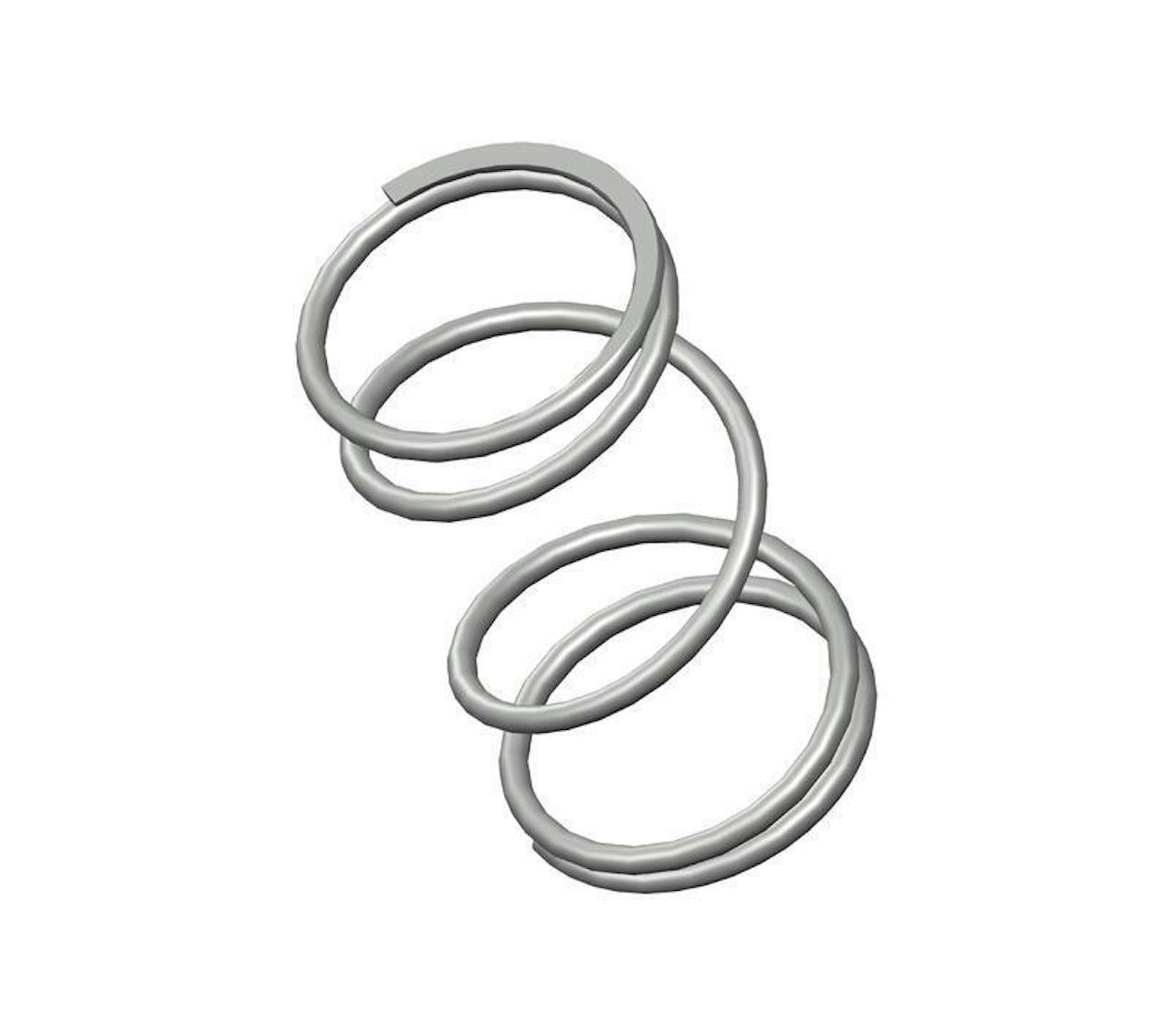

Compression spring manufactured from music wire with 4.75 coils and closed & ground ends. This spring features an O.D. of 0.24", and an I.D. of 0.204".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 70539
Ends Closed & Ground
Finish None
Free Length 0.44 in
Inside Diameter 0.204 in
Material Music Wire
Outside Diameter 0.24 in
Part Type Standard
Rate 5 lbs/in
SKU 70539CS
Solid Length 0.09 in
Suggested Max Deflection 0.29 in
Suggested Max Load 1.5 lbf
Total Coils 4.75
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 70539
Ends Closed & Ground
Finish None
Free Length 11.18 mm
Inside Diameter 5.18 mm
Material Music Wire
Outside Diameter 6.1 mm
Part Type Standard
Rate 0.88 N/mm
SKU 70539CS
Solid Length 2.29 mm
Suggested Max Deflection 7.37 mm
Suggested Max Load 6.67 N
Total Coils 4.75
Wire Diameter 0.46 mm
The 70539CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.018" diameter music wire, the 70539 spring design exhibits reliable strength across its 4.75 active coils, withstanding repeated compression cycles with a maximum load of 1.5 lbf without succumbing to fatigue.

We manufacture the 70539 design to provide a compression spring that is 0.44" long at rest and provides a consistent rate of 5 lbs/in along its recommended maximum of 0.29" deflection. For best results, your application should fully accommodate the inner (0.204") and outer (0.24") diameters of this spring and be designed for its closed & ground end configuration.
