70486CS - 0.88" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

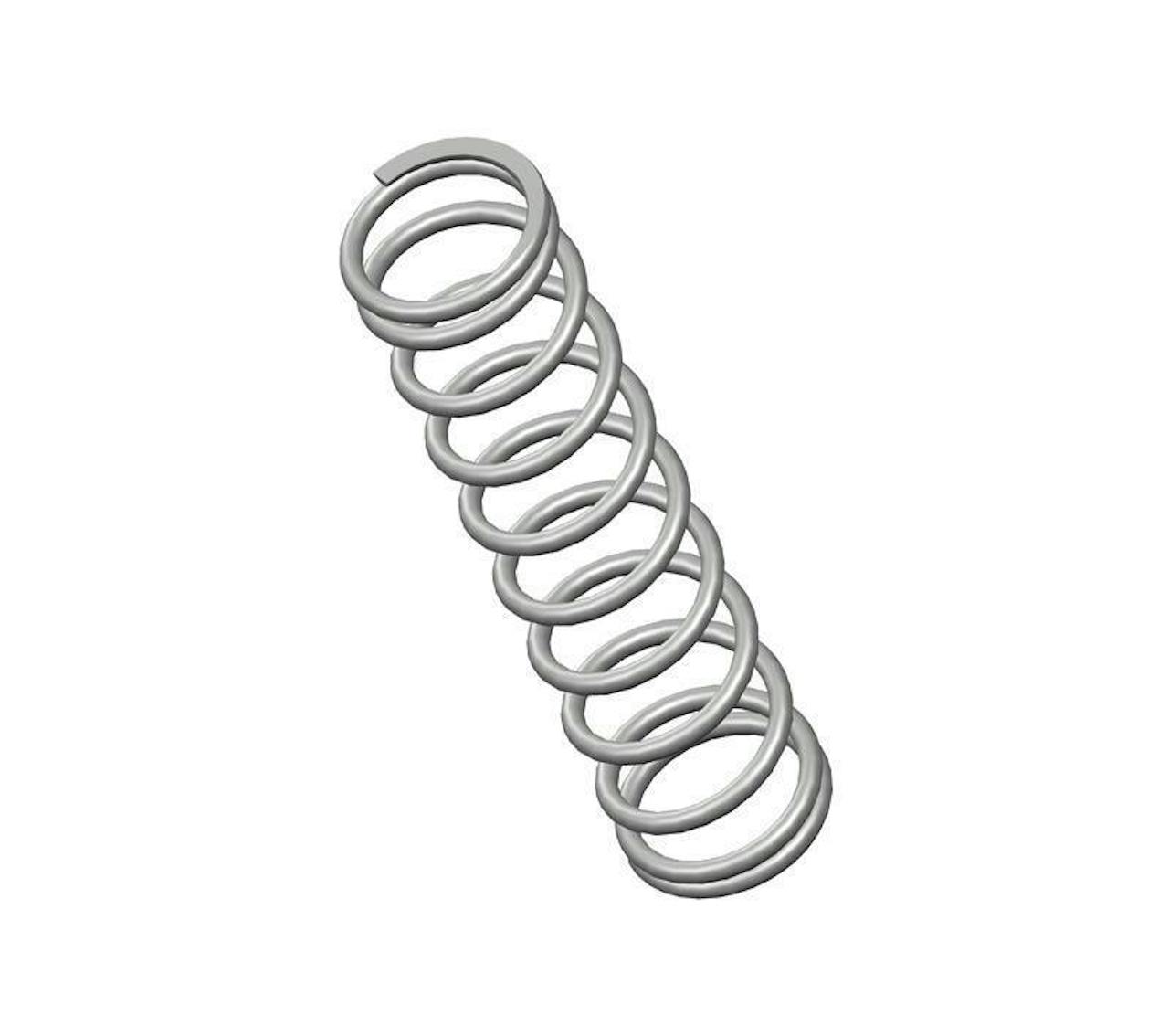

Compression spring manufactured from music wire with 10.8 coils and closed & ground ends. This spring features an O.D. of 0.21", and an I.D. of 0.166".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 70486 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.166 in |
| Material | Music Wire |
| Outside Diameter | 0.21 in |
| Part Type | Standard |
| Rate | 5.8 lbs/in |
| SKU | 70486CS |
| Solid Length | 0.24 in |
| Suggested Max Deflection | 0.52 in |
| Suggested Max Load | 3 lbf |
| Total Coils | 10.8 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 70486 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 4.22 mm |
| Material | Music Wire |
| Outside Diameter | 5.33 mm |
| Part Type | Standard |
| Rate | 1.02 N/mm |
| SKU | 70486CS |
| Solid Length | 6.1 mm |
| Suggested Max Deflection | 13.21 mm |
| Suggested Max Load | 13.34 N |
| Total Coils | 10.8 |
| Wire Diameter | 0.56 mm |
The compression spring 70486CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 70486 compression spring design exhibits exceptional tensile strength and resilience.
The 70486 design is manufactured with a free length of 0.88", with an outer diameter of 0.21", an inner diameter of 0.166", and a total of 10.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.8 lbs/in.
The 70486CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 70486 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 70486 design is manufactured with a free length of 0.88", with an outer diameter of 0.21", an inner diameter of 0.166", and a total of 10.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.8 lbs/in.
The 70486CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 70486 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
